M-Audio Flying Calf [5/12] Installation and typical setup

7. S/PDIF Out: This female RCA jack outputs a standard

S/PDIF digital audio signal. The S/PDIF signal is "stereo,"

containing both left channel and right channel audio data.

The S/PDIF data rate will be determined by the Sample Rate

selector button on the front of the Flying Calf.

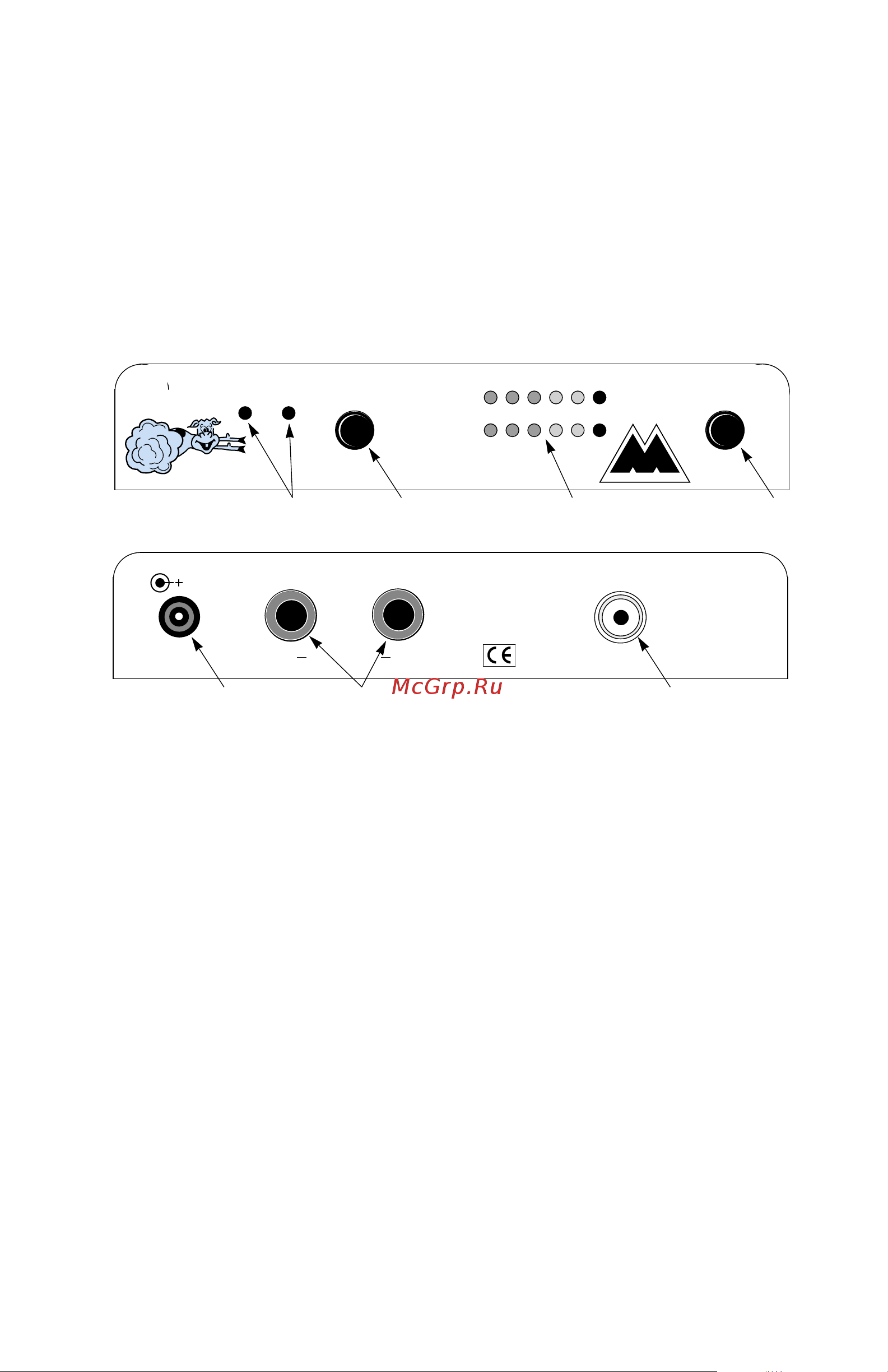

Panels - Fig. 1

Installation and Typical Setup

Your Flying Calf box should contain this user manual, a power

adapter and the Flying Calf unit itself. Remove the Flying Calf

and power adapter from the box and plug one end of the power

adapter into the Flying Calf's power jack. With the Flying Calf’s

power button in the “out” position (power off), plug the other

end of the power adapter into a wall socket or power strip. Verify

that the Flying Calf and any other devices you plan to connect to

it, are powered off. Now connect your S/PDIF and analog audio

cables to the Flying Calf.

NOTE: For best results, use a good-quality S/PDIF cable. The

cable should be coaxial with 75-ohm impedance. For example, a

good quality video dubbing cable has these characteristics.

S/PDIF OUT

ANALOG IN RL

FLYING CALF A/D

20 BIT S/PDIF A/D CONVERTER

POWERSAMPLE RATE INPUT LEVEL

™

48 44.1

-60 -20 -10 -6 -3 CLIP

9 VDC

1. 2. 4.3.

5. 7.6.

AUDIO
