M-Audio Revolution 5.1 [19/36] Headphone output jack

replacing an existing audio interface with the Revolution 5.1 and that audio interface

has an analog audio cable connected internally to a CD-ROM drive, remove that

connection and re-connect it to the Revolution 5.1 CD/Aux Input.

You can set the Input level for the CD/Aux Input on the Input/Other tab of the Revolution

5.1 Control Panel. You may also set the monitor level independently for the CD/Aux input

from the Input/Other tab. See the Control Panel section for more details.

Headphone Output Jack

The rear panel of your Revolution 5.1 has a 1/8” stereo headphone output jack. You can

adjust the output level of the headphone output from the Control Panel’s Speaker Setup

tab, or from the Output Mixer tab.

Speaker Output Jacks

The rear panel of your Revolution 5.1 has three 1/8” stereo output jacks, which can be

connected to powered speakers or to the inputs on a surround sound receiver. These

jacks are designed to combine two speaker outputs into one jack, saving on space and

simplifying installation (for example, the Center/Subwoofer output is actually the output

for both the Center and the Subwoofer channels). Most multimedia speakers use 1/8”

stereo input jacks. If your speaker or receiver jacks are of the RCA type instead, you can

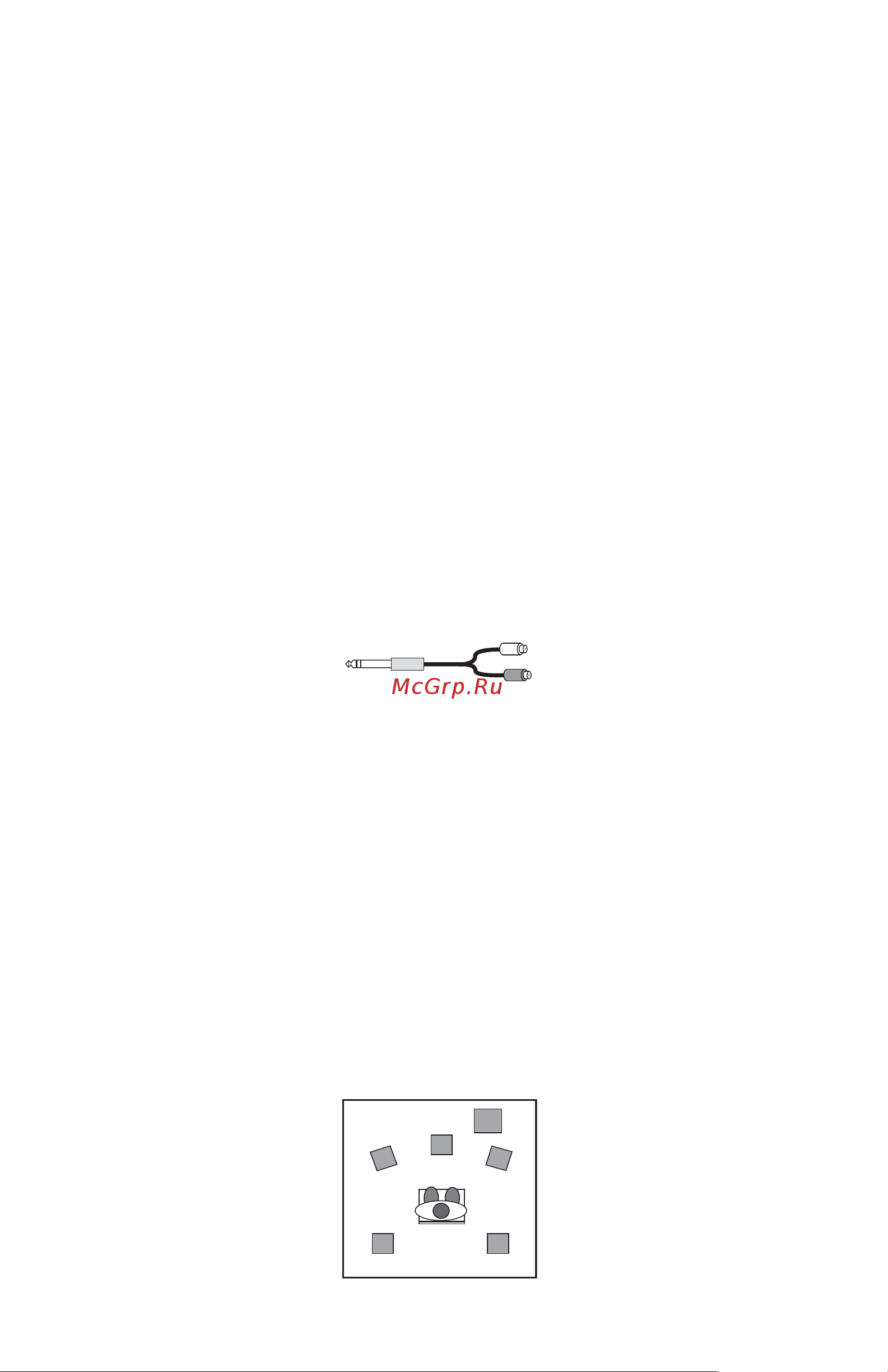

purchase a converter—like the one depicted below—at a local electronics store.

The white RCA jacks connect to the first listed channel, while the red jacks connect to

the second. For example, with the L/R Front jack, the white jack connects to the Left

speaker and the red jack connects to the Right speaker.

Note that the Revolution 5.1’s outputs produce a Line Level signal and can therefore be

connected directly to powered speaker inputs. However, if your speakers are not

self-powered, you will need to connect the Revolution 5.1’s outputs to the inputs of a

power amplifier or surround receiver and then connect its outputs to the speaker inputs.

Use the diagram which follows as a guide for placing the speakers around your

computer. Make the following speaker connections:

 Connect the L/R Front output to the Left and Right speakers.

 Connect the Center/Subwoofer output to the Center and Subwoofer speakers

(Left/Black connector for Center and Right/Orange connector for Subwoofer).

 Connect the L/R Surround output to the Left and Right Surround speakers.
