USING & ADJUSTING THE MOTOR

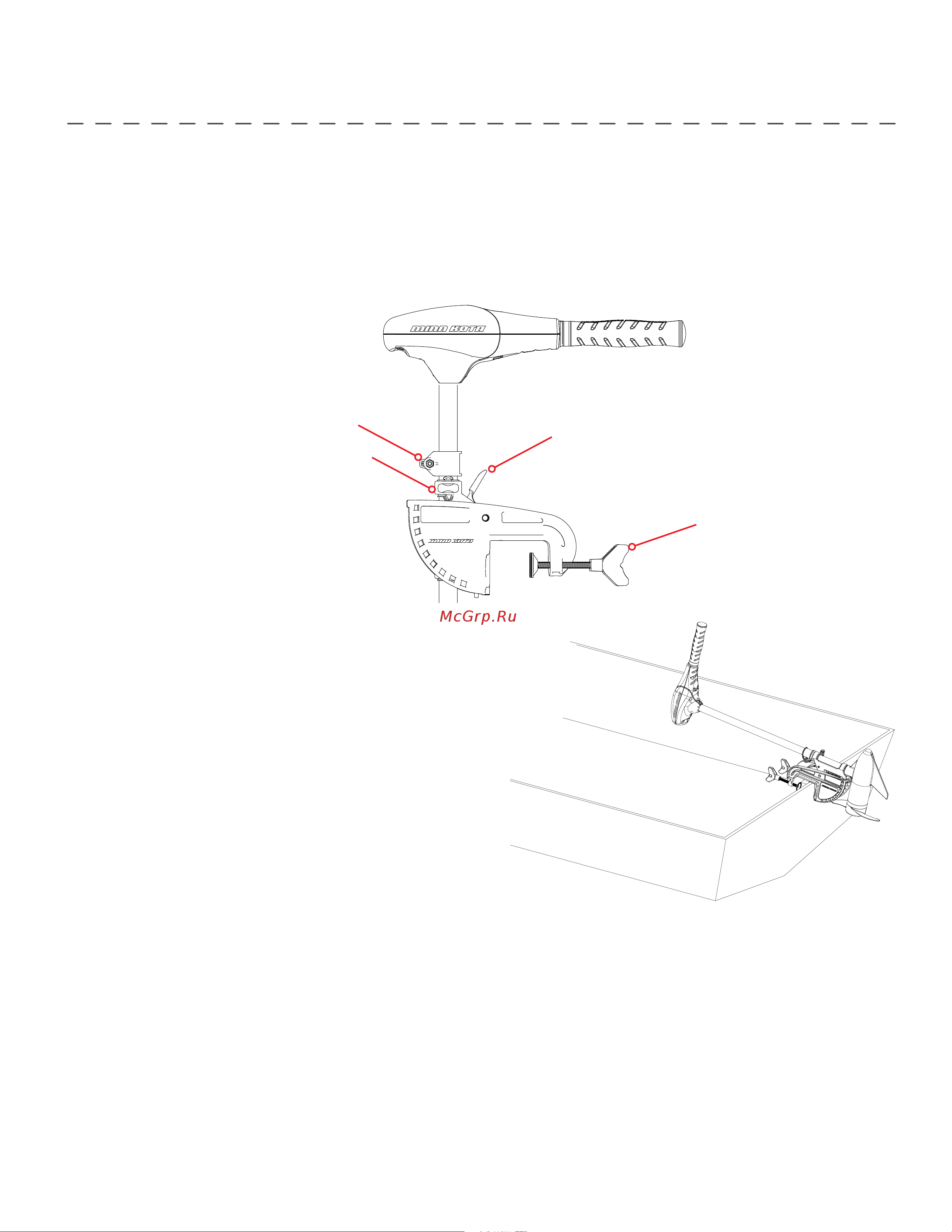

ADJUSTING THE BRACKET

You can lock your motor in a vertical position, angle it for shallow water or tilt it completely out of the water.

1. Firmly grasp the control head or composite shaft.

2. Press the tilt lever toward the shaft and hold to release the detent lock or T-bar to adjust the position of the mounting bracket.

3. Tilt to any of the positions on the mounting bracket.

4. Release the tilt lever.

2. Press and hold tilt lever.

3. Tilt motor into the boat.

4. For transport, always tilt the motor into the boat such that the

motor and prop assembly are completely out of the water and the

motor is positioned up close to the lever lock bracket.

WARNING: When raising/lowering motor or operating the

tilt mechanism, keep fi ngers clear of all hinge and pivot

points and all moving parts.
