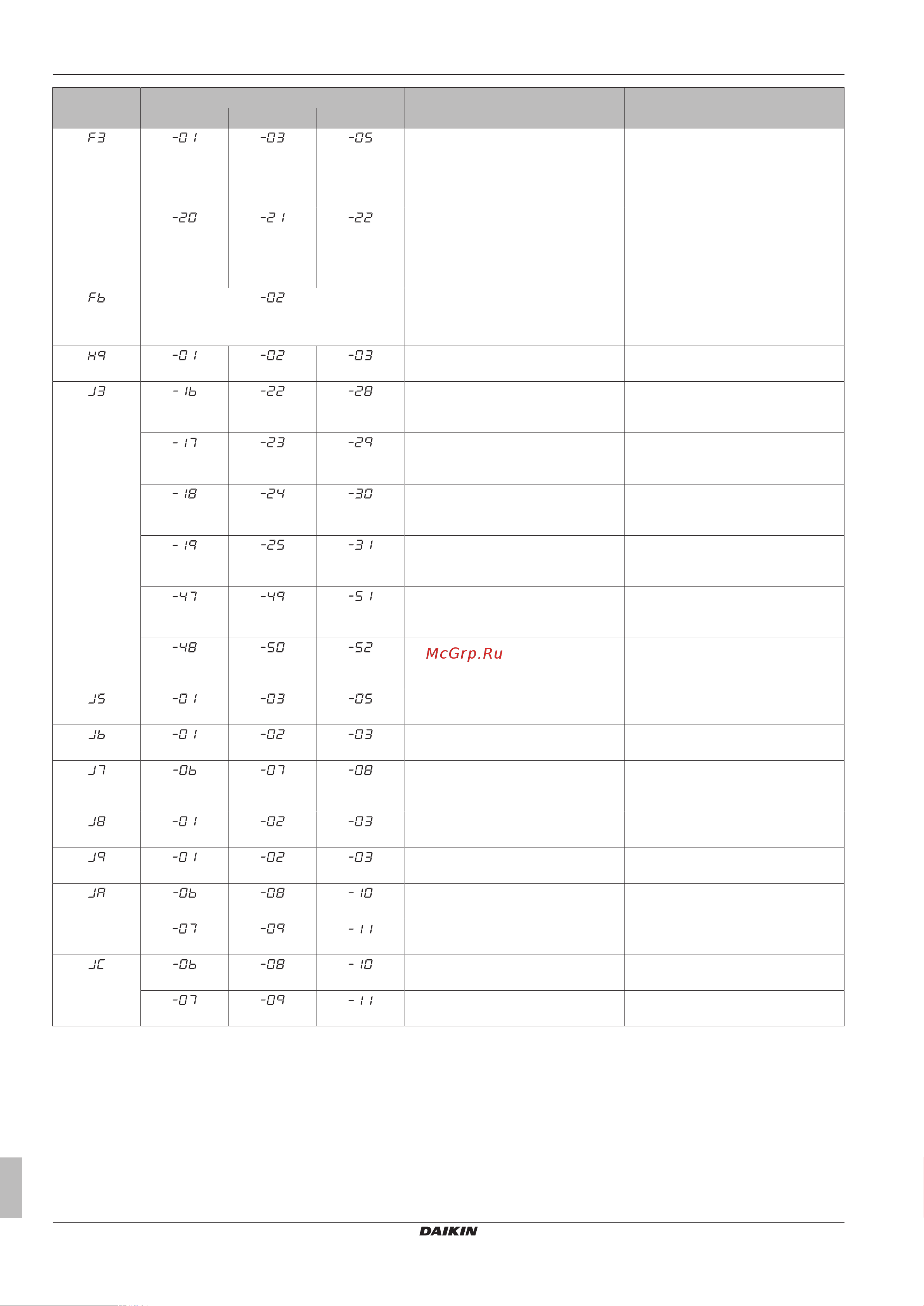

10 Troubleshooting
Installer and user reference guide
42
RXYTQ8~16T7YF
VRV IV system air conditioner
4P388989-1B – 2016.02
Main code Sub code Cause Solution
Master Slave 1 Slave 2
Discharge temperature too high
(R21T/R22T):
▪ Stop valve closed
▪ Refrigerant shortage
▪ Open stop valves.
▪ Check refrigerant amount+recharge
unit.
Compressor casing temperature too
high (R8T):
▪ Stop valve closed
▪ Refrigerant shortage
▪ Open stop valves.
▪ Check refrigerant amount+recharge
unit.
▪ Refrigerant overcharge
▪ Stop valve closed
▪ Check refrigerant amount+recharge
unit.
▪ Open stop valves.
Ambient temperature sensor
malfunction (R1T) - A1P (X18A)
Check connection on PCB or actuator.
Discharge temperature sensor
malfunction (R21T): open circuit - A1P
(X29A)
Check connection on PCB or actuator.
Discharge temperature sensor
malfunction (R21T): short circuit - A1P
(X29A)
Check connection on PCB or actuator.
Discharge temperature sensor
malfunction (R22T): open circuit - A1P
(X29A)
Check connection on PCB or actuator.
Discharge temperature sensor
malfunction (R22T): short circuit - A1P
(X29A)
Check connection on PCB or actuator.
Compressor casing temperature
sensor malfunction (R8T): open circuit
- A1P (X29A)
Check connection on PCB or actuator.
Compressor casing temperature
sensor malfunction (R8T): short circuit
- A1P (X29A)
Check connection on PCB or actuator.
Suction temperature sensor
malfunction (R3T) - A1P (X30A)
Check connection on PCB or actuator.
De-icing temperature sensor
malfunction (R7T) - A1P (X30A)
Check connection on PCB or actuator
Liquid temperature sensor (after
subcool HE) malfunction (R5T) - A1P
(X30A)
Check connection on PCB or actuator.
Liquid temperature sensor (coil)
malfunction (R4T) - A1P (X30A)
Check connection on PCB or actuator.
Gas temperature sensor (after subcool
HE) malfunction (R6T) - A1P (X30A)
Check connection on PCB or actuator.
High pressure sensor malfunction
(S1NPH): open circuit - A1P (X32A)
Check connection on PCB or actuator.
High pressure sensor malfunction
(S1NPH): short circuit - A1P (X32A)
Check connection on PCB or actuator.
Low pressure sensor malfunction
(S1NPL): open circuit - A1P (X31A)
Check connection on PCB or actuator.
Low pressure sensor malfunction
(S1NPL): short circuit - A1P (X31A)
Check connection on PCB or actuator.
