Руководство по применению для установщика Страница: 47

Daikin RXYTQ48TYF [47/72] Technical data

12 Technical data

Installer and user reference guide

RXYTQ8~16T7YF

VRV IV system air conditioner

4P388989-1B – 2016.02

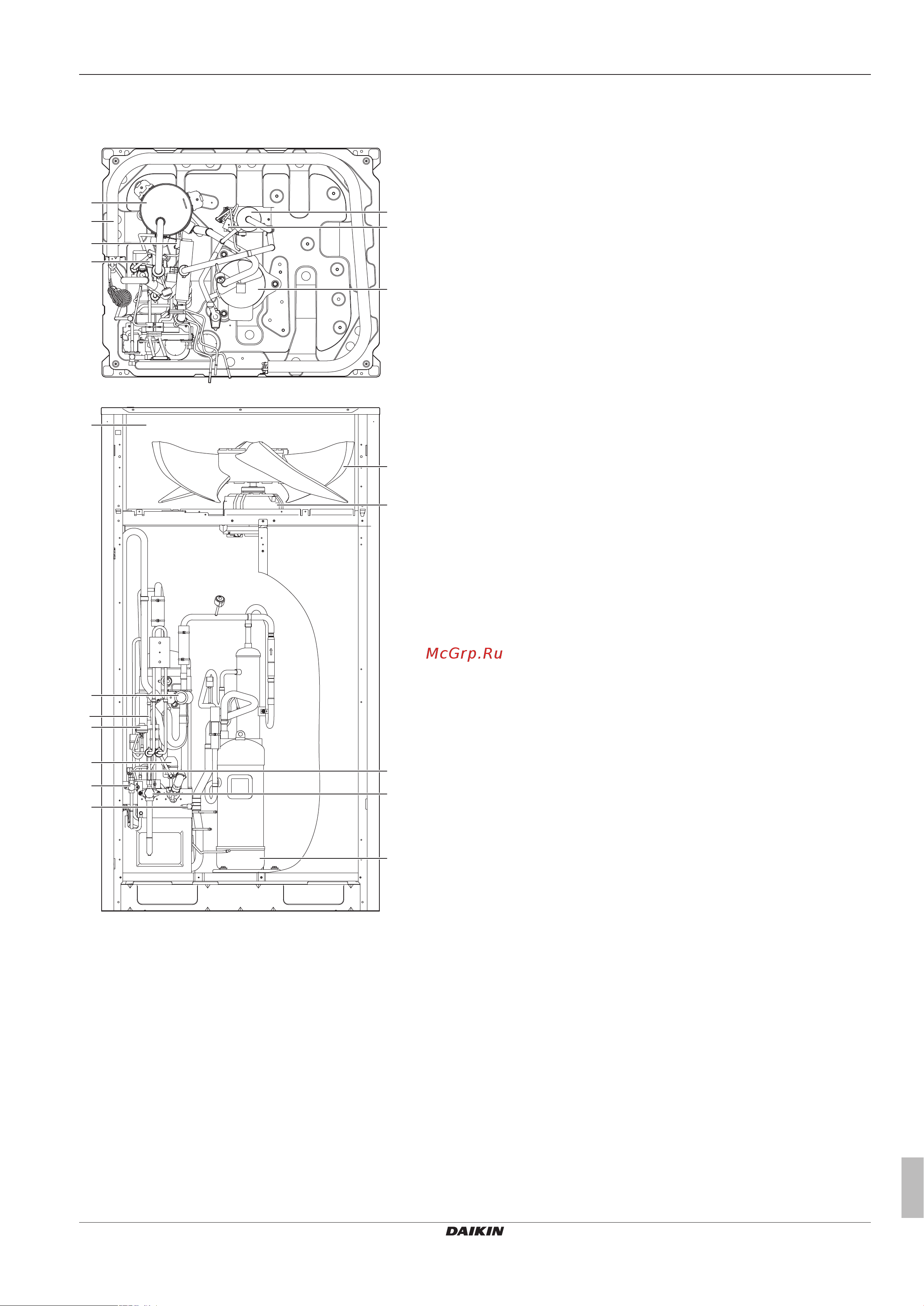

12.4 Components: Outdoor unit

Components: RXYTQ8

a Compressor (M1C)

b Heat exchanger

c Fan

d Fan motor (M1F)

e Accumulator

f Expansion valve, main (Y1E)

g Expansion valve, subcool heat exchanger (Y2E)

h Subcool heat exchanger

i Oil separator

j Solenoid valve, oil accumulator (Y2S)

k Solenoid valve, oil1 (Y3S)

l 4‑way valve, main (Y1S)

m Electrical component box

n Service port, refrigerant charge

o Stop valve, liquid

p Stop valve, gas

q Service port
