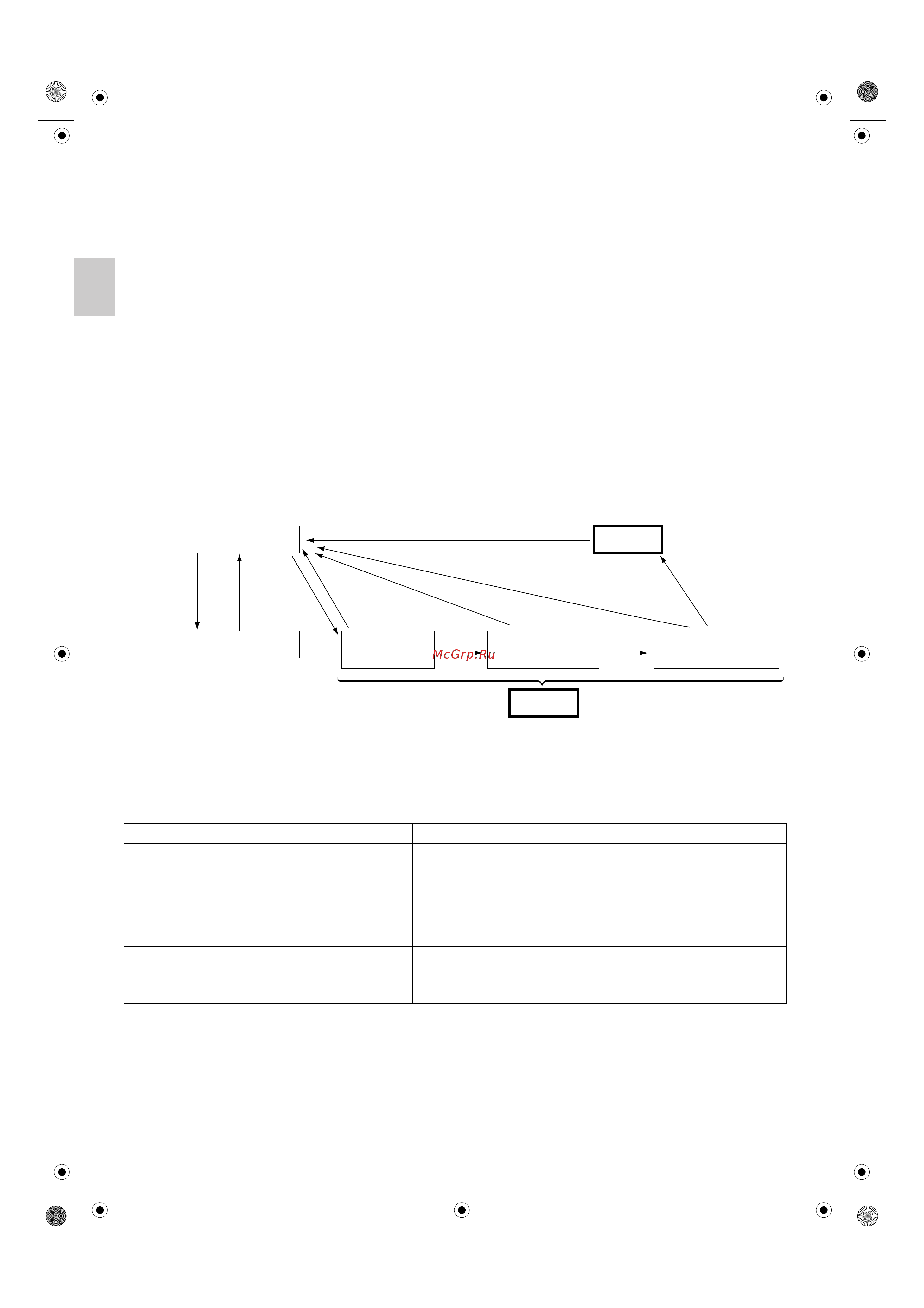

English25
12. TEST OPERATION
Refer to the section of “FOR THE FOLLOWING ITEMS, TAKE SPECIAL CARE DURING
CONSTRUCTION AND CHECK AFTER INSTALLATION IS FINISHED” .
• Make sure that wiring work for the outdoor units is completed.
• Make sure the control box lids are closed on the indoor and outdoor units.
• After finishing installation work for refrigerant piping, drain piping, and electrical wiring, clean the insides of
the indoor units.
• Conduct test operation in accordance with the instructions in the installation manual included with the
outdoor units.
• If interior work is still unfinished when test operation finishes, explain to th
e customer that the air conditioner
must not be operated until interior work is completed in order to protect the indoor units.
(Substances generated from paints and adhesives used for the interior work may contaminate indoor units
if the air conditioner is operated.)
• Refer to the diagnoses below if the unit does not operate properly.
• After completing the test run, press the INSPECTION/TEST OPERATION button once to put the unit in
inspection mode, and make sure the malfunction code is “00”. (=normal)
If the code reads anything other than “00”, refer to the malfunction diagnoses below.
• Press the INSPECTION/TEST OPERATION button four times to return to normal operation mode.
• When using wireless remote controllers, conduct test operation after installing the decoration panel.
12-1 Troubleshooting
• When the wired remote controller display is in any of the states described in Table 6, inspect for the
corre
sponding issues.
Table 6
*After turning on the power, the maximum is 90 seconds, although it will only display “88”. This is not a
problem, and it will be set for 90 seconds.
noitcnuflaMyalpsid rellortnoc etomeR
No display
• Power supply trouble or Open phase connection
• Wrong wiring between indoor and outdoor unit
• Indoor PC board faulty
• Wrong remote controller conection wiring
• Remote controller faulty
• Fuse faulty
88*
• Indoor PC board faulty
• Wrong wiring
between indoor and outdoor unit
88 flashing • Wrong wiring between indoor and outdoor unit
[Mode switching]
Normal operating mode
Test run
Measures
Field setting
(Press
4 seconds
or more)
Once
Once
Once
Once Once
Once
Once
“Error code”
display
“Indoor unit type
code” display
“Outdoor unit type
code” display
*
**
* After leaving 10 seconds or
more, the mode returns to
the normal operating mode.
