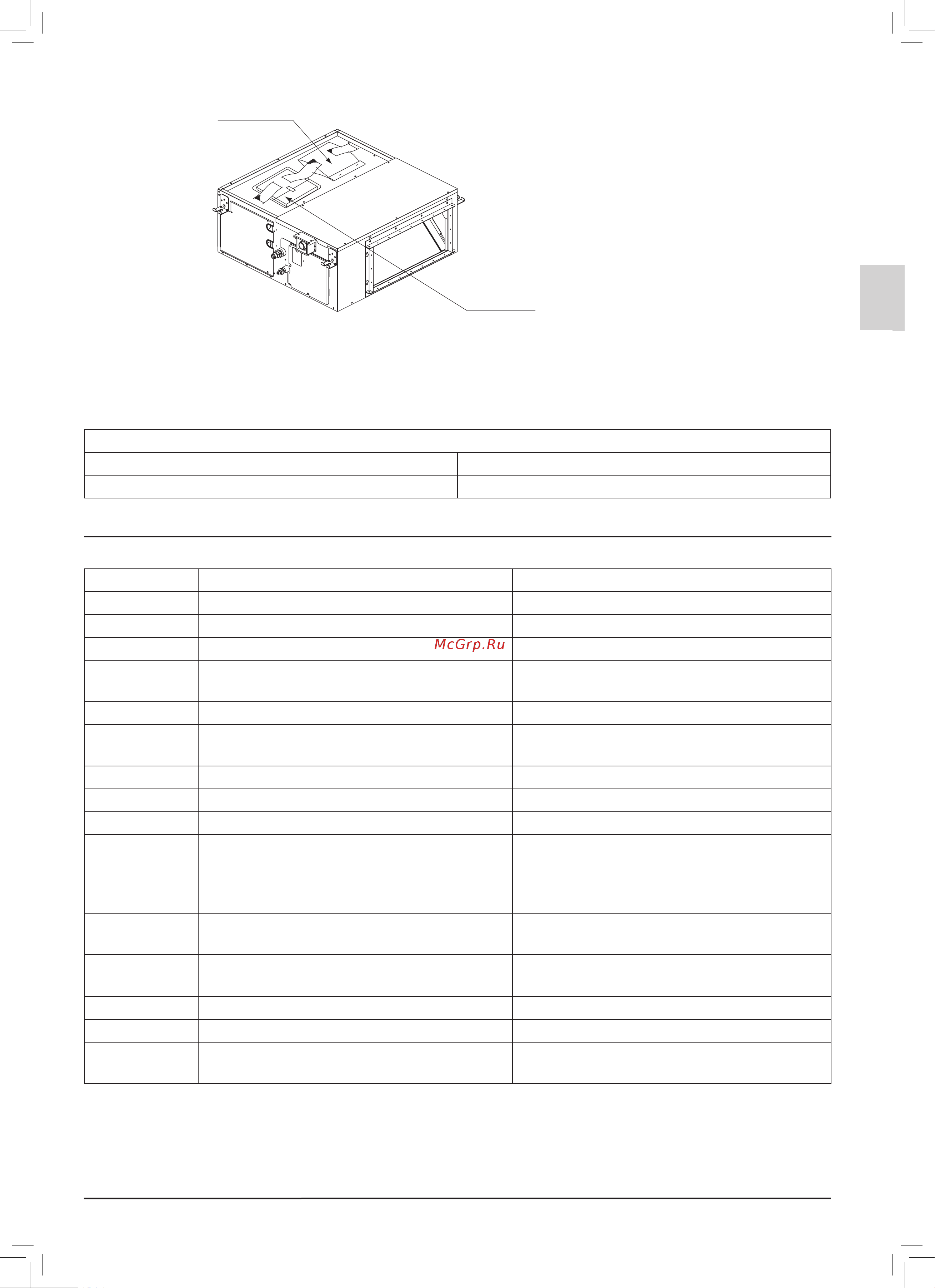

Daikin FBQ20DAVMK [35/60] بيكرتلا نم ءاهتنلاا دعب اهنم ققحتلاو بيكرتلا ةيلمع للاخ رذحلا يخوت بجي ةيلاتلا طاقنلل
![Daikin FBQ20DAVMK [35/60] بيكرتلا نم ءاهتنلاا دعب اهنم ققحتلاو بيكرتلا ةيلمع للاخ رذحلا يخوت بجي ةيلاتلا طاقنلل](/views2/1792625/page35/bg23.png)
-
BRC1C61
BRC4C62
)
Содержание
- Cvf 1 _3p370016 1 1
- Installation manual 1
- Split system air conditioner 1
- ءﺍﻮﻬﻟﺍ ﻒﻴﻴﻜﺗ ﺯﺎﻬﺟﻢﺴﻘﻨﻤﻟﺍ ﻡﺎﻈﻨﻟﺍ 1
- ﺐﻴﻛﺮﺘﻟﺍ ﻞﻴﻟﺩ 1
- Contents 2
- P370016 1_1 1 2
- Safety precautions 2
- P370016 1_2 1 3
- P370016 1_3 1 4
- Special notice of product 4
- 1 accessories 5
- 24 type 36 45 48 type 18 26 5
- Before installation 5
- P370016 1_4 1 5
- Small gray 5
- 2 optional accessories 6
- For the following items take special care during construction and check after installation is finished 6
- Operation manual installation manual 6
- P370016 1_5 1 6
- 3 note to the installer 7
- P370016 1_6 1 7
- Selecting installation site 7
- P370016 1_7 1 8
- Preparations before installation 8
- P370016 1_8 1 9
- Indoor unit installation 10
- P370016 1_9 1 10
- Coat here with ester or ether oil 11
- Flare nut 11
- P370016 1_10 1 11
- Piping union 11
- Refrigerant piping work 11
- Spanner 11
- Torque wrench 11
- P370016 1_11 1 12
- P370016 1_12 1 13
- Accessory metal clamp 1 14
- Downward slope of at least 1 100 14
- Drain piping work 14
- Drain socket 14
- Drain socket cover for transportation 14
- P370016 1_13 1 14
- Refrigerant piping 14
- Screw 4 portions 14
- Supporting hanger 14
- Tape accessory drain hose 2 14
- Air outlet 15
- Ceiling slab 15
- Concentrated drain piping 15
- Drain hose 2 accessory 15
- Drain pan 15
- Drain socket plastic water container 15
- Maintain a downward slope of at least 1 100 so that no air bank will be formed 15
- Metal clamp 1 accessory 15
- Min 100 mm 15
- P370016 1_14 1 15
- Refrigerant piping 15
- Support bracket 1 1 m 15
- The drain piping will be clogged with water and water leakage may result if the water is accumulated in the drain piping 15
- Water inlet 15
- Water inlet lid 15
- Accessory 16
- Accessory screws for duct flanges 3 16
- Air inlet air outlet 16
- Canvas duct field supply 16
- Duct work 16
- Flange on air inlet side provided with the unit 16
- Flange on air outlet side provided with the unit 16
- Insulation material field supply 16
- Large sealing pad 6 accessory 16
- Make sure that the seam faces upward 16
- Metal clamp 1 accessory 16
- Mm max 16
- P370016 1_15 1 16
- Screws for duct flanges 3 16
- 1 connection of wiring between units earth wire and for the remote controller cord 17
- Electric wiring work 17
- P370016 1_16 1 17
- Screw 3 portions 17
- Wiring example and how to set the remote controller 17
- Ground wiring high voltage 18
- High voltage wiring inlet 18
- Low voltage wiring inlet remote controller wiring low voltage 18
- P370016 1_17 1 18
- P370016 1_18 1 19
- Attach insulation sleeve 20
- Clamp 8 accessory 20
- Connect wires of the same gauge to both side good 20
- Do not connect wires of different gauges wrong 20
- Do not connect wires of the same gauge to one side wrong 20
- Electric wire round crimp style terminal 20
- Fixing use 20
- Good wrong wrong 20
- P370016 1_19 1 20
- Remote controller wiring 20
- Wire fixing bracket 12 accessory 20
- Wire fixing screw 13 accessory 20
- Wiring the units power supply wiring ground wiring 20
- Earth leakage breaker 21
- Indoor unit 21
- Main power supply 21
- Outdoor unit 21
- P370016 1_20 1 21
- Pair type 21
- Power supply single phase 60hz 230v 21
- Remote controller optional accessory 21
- Wiring example 21
- Group control 22
- Group control remote controller 22
- Indoor unit 1 indoor unit 2 22
- Indoor unit 16 22
- Lower part of remote controller insert the screwdriver here and gently work off the upper part of remote controller 22
- Outdoor unit 1 outdoor unit 2 outdoor unit 16 22
- P370016 1_21 1 22
- Terminal for remote controller wiring to next unit 22
- Upper part of remote controller 22
- Factory setting 23
- Field setting 23
- Only one remote controller needs to be changed if factory settings have remained untouched 23
- Outdoor unit 23
- P370016 1_22 1 23
- Remote controller pc board 23
- Terminal for remote controller wiring 23
- P370016 1_23 1 24
- P370016 1_24 1 25
- 1 troubleshooting 26
- After leaving 10 seconds or more the mode returns to the normal operating mode 26
- Error code display 26
- Field setting 26
- Indoor unit type code display 26
- Measures 26
- Mode switching 26
- Normal operating mode test run 26
- Once once 26
- Outdoor unit type code display 26
- P370016 1_25 1 26
- Refer to the section of for the following items take special care during construction and check after installation is finished 26
- Test operation 26
- 2 malfunction code list 27
- P370016 1_26 1 27
- P370016 1_27 1 28
- P370016 1_28 1 29
- P281953 1d_memo 30
- جتنملل صاخ راعشإ 33
- بيكرتلا لبق 34
- تاقحلملا 1 2 34
- بيكرتلا نم ءاهتنلاا دعب اهنم ققحتلاو بيكرتلا ةيلمع للاخ رذحلا يخوت بجي ةيلاتلا طاقنلل 35
- ةيرايتخا تاقحلم 2 2 35
- بيكرتلا عقوم ديدحت 36
- بيكرتلاب موقيس نم ىلإ ةظحلام 3 2 36
- بيكرتلا لبق تاريضحتلا 37
- ٧٠٠ ٦٣١ 37
- ٧٠٠٧٠٠ 38
- ةيلخادلا ةدحولا بيكرت 39
- ديربتلا بيبانأ ليصوت لامعأ 40
- ٠ ٤ ٠ ٨ 41
- فيرصتلا بيبانأ ليصوت لامعأ 43
- ﻡ ١ ٥ ١ 43
- ءاوهلا ىرجم لامعأ 45
- ةيئابرهكلا كلاسلأا ليصوت لامعأ 46
- دع ب نع مكحتلا ةدحو نييعت ةيفيكو كلاسلأا ليصوتل جذومن 0 46
- كلاسلأا ليصوتل جذوم 50
- لقحلا دادعإ 1 52
- اهحلاصإو ءاطخلأا فاشكتسا 1 12 55
- رابتخلاا ةيلمع 2 55
- Cvb_3p370016 1 60
