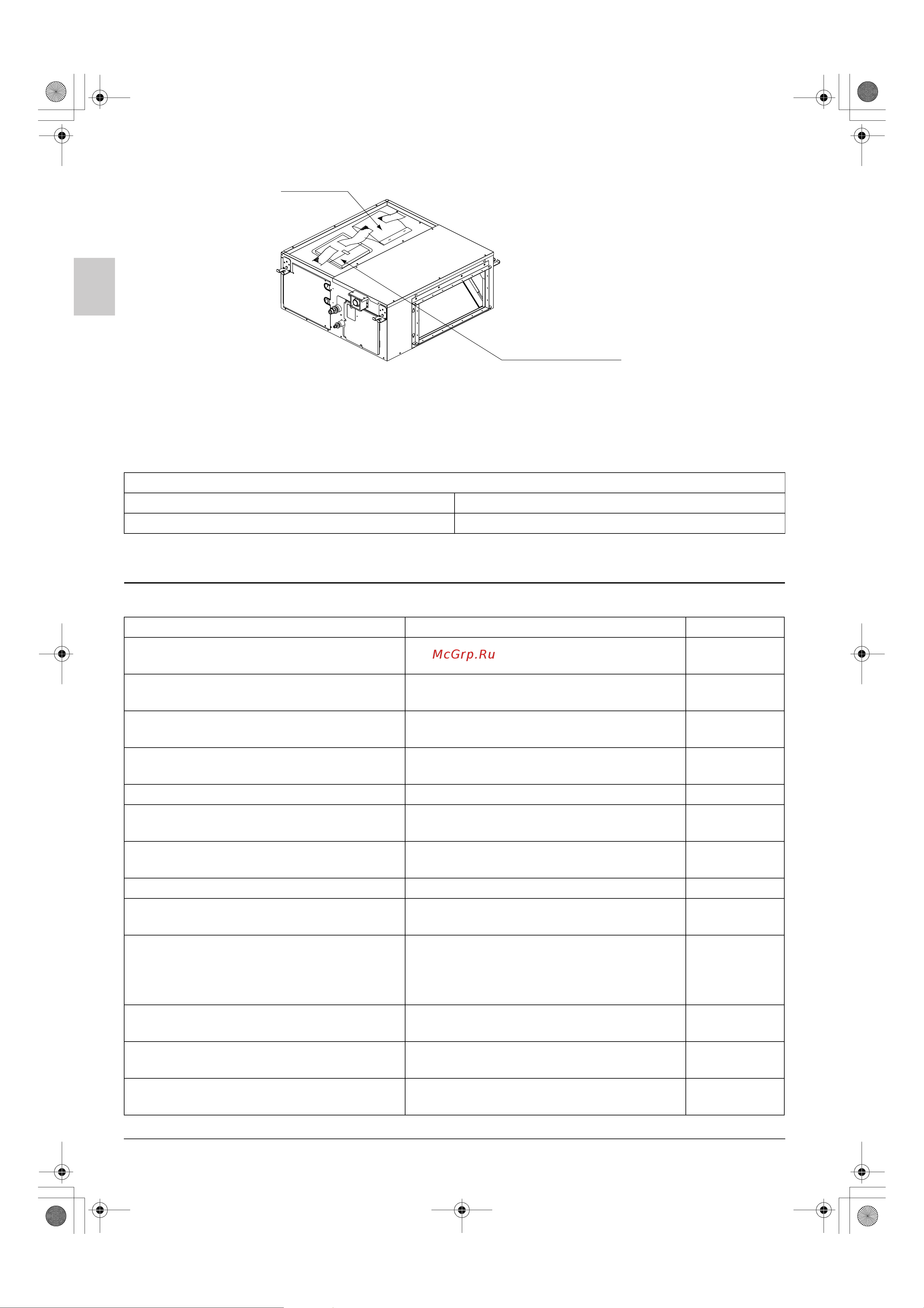

![Daikin FBQ24DAVMK [6/60] P370016 1_5 1](/views2/1792625/page6/bg6.png)
English5
2-2 OPTIONAL ACCESSORIES
• The optional remote controller are required for this indoor unit.
• These are two types of remote controllers: wired and wireless. Select a remote controller according to
customer request and install in an appropriate place.
(When installing, follow the instructions in the manual included with the remote controller.)
FOR THE FOLLOWING ITEMS, TAKE SPECIAL CARE DURING CONSTRUCTION AND
CHECK AFTER INSTALLATION IS FINISHED.
a. Items to be checked after completion of work
Remote controller
16C1CRBepyt deriW
26C4CRBepyt sseleriW
kcehCrucco ot ylekil si tahw ,enod ylreporp ton fIdekcehc eb ot smetI
Are the indoor unit and outdoor unit fixed
firmly?
The unit may drop, vibrate or make noise.
Is the outdoor unit fully installed?
The unit may malfunction or components
burn out.
Is the gas leak test finished?
It may result in insufficient cooling or
heating.
heating.
heating.
heating.
Is the unit fully insulated? (Refrigerant pip-
ing, drain piping, and duct)
Condensate water may drip.
Does drainage flow smoothly? Condensate water may drip.
Does the power supply voltage c
orrespond
to that shown on the name plate?
The unit may malfunction or the
components burn out.
components burn out.
components burn out.
Are wiring and pipi
ng correct?
The unit may malfunction or the
Is the unit safely grounded? It may result in electric shock.
Is wiring size according to specifications?
The unit may malfunction or the
Is something blocking the air outlet or inlet
of either the indoor or outdoor units?
(This can lead to malfunction or decreased
performance due to decreased air volume.)
It may result in insufficient cooling or
Does the cold air (warm air) blow properly
during the cooling (heating) operation?
It may result in insufficient cooling or
Are refrigerant piping length and additional
refrigerant charge noted down?
The refrige
rant charge in the system is not
clear.
Has the field setting done (as necessary)?
It may result in insufficient cooling or
Fig. 1
Operation manual
Installation manual
(1) - (13)
01_EN_3PN06583-10W.fm Page 4
Thursday, March 24, 2011 9:03 AM
