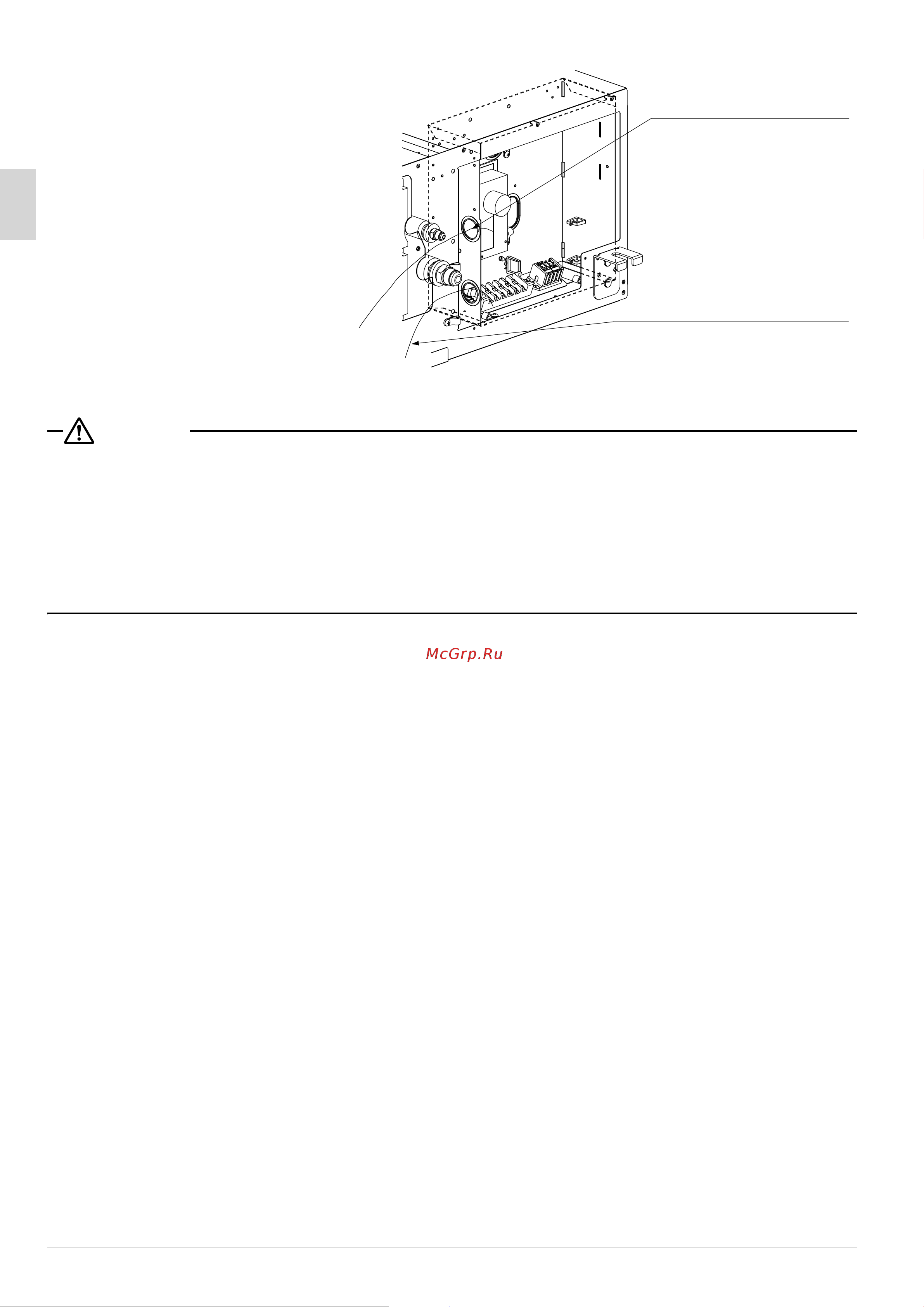

English17
(2) Lay the wires in the control box
through the wire inlet on the side of
the control box.
CAUTION
• Do not lay the remote controller wiring along with the wiring the units, power supply wiring or other electric
wiring in the same route. Separate the remote controller wiring at least 50 mm from the wiring the units,
power supply wiring or other electric wiring, or otherwise malfunctions or failures may be caused by
exter
nal electric noise that may interfere with the remote controller wiring.
• For the installation and wiring of the remote controller, refer to the remote controller installation manual
pro
vided with the remote controller.
• For wiring the units, power supply wiring, refer to the wiring diagram as well.
• Be sure to connect the remote controller wiring correctly to the right terminal block (X2M).
Low-voltage wiring inlet
• Remote controller wiring
(Low voltage)
High-voltage wiring inlet
•
Wiring the units (High voltage)
•
Power supply wiring (High voltage)
• Ground wiring (High voltage)
