• For group control remote controller, choose the remote controller that suits the indoor unit which has the

most functions (as attached swing flap)

Wiring Method

(1) Remove the control box lid. (See ‘‘9. ELECTRIC WIRING WORK’’.)

(2) Cross-wire the terminal block for remote controller (P

) inside the control box. (There is no

polarity.) (Refer to Fig. 10 and Table 2)

Two remote controllers control (Controlling 1 indoor unit by 2 remote controllers)

• When using 2 remote controllers, one must be set to “MAIN” and the other to “SUB”.

MAIN/SUB CHANGEOVER

(1) Insert a screwdriver into the recess between the upper and lower part of remote controller and, working

from the 2 positions, pry off the upper part. (The remote controller PC board is attached to the upper part

of remote controller.) (Refer to Fig. 12)

Outdoor unit 1

Outdoor unit 2

Outdoor unit 16

Indoor unit 1

Indoor unit 2

Group control remote controller

Indoor unit 16

Group control

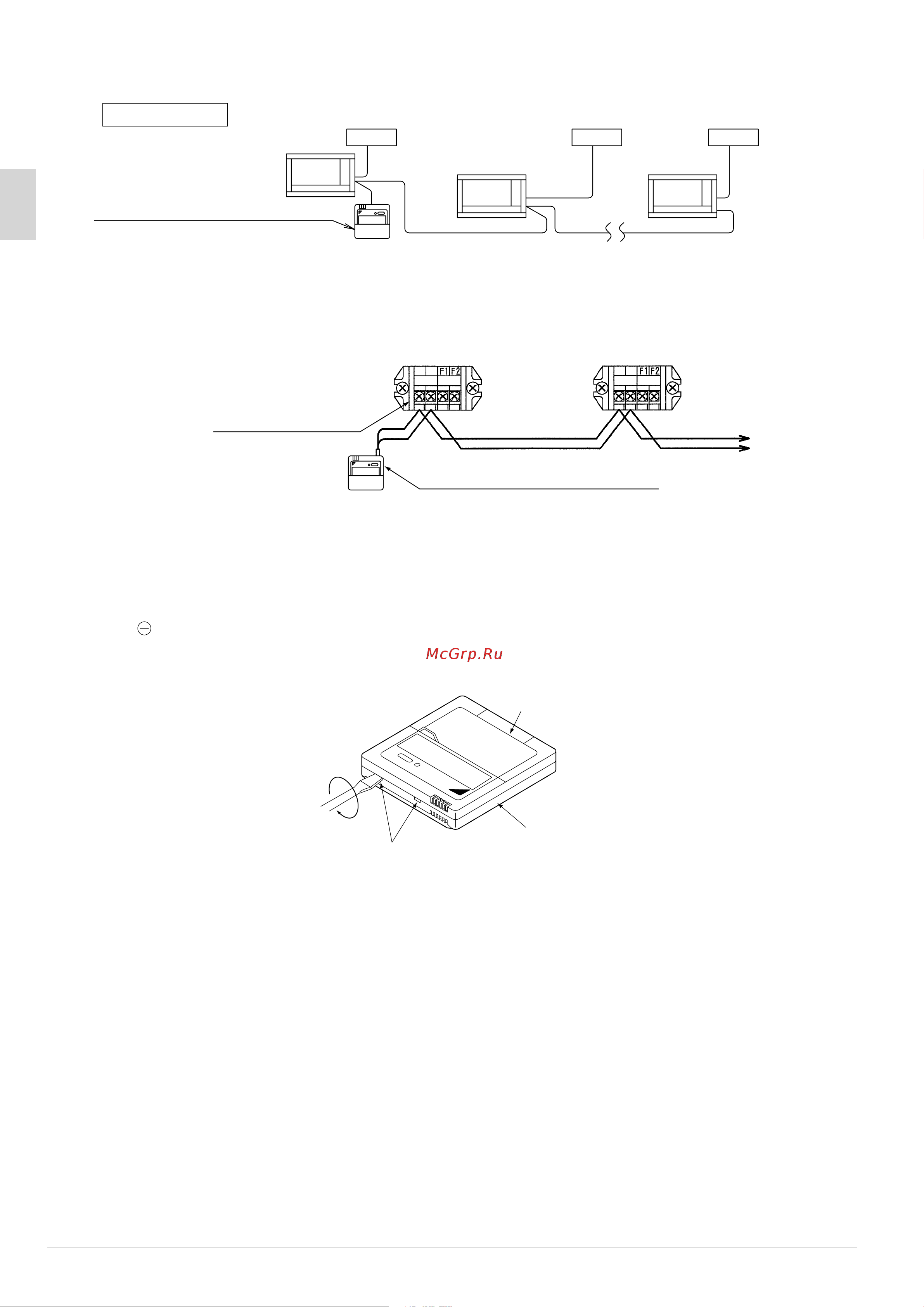

Fig. 10

2P1P2P1P

Group control remote controller

Indoor unit 1 Indoor unit 2

Terminal for remote

controller wiring

To next unit

Fig. 11

Upper part of

remote controller

Lower part of

remote controller

Insert the screwdriver

here and gently work

off the upper part of

remote controller.

Fig. 12
