2. BEFORE INSTALLATION
Do not exert pressure on the resin parts when opening the unit or when moving it after opening.
Be sure to check the type of R410A refrigerant to be used before doing any work. (Using an incorrect
refrigerant will prevent normal operation of the unit.)
• When opening the unit or moving it after opening, be sure to lift it by holding on to the lifting lugs without
exerting any pressure on other parts, especially, drain piping, and flange.
• Decide upon a line of transport.
• Leave the unit inside its packaging while moving, until reaching the installation site. Use a sling of soft
mate
rial, where unpacking is unavoidable or protective plates together with a rope when lifting, t
o avoid
damage
or scratches to the unit.
• Refer to the installation manual of the outdoor unit for items not described in this manual.
• Do not dispose of any parts necessary for installation until the installation is complete.
• In order to protect the indoor unit from damage, use packing materials to protect the unit after carrying until
the installation starts.
• Do not use the unit in locations with high salt content in the air such as beachfront property, locations where
the voltage fluctuates such as factories, or in automobiles or marine vessels.

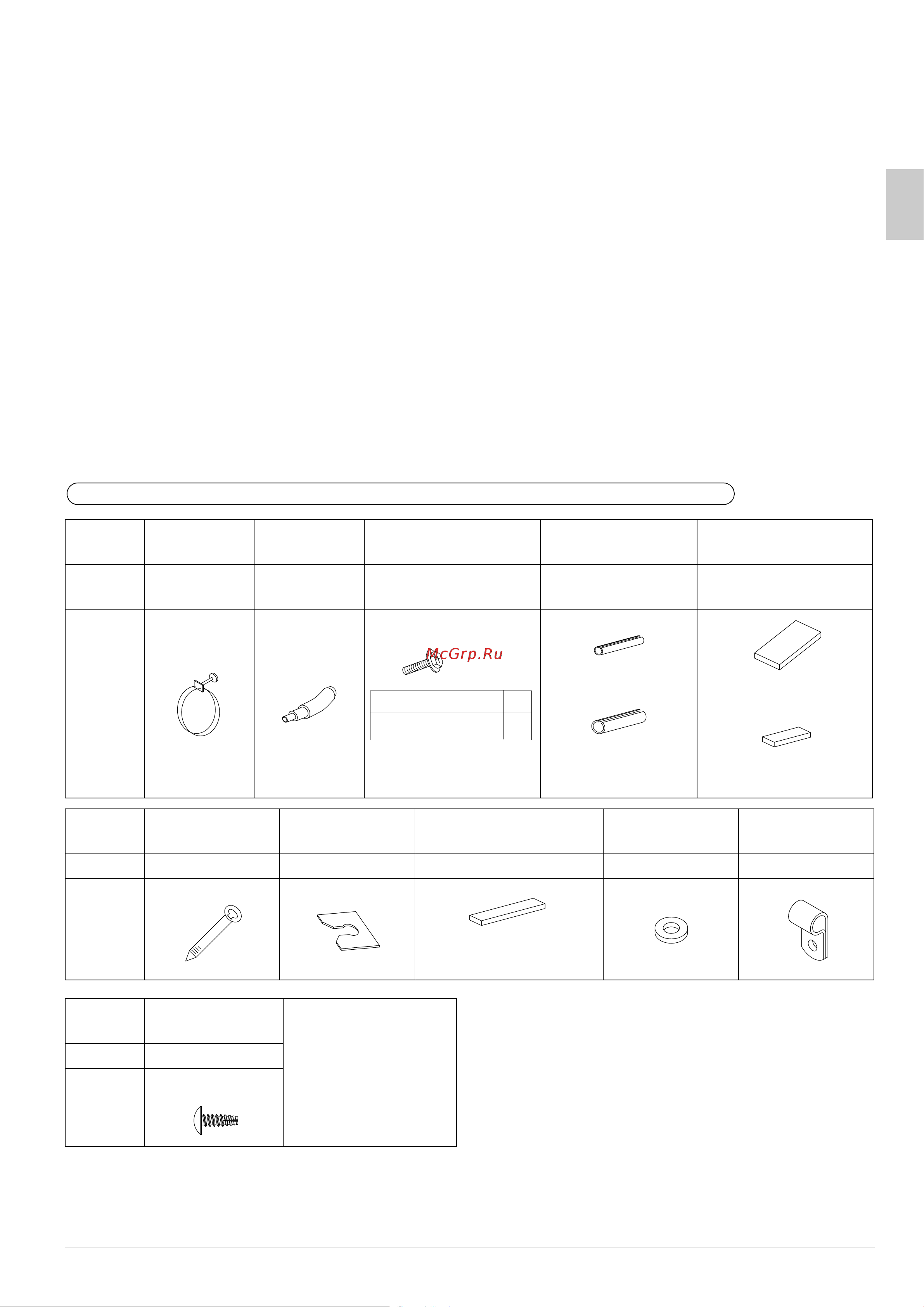

2-1 ACCESSORIES
Check the following accessories are included with your unit.
Refer to Fig. 1 for the location of the accessories.
Name
Metal clamp
(1)
Drain hose
(2)
Screws for duct
flanges (3)
Insulation for
fitting
Sealing pad
Quantity 1 pc. 1 pc.
As described in table
below
1 each –
Shape
for liquid pipe (4)
for gas pipe (5)
1 pc.
Large (Dark gray) (6)
2 pcs.
Middle (Dark gray) (7)
Name Clamp (8)
Washer fixing
plate (9)
Wire sealing material
(10)
Washer (11)
Wire fixing
bracket (12)
Quantity 9 pcs. 4 pcs. 2 pcs. 8 pcs. 2 pcs.
Shape
Name
Wire fixing screw
(13)
(Other)
• Operation manual
• Installation manual
Quantity 2 pcs.
Shape
Do not dispose of any parts necessary for installation until the installation is completed.
M5×16
20 • 24 type
36 • 45 • 48 type
18
26
Thin
Thick
Small (Gray)
M4×8
