11 Technical data
Installer and user reference guide
21
FCAHG71~140FVEB
Split system air conditioners
4P429475-1 – 2015.12

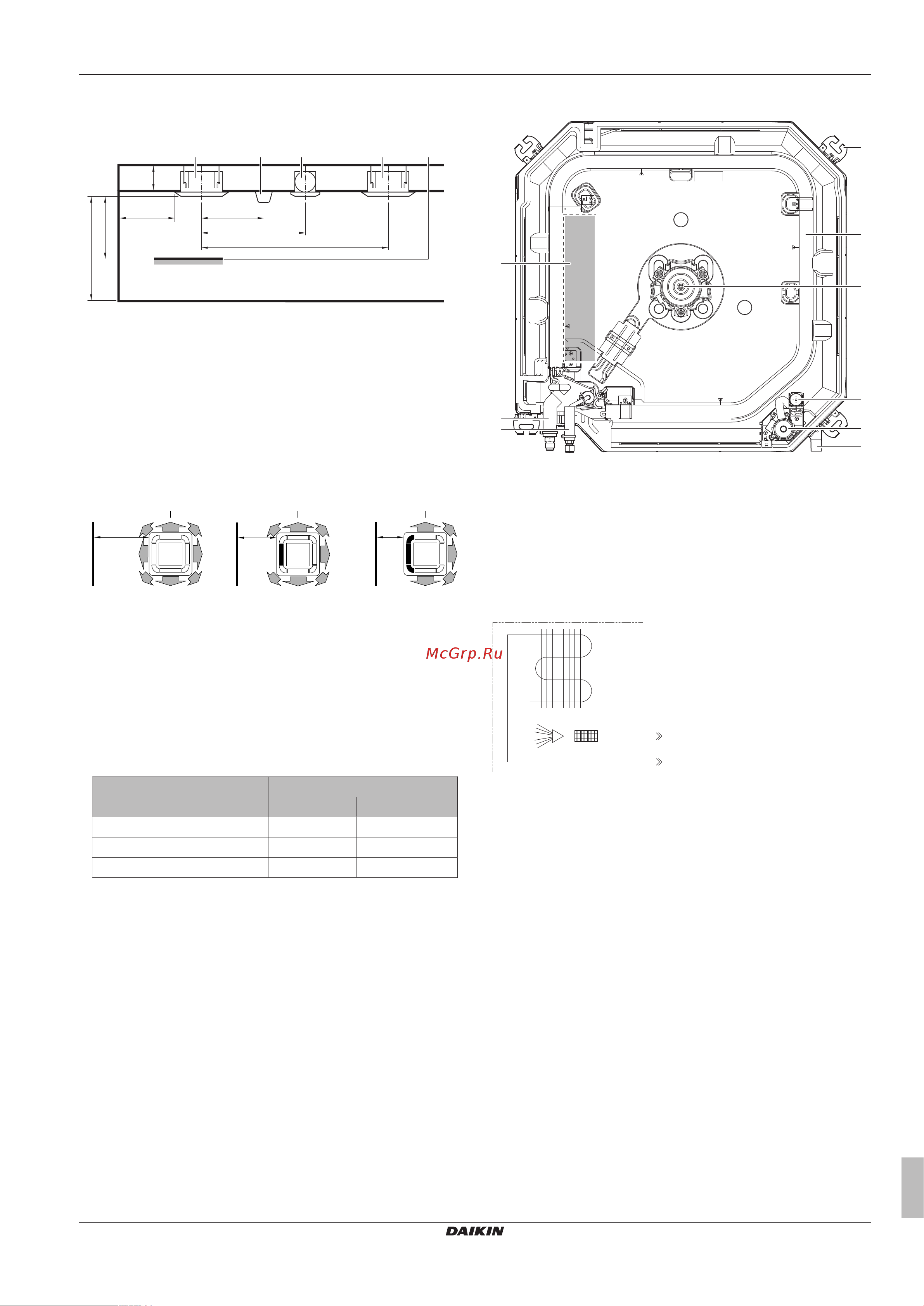

11.3 Service space: Indoor unit
▪ Spacing. Mind the following requirements:
(mm)
≥1500
≥
2000
≥
4000
≥1500
A
B
C
ba dac
A Minimum distance to the wall (see below)
B Minimum and maximum distance to the floor (see below)
C ≥298mm: In case of installation with standard decoration
panel
≥348mm: In case of installation with fresh air intake kit
≥378mm: In case of installation with self-cleaning
decoration panel
a Indoor unit
b Lighting (the figure shows ceiling-mounted lighting, but
recessed lighting is also allowed)
c Air fan
d Static volume (example: table)
▪ A: Minimum distance to the wall. Depends on the air flow
directions towards the wall.
≥1500 ≥500 ≥200
a
A A A
b c
a Air outlet and corners open
b Air outlet closed, corners open (optional blocking pad kit
required)
c Air outlet and corners closed (optional blocking pad kit
required)
▪ B: Minimum and maximum distance to the floor:
▪ Minimum: 2.5m to avoid accidental touching.
▪ Maximum: Depends on the air flow directions and the capacity
class. Also make sure the "Ceiling height" field setting
corresponds with the actual situation. See "7.1 Field
settings"on page16.
If air flow direction… Then B
FCAHG71 FCAHG100~140
All-round ≤3.5m ≤4.2m
4-way
(a)
≤4.0m ≤4.5m
3-way
(a)
≤3.5m ≤4.2m
(a) Optional blocking kit required
11.4 Components: Indoor unit
f
g
h
i
c
b
a
e
d
a Switch box
b Gas pipe connection
c Liquid pipe connection
d Drain pipe connection (VP25)
e Drain pump
f Float switch
g Fan motor
h Heat exchanger
i Hanger bracket
11.5 Piping diagram: Indoor unit
b
a
c
d
a Liquid pipe connection
b Gas pipe connection
c Filter
d Heat exchanger
