4 About the units and options
Installer and user reference guide
7
FCAHG71~140FVEB
Split system air conditioners
4P429475-1 – 2015.12
1 2

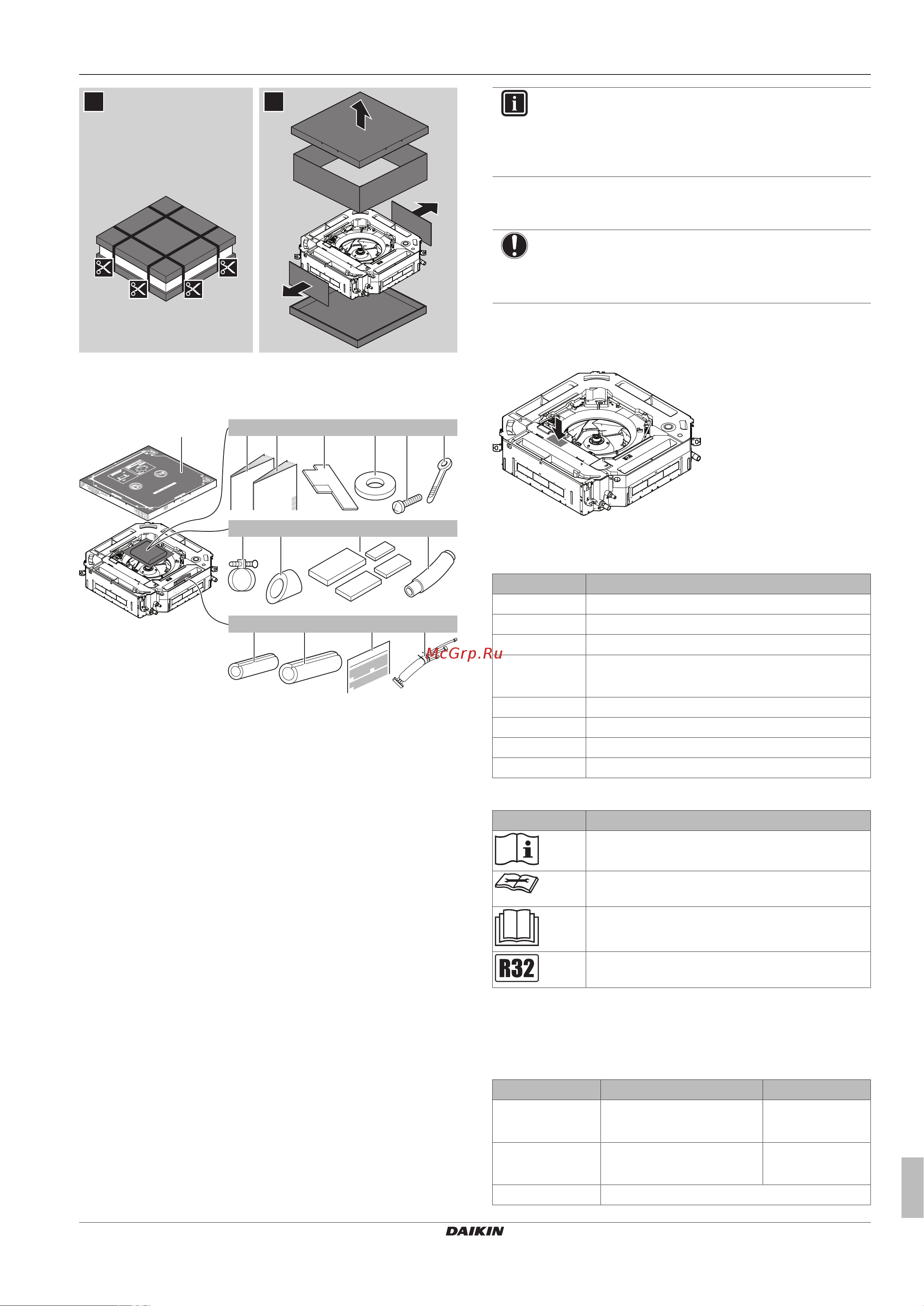

3.2.2 To remove the accessories from the
indoor unit
8× 4×1×1× 1×
a
4×1×
1×
1×
1×
7×
1×
e fdcb
h ji
g
1×
k
1×
l m on
a Paper pattern for installation (upper part of packing)
b General safety precautions
c Indoor unit installation and operation manual
d Installation guide
e Washers for hanger brackets
f Screws (to temporarily attach the paper pattern for
installation to the indoor unit)
g Cable ties
h Metal clamp
i Insulation piece (drain pipe)
j Sealing pads: Large (drain pipe), medium 1 (gas pipe),
medium 2 (liquid pipe), small (electrical wiring)
k Drain hose
l Insulation piece: Small (liquid pipe)
m Insulation piece: Large (gas pipe)
n Wiring instruction sheet (for the connection of the optional
sensor kit and decoration panels)
o Wire harness for the self‑cleaning decoration panel
4 About the units and options
4.1 Overview: About the units and
options
This chapter contains information about:
▪ Identifying the indoor unit
▪ Combining outdoor and indoor units
▪ Combining the indoor unit with options
INFORMATION
For year‑round cooling applications with low indoor
humidity conditions, such as Electronic Data Processing
rooms, contact your dealer or see the engineering
databook or the service manual.
4.2 Identification
NOTICE
When installing or servicing several units at the same time,
make sure NOT to switch the service panels between
different models.
4.2.1 Identification label: Indoor unit
Location
Model identification
Example: F C A HG 100 F VE B
Code Explanation
F Air-cooled split indoor unit
C Cassette (multi flow)
A Refrigerant R32
HG H=High-performance
G=GQI-Eco series
71~140 Capacity class
F Model series
VE Power supply
B European market
Symbols
Symbol Explanation
Before installation, read the installation and
operation manual, and the wiring instruction sheet.
Before performing maintenance and service tasks,
read the service manual.
For more information, see the installer and user
reference guide.
Refrigerant used: R32
4.3 About the indoor unit
Use the system in the following temperature and humidity ranges for
safe and effective operation.
Cooling Heating
Outdoor
temperature
–15~50°CDB –19~21°CDB
–20~15.5°CWB
Indoor
temperature
18~35°CDB
12~28°CWB
10~27°CDB
Indoor humidity ≤80%
(a)
