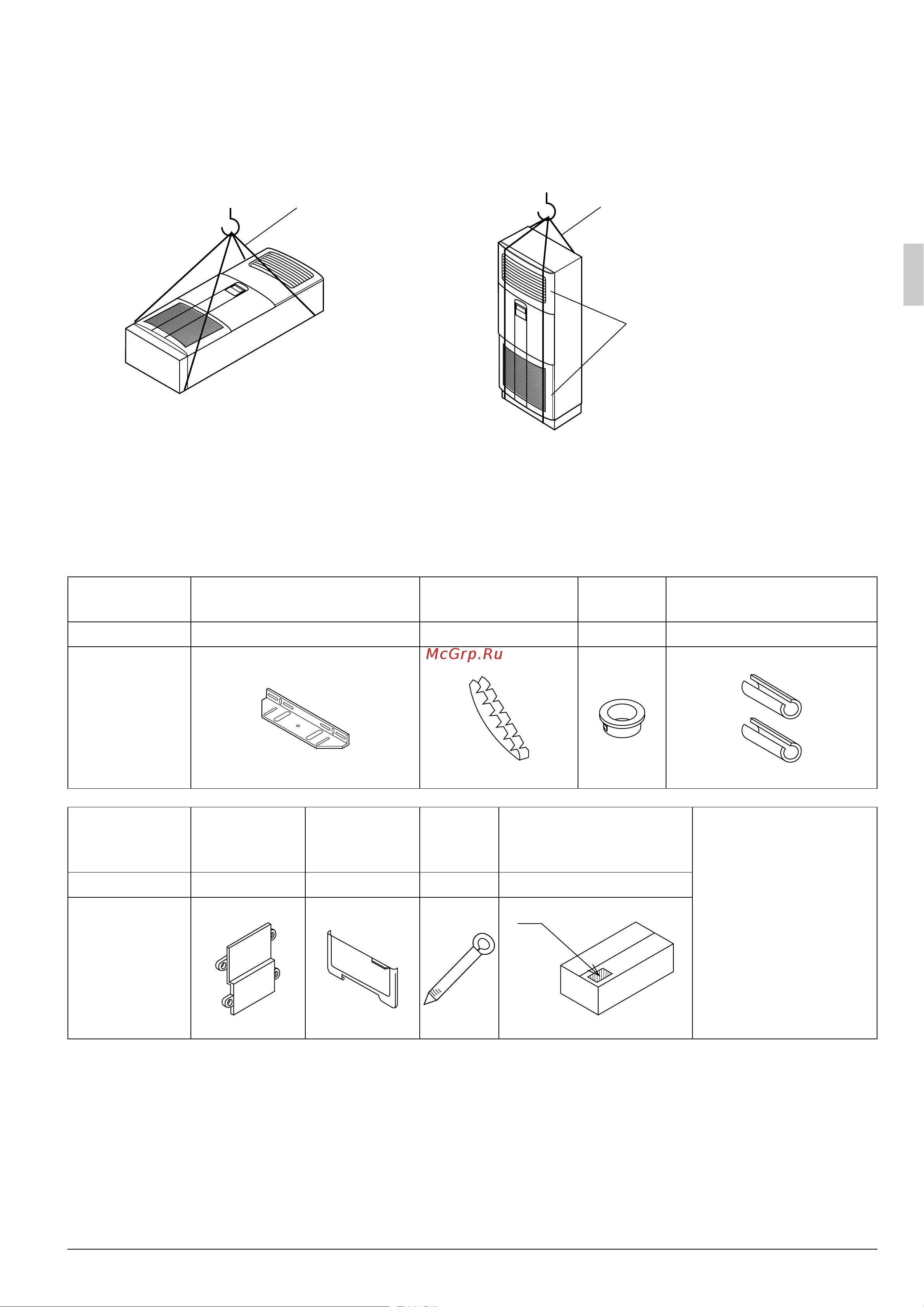

English 3
2. BEFORE INSTALLATION
• The accessories needed for installation must be retained in your custody until the installation work is
completed. Do not discard them!
• Decide upon a line of transport.
• When transporting by hanging the unit, use a sling of soft material as shown below.
• When moving the unit at or after opening, do not apply force to plastic parts.
• When selecting installation site, refer to the paper pattern (part of packaging material).
• For the installation of an outdoor unit, refer to the installation manual attached to the outdoor unit.
1. ACCESSORIES
Check the following accessories are included with the unit.
2. OPTIONAL ACCESSARIES
• When the indoor unit is to be controlled by two remote controllers (refer to “FIELD SETTING”), install
them on an adequate place, referring to the related technical information.
(As for the installation procedure, follow the instruction in “Remote controller installation procedure”
attached to the remote controller.)
Name Bracket for installation
Through hole
protecting rubber
Bush Insulation for fitting
Quantity 1 set 2 pcs. 1 pc. 1 each
Shape
(1)
(Attached to the top
panel)
(2) (3) (4) For gas pipe
(5) For liquid pipe
Name
Control
panel patch
plate
Remote
controller lid
Clamp Installation pattern
(Other)
(10) Operation
manual
(11) Installation
manual
(12) Screws
(M5 × 12, 2 pcs.)
Quantity 1 pc. 1 pc. 5 pcs. 1 pc.
Shape
(6) (7) (8) (9)
(Part of packing material)
(1) Horizontal hanging (2) Vertical hanging
Sling
Sling
*Be sure that the sling
does not slide in the
direction of the arrow.
Apply cloth or corrugated
fibreboard so that the air
discharge grille and air inlet
grille are not damaged
01_EN_3PA60136-8Y.fm Page 3 Saturday, December 22, 2007 1:04 PM
