SATA Hard Drive Configurations (SiS 964)- 5 -

(3) Configuring RAID set in RAID BIOS

Enter the RAID BIOS setup utility to configure a RAID array. Skip this step and proceed to Section 4 if

you do not want to create RAID.

Step 1:

After the POST memory test begins and before the operating system boot begins, look for a message

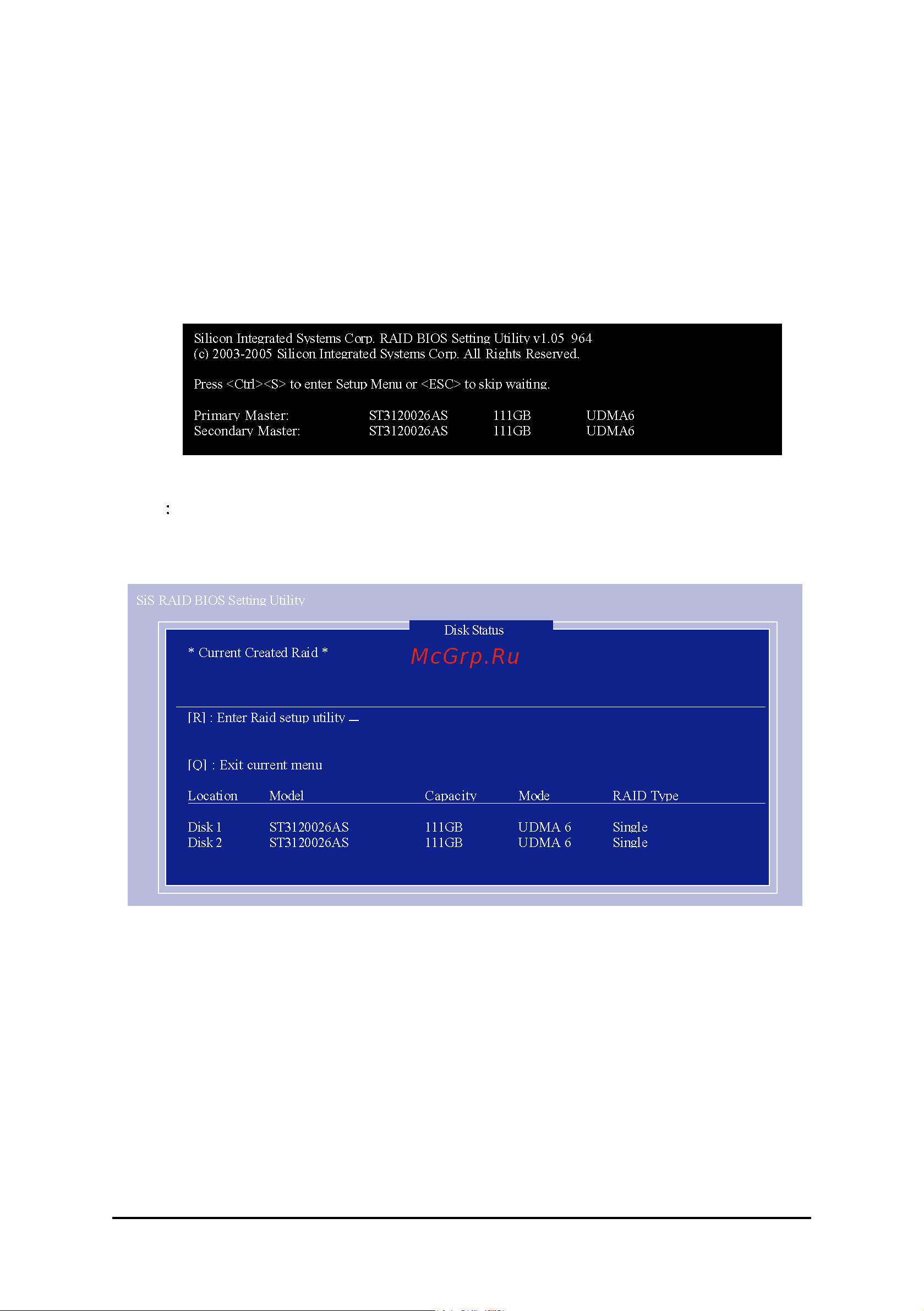

which says "Press <Ctrl>+<S> to enter Setup Menu or <ESC> to skip waiting" (Figure

4). Hit CTRL+S to enter the RAID BIOS setup utility. If you cannot enter the RAID BIOS correctly, assure

that your SATA drives are properly installed.

Figure 4

Step 2

Press CTRL+S. The SiS RAID BIOS Setting Utility - Disk Status window appears (refer to Figure

5). To create RAID, press R to enter the RAID Setup utility.
