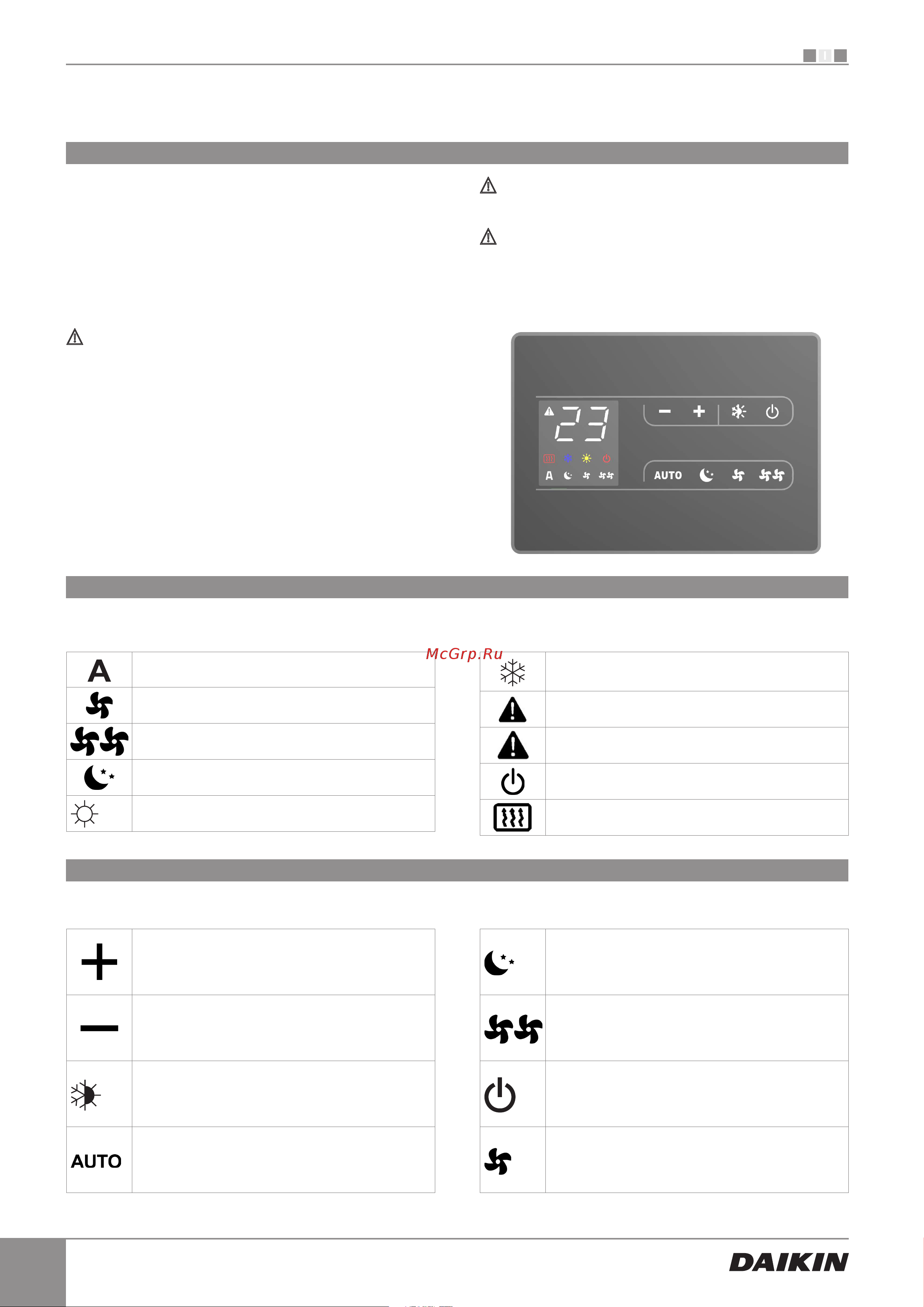

10
S
U
I
3.1
3.2
3.3
EKWHCTRL1
The remote wall-mounted control EKWHCTRL1 is an
electronic thermostat with a room temperature probe for
controlling one or more (up to a maximum of 30) fan coils
/ cooler-radiators in broadcast mode (with simultaneous
control transmission) equipped with electronic control for
EKWHCTRL0 remote operation .
The control panel has a memory, so settings will not be lost
if the appliance is switched off or in the power supply is cut.
Any anomalies on individual connected terminal are
not indicated on the wall panel.
Anti-freeze protection is guaranteed via the
temperature probe when in stand-by.
After 20 seconds from the last action, the panel
brightness will be reduced and the room temperature
will appear on the display. Press any key to restore
maximum brightness.
Any statuses and alarms are also shown on the display by
using 8 specific symbols:
Automatic operation
Silent operation
Maximum ventilation speed
Night-time operation
Heating on
Cooling on
Supervision on Flashing with presence switch CP
closed.
Alarm indicator (solid light)
Panel off indicator
Resistance active indicator
The various functions are set using 8 backlit keys:
Temp + is for increasing the set temperature
Temp - is for decreasing the set temperature
Heating / Cooling: for changing the operation
mode between heating and cooling
Sets the regulation ventilation speed between
a minimum and maximum value to an entirely
automatic mode
Night-time operation: limits ventilation speed
to a contained level and the set temperature
is adjusted automatically.
Maximum speed operation: Allows for the
maximum ventilation speed to be set
ON/Stand-By: for activating the device or for
putting it in stand-by.
Silent: limits ventilation speed to a more
contained value
Display
Wall-mounted SMART TOUCH electronic control panel with room probe
Key function
