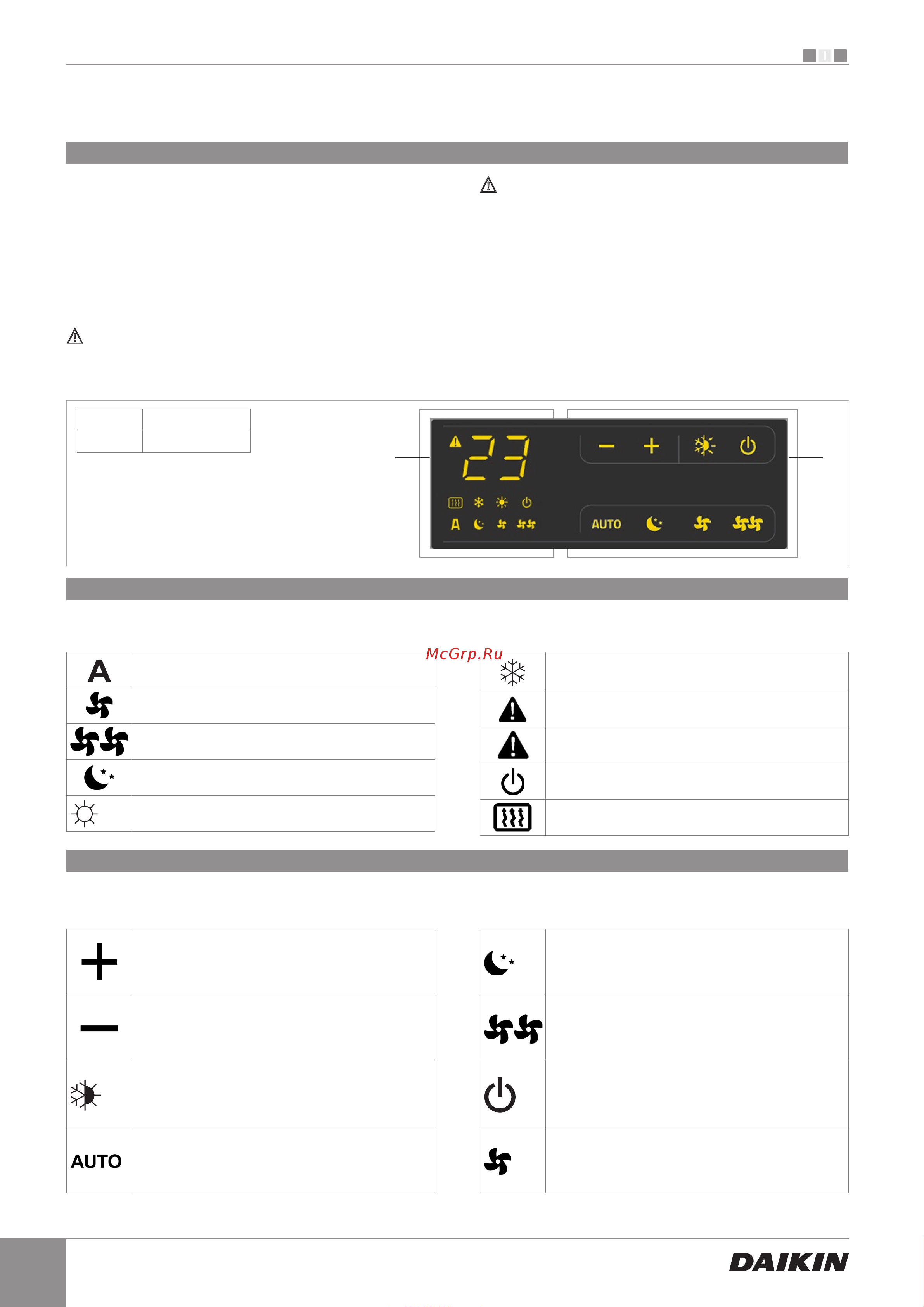

![Daikin EKRTCTRL2 [14/24] Ekrtctrl2](/views2/1795131/page14/bge.png)
14
S
U
I
4.1
A
B
4.2
4.3
These controls make room temperature adjustment (with
offset settable from the keyboard) completely autonomous
through the four speeds by means of a probe located in
the lower part of the device, ensuring anti-freeze safety
even when set to stand-by.
The control panel has a memory, so settings will not be
lost if the appliance is switched off or in the power supply
is cut.
Controls cannot be installed on the FWXM-series.
After 20 seconds from the last action the panel
brightness will be reduced for improved night-time
comfort, and the room temperature will appear on the
display. Press any key to restore maximum brightness.
The 10 kΩ water temperature probe positioned in the
device battery regulations the minimum level when heating
(30°C) and the maximum level when cooling (20°C).
The various functions are set using 8 backlit keys:
Any statuses and alarms are also shown on the display by
using 8 specific symbols:
EKRTCTRL2
Automatic operation in steps
Minimum operation
Maximum ventilation speed
Super silent operation
Heating on
Cooling on
Supervision active (flashing light)
Alarm indicator (solid light)
Panel off indicator
Resistance active indicator
Temp + is for increasing the set temperature
by 1 K
Temp - is for decreasing the set temperature
by 1 K
Heating / Cooling: for changing the operation
mode between heating and cooling
In automatic mode, the fan carries out a
"stepped" adjustment to move the room
temperature closer to the set point.
The super silent setting activates powerful
dehumidifying when cooling and only radiation
when heating.
Maximum speed operation: Allows for the
maximum ventilation speed to be set
ON/Stand-By: for activating the device or for
putting it in stand-by.
Minimum: limits ventilation speed to a very
contained value
A Display
B Keys
SMART TOUCH electronic control panel with fixed speed modulation
Display
Key function
