Daikin EKRTCTRL2 [18/24] Ekpcbo

mode

o

5.1

5.2

5.3

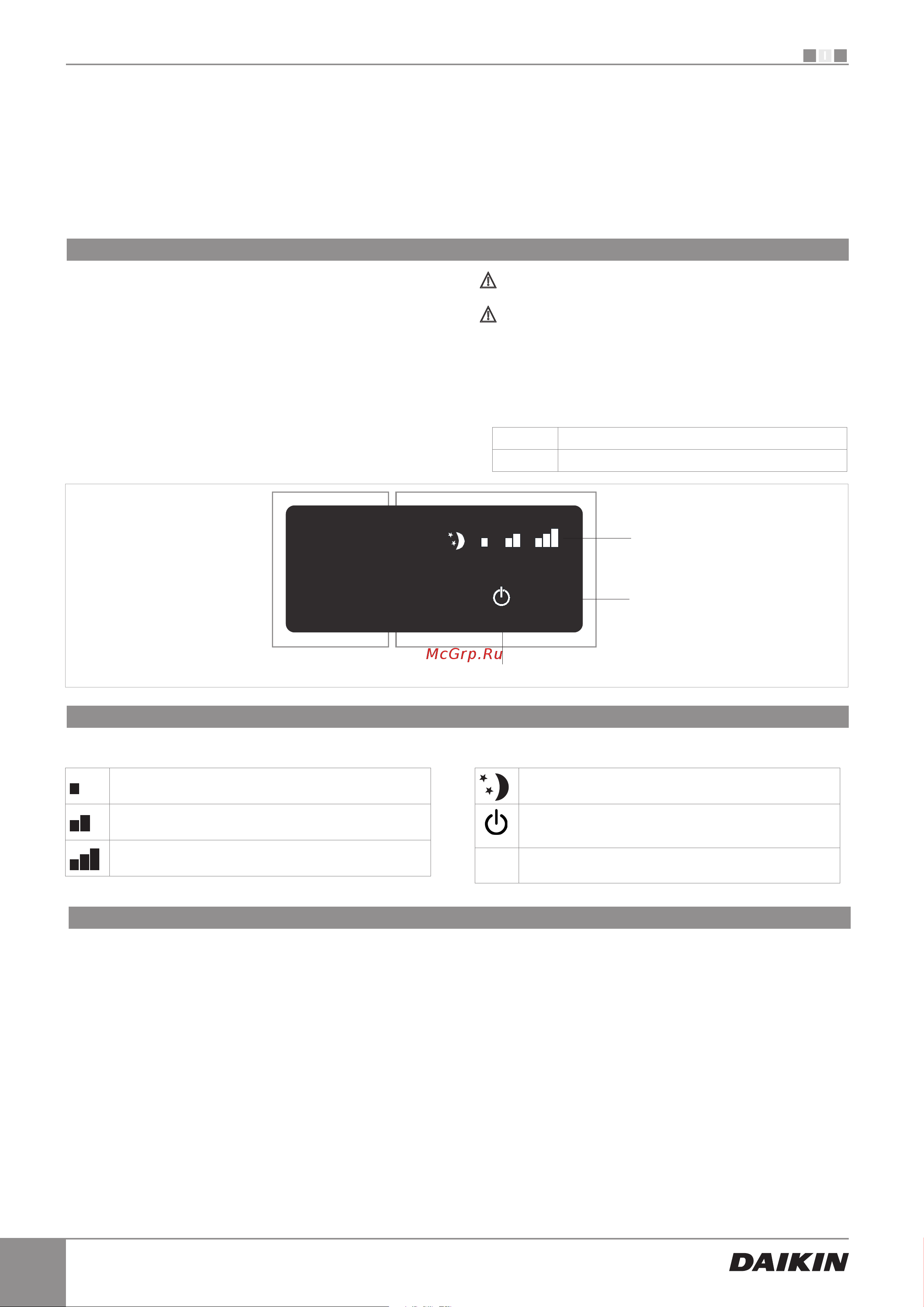

On-board speed selector for connecting to standard thermostat

LED indications

The command is for switching on and off and selecting the

4 speeds directly from the fan coil.

Switching on and off takes place via closing of the external

thermostat contact.

The control panel has a memory, so settings will not be lost

if the appliance is switched off or in the power supply is cut.

Controls cannot be installed on the FWXM-series.

After 20 seconds from the last action, the LED brightness

will be reduced for improved night-time comfort. Press

any key to restore maximum brightness.

The 5 LEDs display the operational states:

Minimum speed selected

Medium speed selected

Maximum speed selected

Supersilent function selected

Fan coil off or TA contact open (flashing)

Warning Led

speed selection key

EKPCBO

General On Switch

To manage the fan coil via the selector, it must be

connected to the mains and to a room thermostat with a

single 230V AC contact.

If a general switch is installed on the power line, this must

also be switched on.

- Turn the device on by activating the general switch
