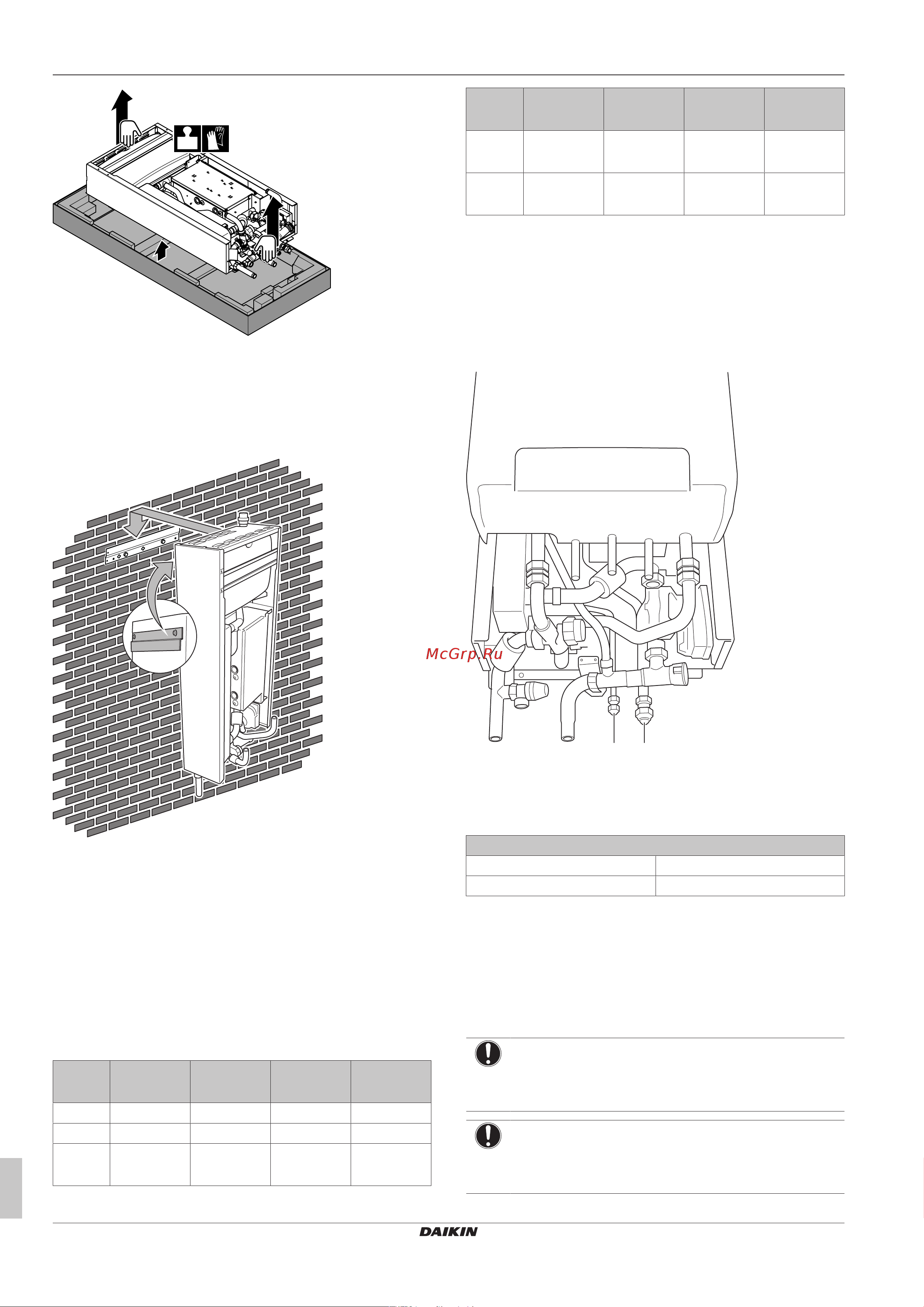

4 Installation
Installation manual
8
CHYHBH05+08AF
Daikin Altherma R Hybrid
4P471756-1F – 2020.10
30kg
4 Tilt the top of the unit against the wall at the position of the wall
bracket.
5 Slide the bracket on the back of the unit over the wall bracket.
Make sure the unit is fixed properly. You can additionally fix the
bottom side of the unit with 2 M8 bolts.
6 The unit is mounted to the wall.
4.3 Connecting refrigerant piping
See the installation manual of the outdoor unit for all guidelines,
specifications and installation instructions.
4.3.1 Usage of reducers to connect the piping
to the outdoor unit
For connecting the piping to the outdoor unit, you (possibly) need
reducers. Please consult following table to see where you need
which reducer.
See the outdoor unit installation manual for more information.
Port 3MXM52
3MXM68
4MXM68 4MXM80 5MXM90
A X X X X
B CHYHBH05
(a)
X X X
C CHYHBH05
(a)
CHYHBH05
(a)
CHYHBH05
CHYHBH08
X
Port 3MXM52
3MXM68
4MXM68 4MXM80 5MXM90
D — CHYHBH05
(a)
CHYHBH05
CHYHBH08
CHYHBH05
CHYHBH08
E — — — CHYHBH05
CHYHBH08
X Connection of CHYHBH05 or CHYHBH08 is NOT allowed.
— Connection of CHYHBH05 or CHYHBH08 is NOT possible.
(a) Use the reducer accessory set from the accessory bag
delivered with the indoor unit.
4.3.2 To connect the refrigerant piping to the
indoor unit
1 Connect the liquid stop valve from the outdoor unit to the
refrigerant liquid connection of the indoor unit.
b
a
a Refrigerant liquid connection
b Refrigerant gas connection
2 Connect the gas stop valve from the outdoor unit to the
refrigerant gas connection of the indoor unit.
CHYHBH05+08
Liquid piping Ø6.4mm (1/4")
Gas piping Ø15.9mm (5/8")
4.4 Connecting water piping
4.4.1 Connecting the water piping of the indoor
unit
To connect the water piping for space heating
NOTICE
In case of old heating installations, it is recommended to
use a dirt separator. Dirt or sediment from the heating
installation can damage the unit and reduce its lifetime.
NOTICE
Do NOT use excessive force when connecting the piping.
Deformation of the piping can cause malfunctioning of the
unit.
