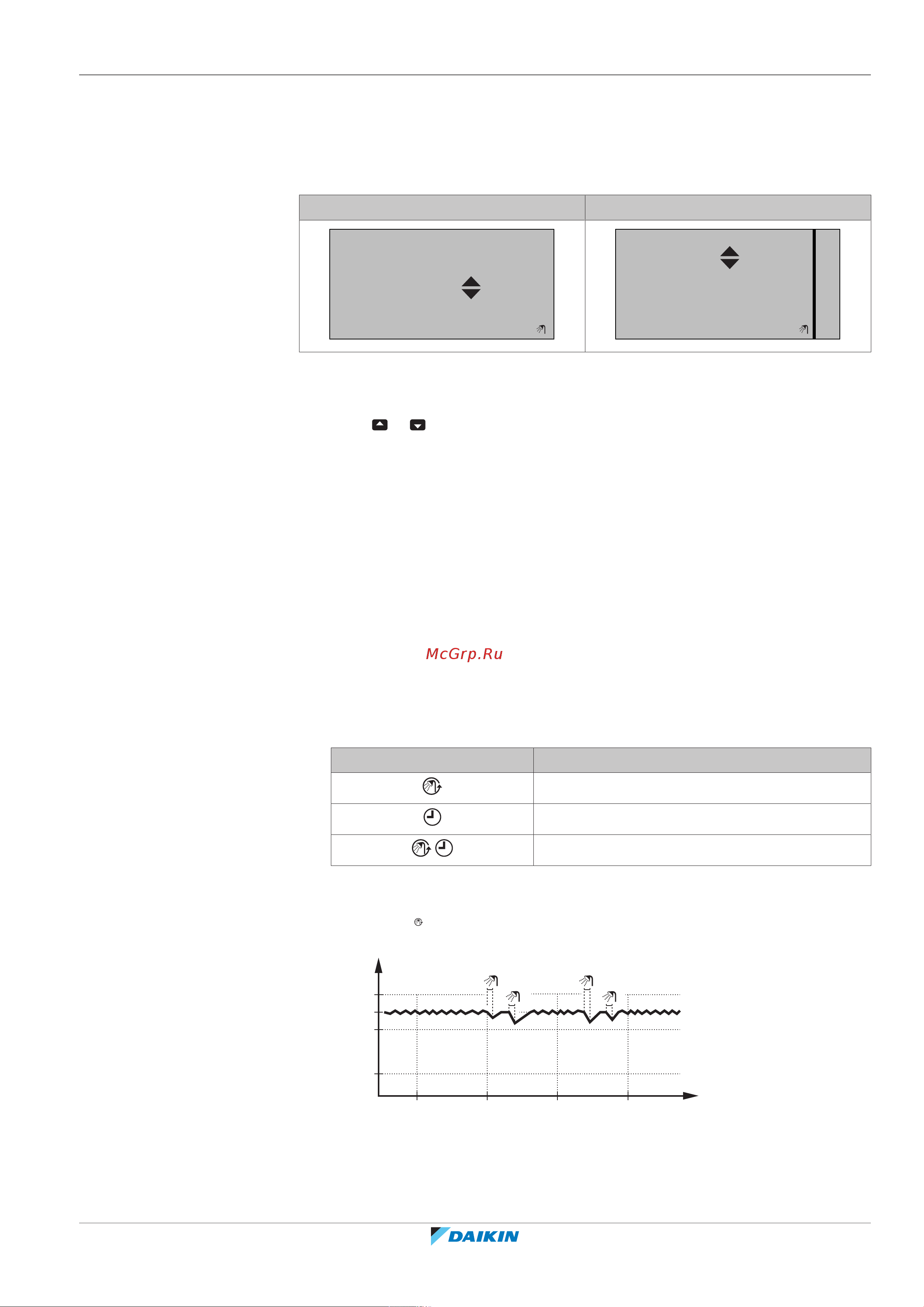

4 | Operation
User reference guide
27
EHYHBH05AF + EHYHBH/X05+08AF + EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355632-1E – 2020.10
Using the instant DHW home page
Not applicable for Switzerland
Depending on the user profile, the user interface gives you either a basic or a
detailed home page.
User profile = Basic User profile = Detailed
44°C
01:03
Tue
DHW
Desired temperature
01:03
44°C
Tue
DHW
Desired temperature
To adjust the instant DHW temperature
1 Go to the instant DHW home page.
2 Press or to adjust the instant DHW temperature (DHW).
The instant DHW set point temperature may NOT be below 40°C.
4.5.3 Tank
The following modes are only applicable if a tank is installed and are set by the
installer.
To determine which DHWtank mode you are using (method1)
Check the installer settings table filled in by the installer.
To determine which DHWtank mode you are using (method 2)
Prerequisite: User profile = Detailed.
1 Go to the DHWtank temperature home page (Tank).
2 Check which icons are displayed:
If… is displayed Then the DHWtank mode =…
Reheat mode
Scheduled mode
Scheduled + reheat mode
Reheat mode
In reheat mode ( ),the DHWtank continuously heats up to the temperature shown
on the DHWtank temperature home page (example: 50°C).
t
60°C
00:00 07:00
50°C
15°C
40°C
14:00 21:00
1
2
3
4
T
t
T
t
Domestic hot water tank temperature
t Time
