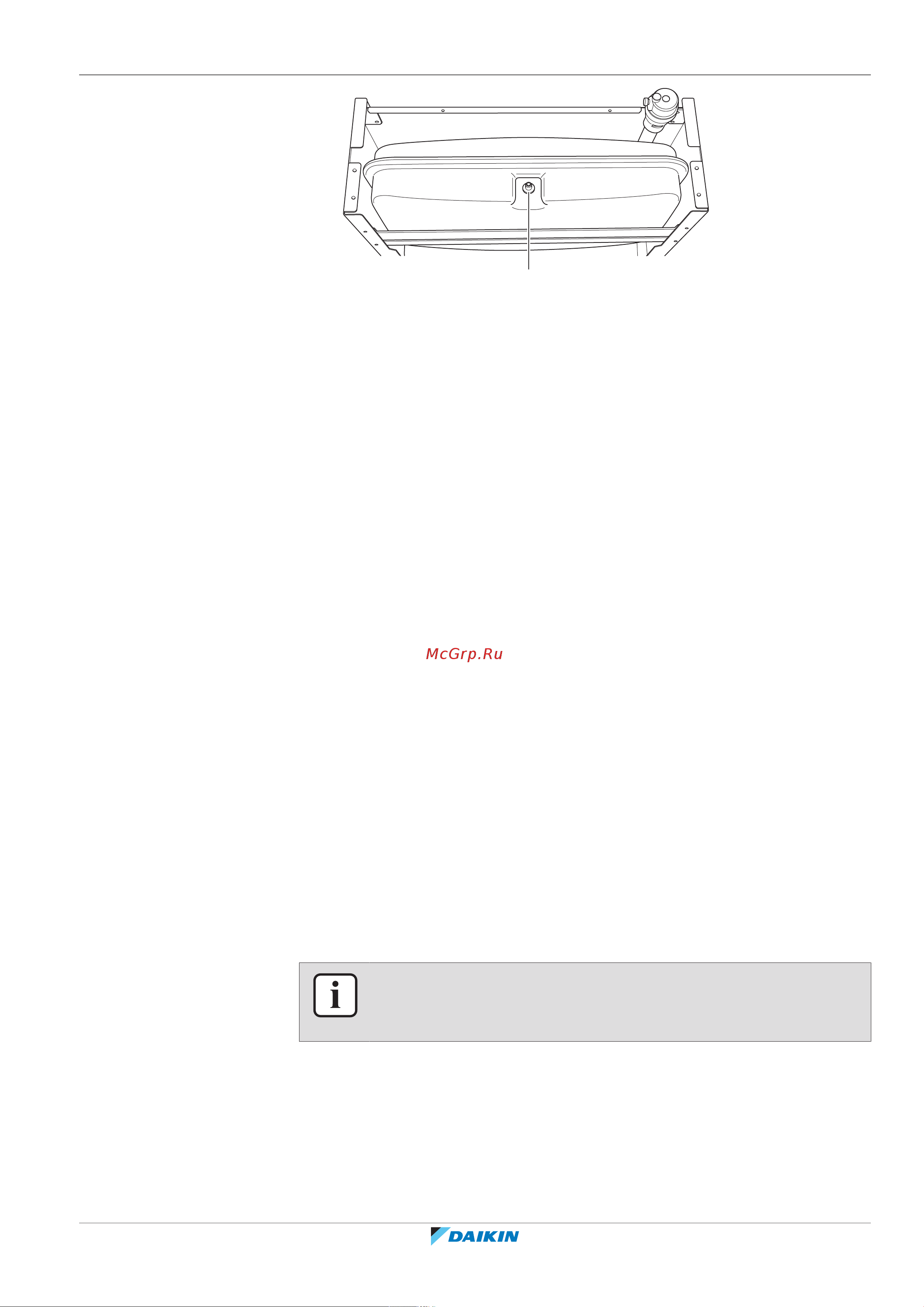

a Schrader valve

6.4.5 To check the water volume: Examples

Example 1

The indoor unit is installed 5m below the highest point in the water circuit. The

total water volume in the water circuit is 100l.

No actions or adjustments are required for either underfloor heating loops or

radiators.

Example 2

The indoor unit is installed at the highest point in the water circuit. The total water

volume in the water circuit is 350 l. Radiators are installed, so use the graph of

80°C.

Actions:

▪ Because the total water volume (350l) is more than the default water volume

(140l), the pre-pressure must be decreased.

▪ The required pre-pressure is:

Pg = (0.3+(H/10))bar = (0.3+(0/10))bar = 0.3bar

▪ The corresponding maximum water volume at 0.3bar is 205l. (See the graph in

the chapter above).

▪ Because 350 l is more than 205 l, the expansion vessel is too small for the

installation. Therefore install an extra vessel outside the installation.
