3
Eng
Completness check of the product
Before installing the monitor, be sure to check that it is complete and all
components are available.
The monitor kit includes:
Monitor
Manual
Wall mounting bracket
Set of wires with connectors for connection of alarm loops, doorbell
and home automation
Resistors for alarm loops
Installation screws
1 pc
1 pc
1 pc
1 pc
8 pcs
2 pcs
After verifying the device's completeness, you can switch to the monitor
connection.
To connect monitor you will need:
Electrical connection
An Ethernet UTP CAT5 or higher cable connected to a PoE switch or
to a normal switch/router.
Cable length recommendations
The maximum length of the UTP CAT5 cable segment shouldnot exceed 100 meters,
according to the IEEE 802.3 standard.
Power supply at +12 Volts DC if there isn't PoE.
Wires must be brought for the connection of alarm loops and home
automation (optional).
SH-46T / SH-47T

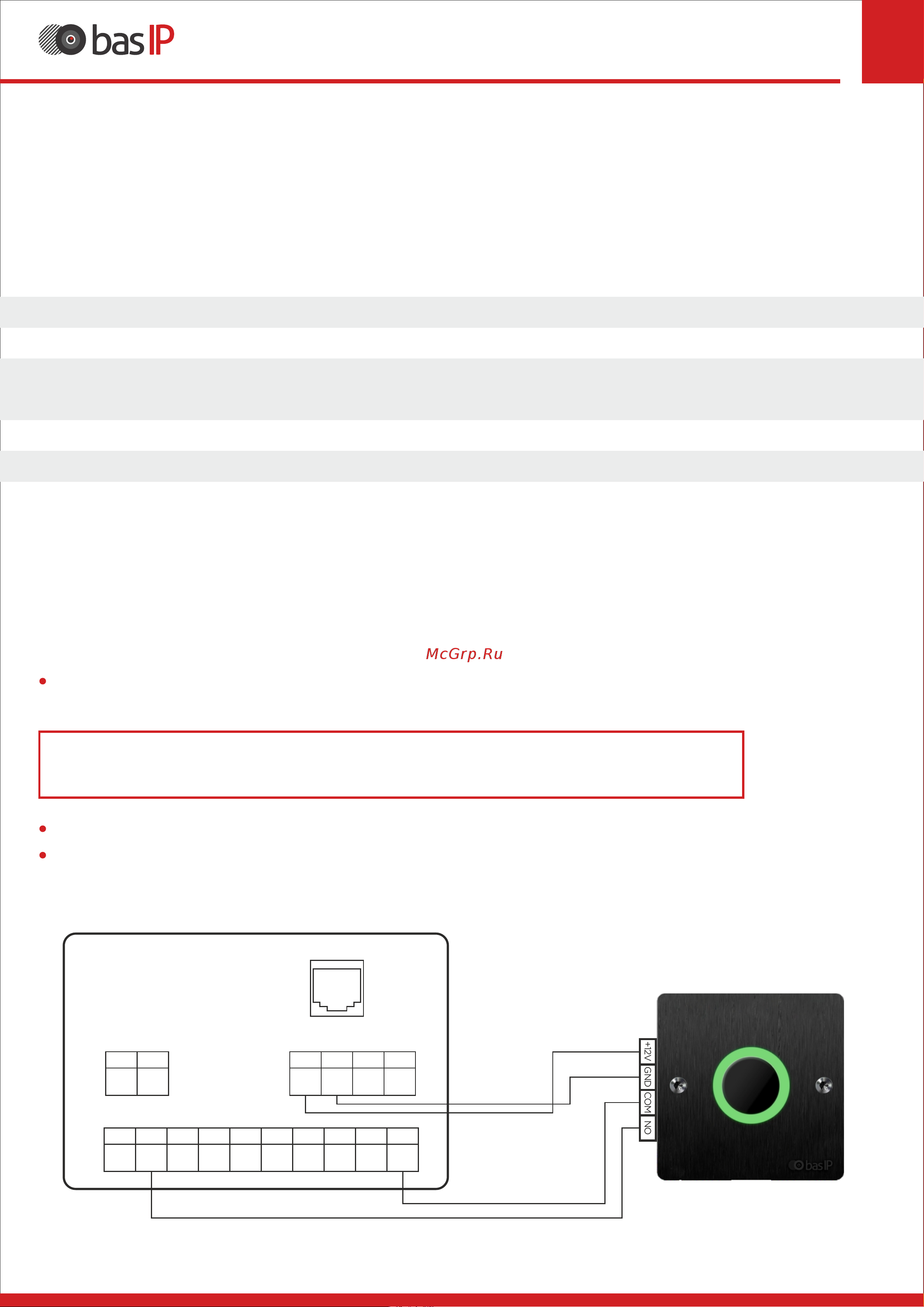

The connection scheme of all components
1
2
Power
+12V
GND
LAN (PoE)
RS485
1
2 3
4
+12V
GND
485+ 485-
1
2
3
4
5
6 7 8 9 10
GND
+Us
AL1 AL2 AL3 AL4 AL5 AL6 AL7
AL8
+12V
GND COM NO
Siren/Alarm Loops
Doorbell
