2 About the system
Operation manual
3
EGSAH/X06+10(U)DA9W(G)
Daikin Altherma 3 GEO
4P569812-2B – 2019.10
1 Starting from the home screen, turn the left dial and
go to Space heating/cooling.
4
Space heating/cooling
2 Press the left dial to enter the submenu.
3 Turn the left dial and go to Operation range.
Operation range
4.3
4 Press the left dial to enter the submenu.
2 About the system
Depending on the system layout, the system can:
▪ Heat up a space
▪ Cool down a space (if a heating/cooling heat pump model is
installed)
▪ Produce domestic hot water

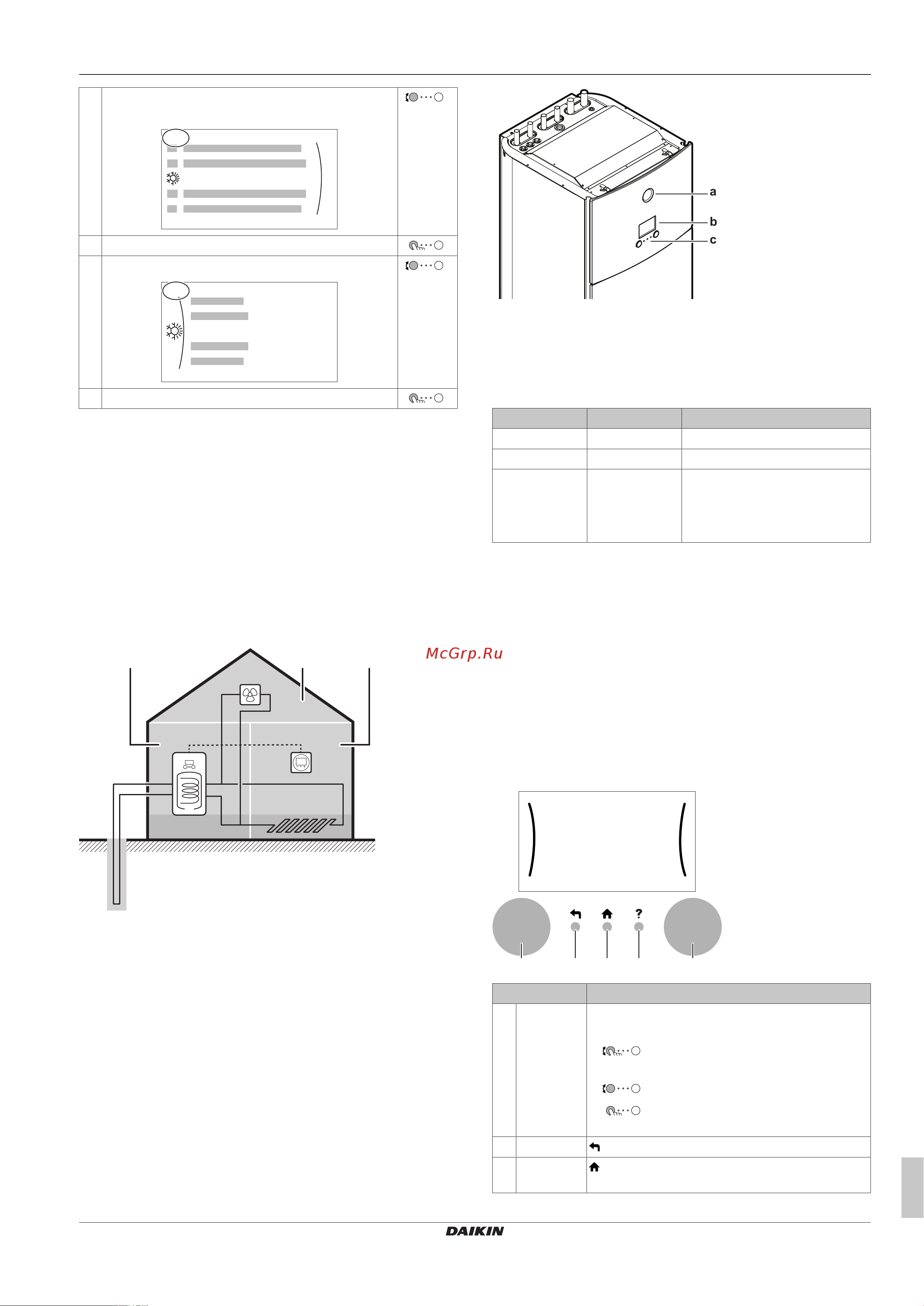

2.1 Components in a typical system
layout
g
A
db
a
f
e
c
BC
A Main zone. Example: Living room.
B Additional zone. Example: Bedroom.
C Technical room. Example: Garage.
a Brine loop
b Indoor unit heatpump
c Domestic hot water (DHW) tank
d User interface of the indoor unit
e Dedicated Human Comfort Interface (BRC1HHDA used as
room thermostat)
f Underfloor heating
g Radiators, heatpump convectors, or fancoil units
3 Operation
3.1 User interface: Overview
The user interface has the following components:
a
b
c
a Status indicator
b LCD screen
c Dials and buttons
Status indicator
The LEDs of the status indicator light up or blink to show the
operating mode of the unit.
LED Mode Description
Blinking blue Standby The unit is not in operation.
Continuous blue Operation The unit is in operation.
Blinking red Malfunction A malfunction occurred.
See "6.1To display the help text
in case of a malfunction"[413]
for more information.
LCD screen
The LCD screen has a sleeping function. After a certain time of non-
interaction with the user interface, the screen darkens. Pressing any
button or rotating any dial awakens the display. The time of non-
interaction differs depending on the user permission level:
▪ User or Advanced user: 15min
▪ Installer: 1h
Dials and buttons
You use the dials and buttons:
▪ To navigate through the screens, menus and settings of the LCD
screen
▪ To set values
a b c d e
Item Description
a Left dial The LCD shows an arc on the left side of the
display when you can use the left dial.
▪ : Turn, then press the left dial. Navigate
through the menu structure.
▪ : Turn the left dial. Choose a menu item.
▪ : Press the left dial. Confirm your choice
or go to a submenu.
b Back button : Press to go back 1 step in the menu structure.
c Home
button
: Press to go back to the home screen.
