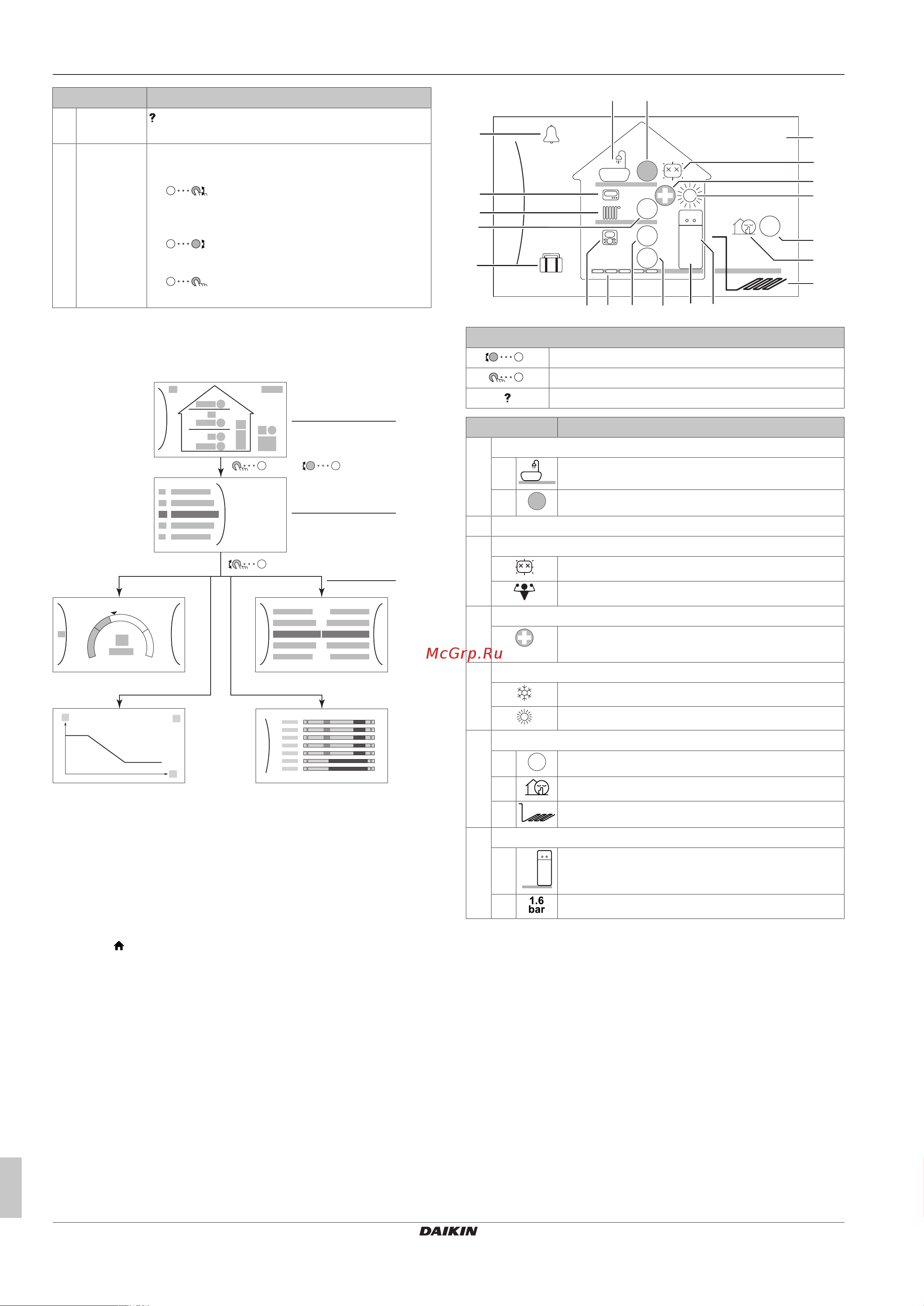

3 Operation
Operation manual
4
EGSAH/X06+10(U)DA9W(G)
Daikin Altherma 3 GEO
4P569812-2B – 2019.10
Item Description
d Help button : Press to show a help text related to the current
page (if available).
e Right dial The LCD shows an arc on the right side of the
display when you can use the right dial.
▪ : Turn, then press the right dial. Change
a value or setting, shown at the right side of the
screen.
▪ : Turn the right dial. Navigate through
the possible values and settings.
▪ : Press the right dial. Confirm your
choice and go to the next menu item.
3.2 Possible screens: Overview
The most common screens are as follows:
+
–
a
OR
b
c
c2
c4
c1
c3
a Home screen
b Main menu screen
c Lower level screens:
c1: Setpoint screen
c2: Detailed screen with values
c3: Screen with weather-dependent curve
c4: Screen with schedule
3.2.1 Home screen
Press the button to go back to the home screen. You see an
overview of the unit configuration and the room and setpoint
temperatures. Only symbols applicable for your configuration are
visible on the home screen.
6
1.6
bar
26 Feb 2019
22:19
55
21
45
i
k
j1
j2
j3
18
b
c
f3
f2
g1
f1
e
h2 h3 h4 g2h1
a2a1
d
Possible actions on this screen
Go through the list of the main menu.
Go to the main menu screen.
Enable/disable breadcrumbs.
Item Description
a Domestic hot water
a1 Domestic hot water
a2
55
Measured tank temperature
(1)
b Current date and time
c Disinfection / Powerful
Disinfection mode active
Powerful operation mode active
d Emergency
Heat pump failure and system operates in
Emergency mode or heat pump is forced off.
e Space operation mode
Cooling
Heating
f Outdoor / quiet mode
f1
6
Measured outdoor temperature
(1)
f2 Quiet mode active
f3 Outdoor brine piping
g Indoor unit / domestic hot water tank
g1 Floor-standing indoor unit with integrated tank
g2 Water pressure
