7.3. Weights
Models: GCU4070PXB1
Packaged weight: 302 kg
Unit Dry weight: 285 kg
8.

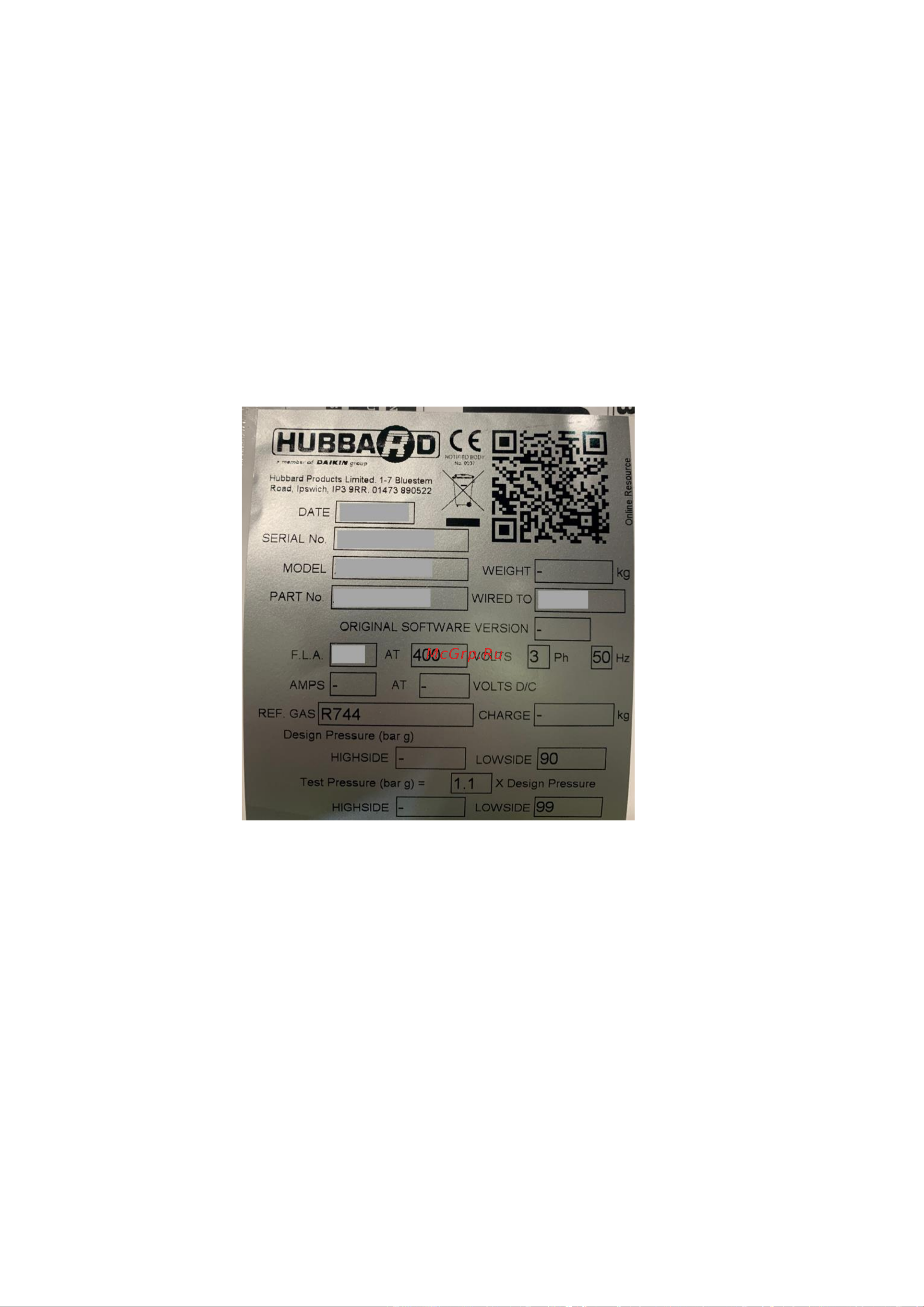

Serial Plate Information
The unit is supplied with necessary warning and attention plates. Serial plate is supplied with the weight of
the unit and other information as showing below.
Page 11 of 177
Copyright HPL January 2021
P4115S Rev 02
