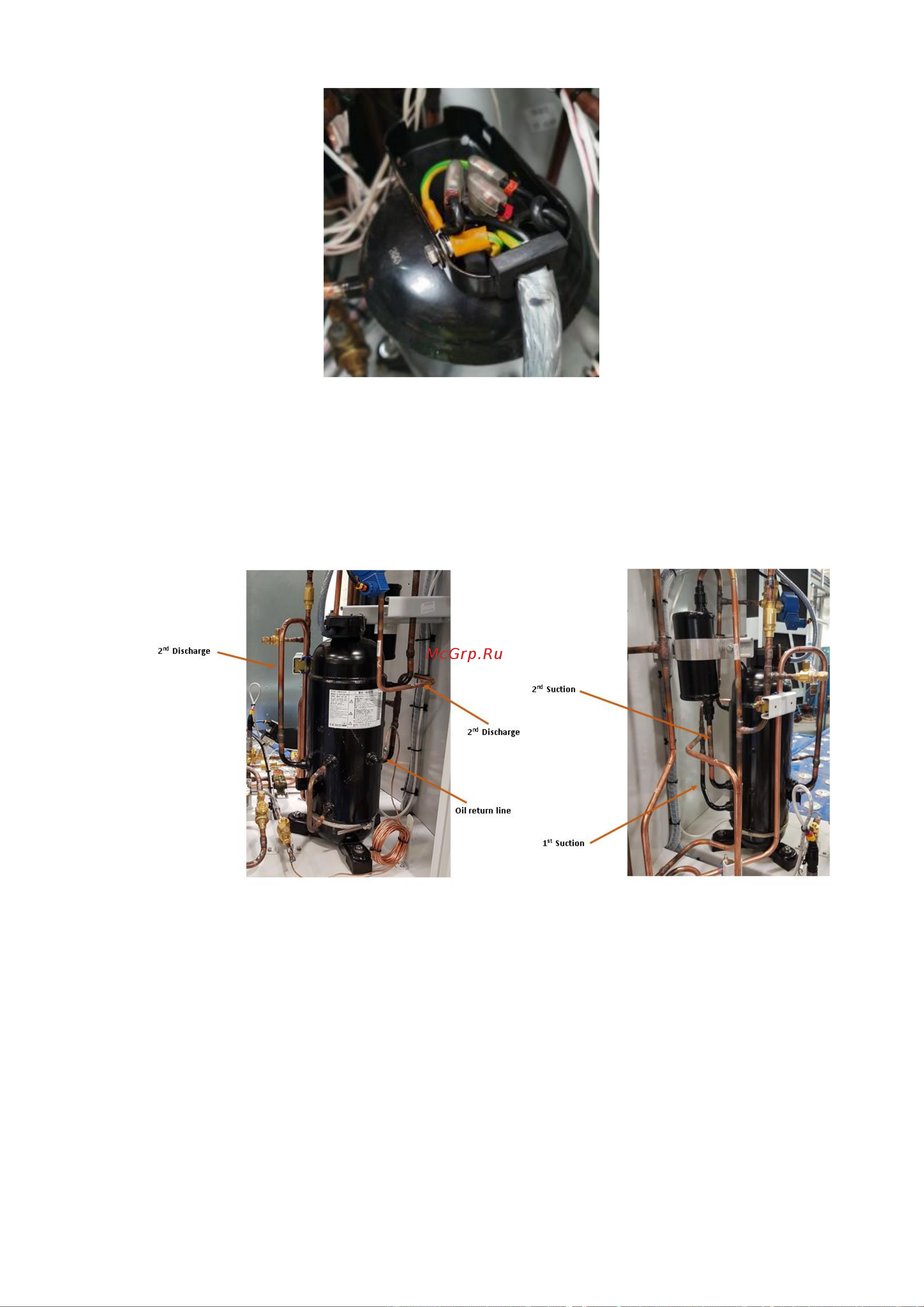

Mechanically Isolate the Compressor
4. Undo any pipe clamps of pipework running to the compressor.
5. Unsweat/Debraze pipe connections below.
For Model GCU4070PXB1 :
6. Undo 3 off M8 screws using 13mm socket.
7. Rotate compressor so connections are clear of pipework and lift out, when fitting new compressor ensure metal
sleeves are fitted in the rubber compressor feet prior to bolting the compressor down to the base plate.
8. Rebraze pipe lines to the compressor ports then ensure pipe brackets are tightened.
Page 22 of 177
