General-Fujitsu ASH9RSJCW [6/17] R e f r i g e r a n t s y s t e m d i a g r a m
![General-Fujitsu ASH12RSJCW [6/17] R e f r i g e r a n t s y s t e m d i a g r a m](/views2/1804945/page6/bg6.png)

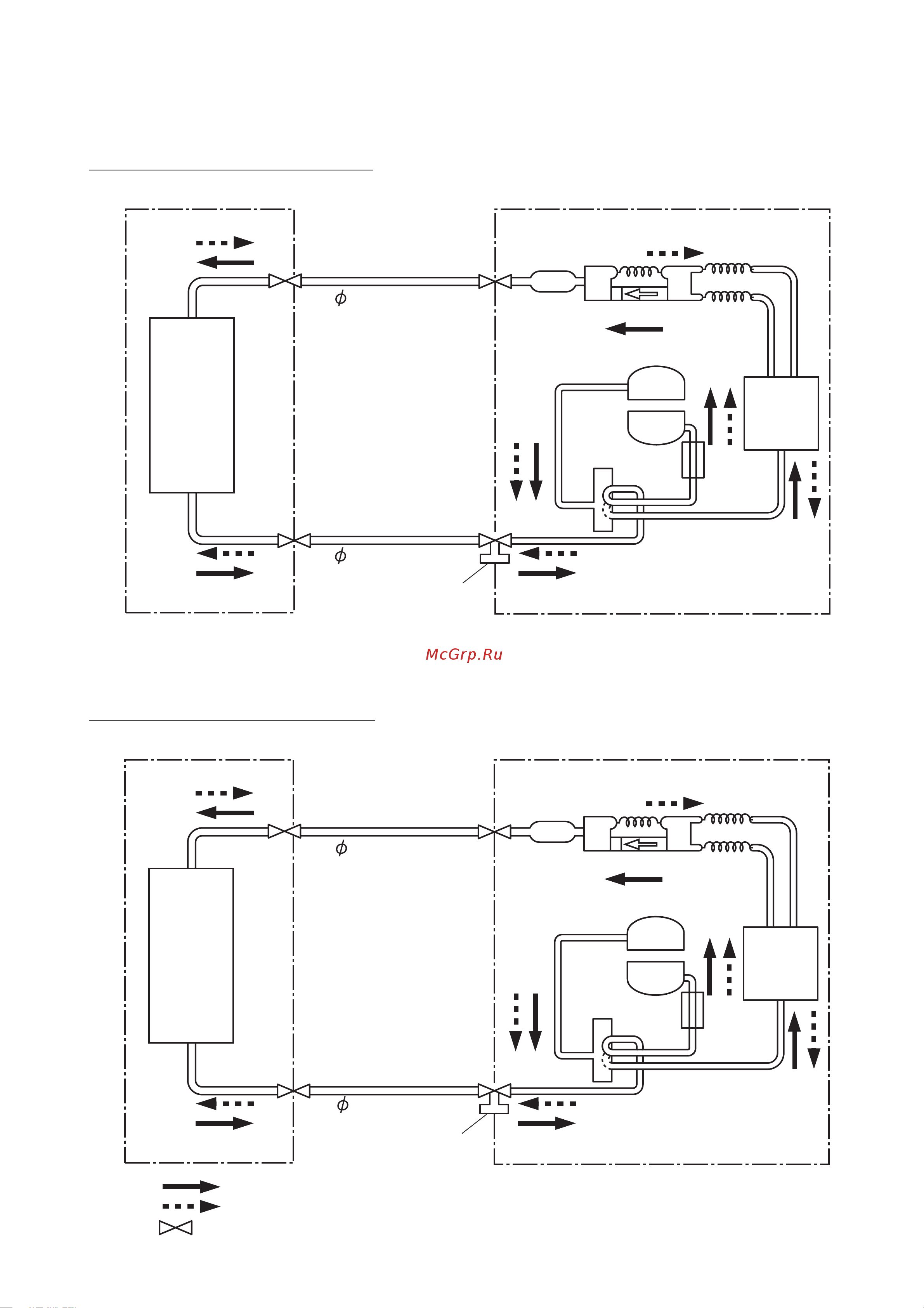

REFRIGERANT SYSTEM DIAGRAM
Model : ASH9RSJCW / AOH9RSJC
Models : ASH12RSJCW / AOH12RSJC
Refrigerant pipe
12.7mm(1/2")
Refrigerant pipe
Charging valve
Cooling
Heating
: Flare coupling
3-Way
valve
4-Way
valve
2-Way
valve
Strainer
Compressor
Check valve
Capillary tube
for heating
Capillary tube
for heating and cooling
OUTDOOR UNITINDOOR UNIT
Condenser
Evaporator
Refrigerant pipe
9.52mm(3/8")
Refrigerant pipe
6.35mm(1/4")
Charging valve
3-Way
valve
4-Way
valve
2-Way
valve
Strainer
Compressor
Check valve
Capillary tube
for heating
Capillary tube
for heating and cooling
OUTDOOR UNITINDOOR UNIT
Condenser
Evaporator
6.35mm(1/4")
2003.07.04
- 5 -
