General-Fujitsu AOHZ24LBT [5/27] Refrigerant system diagram
![General-Fujitsu AOHZ24LBT [5/27] Refrigerant system diagram](/views2/1804969/page5/bg5.png)

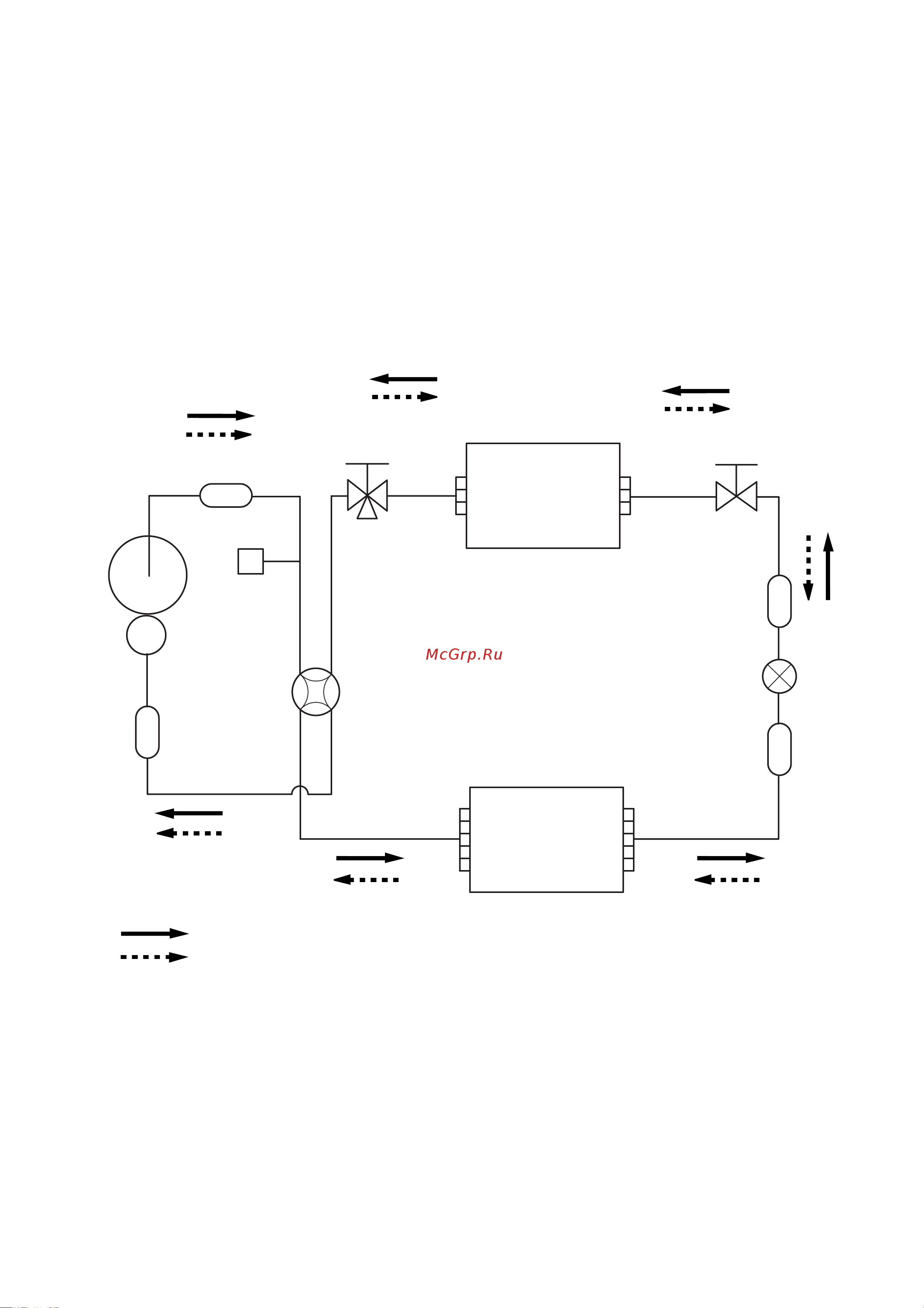

REFRIGERANT SYSTEM DIAGRAM
3-Way valve
(Small)
3-Way valve
(Large)
Strainer
Strainer
Muffler
Pressure
switch
4-Way valve
Expansion valve
Heat exchanger
( INDOOR )
Heat exchanger
( OUTDOOR )
Sub-accumulator
Compressor
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 5/8" (15.88 mm)
Cooling
Heating
2006.10.18 4
