P A R T S
2
1
3
6
7
8
4
5

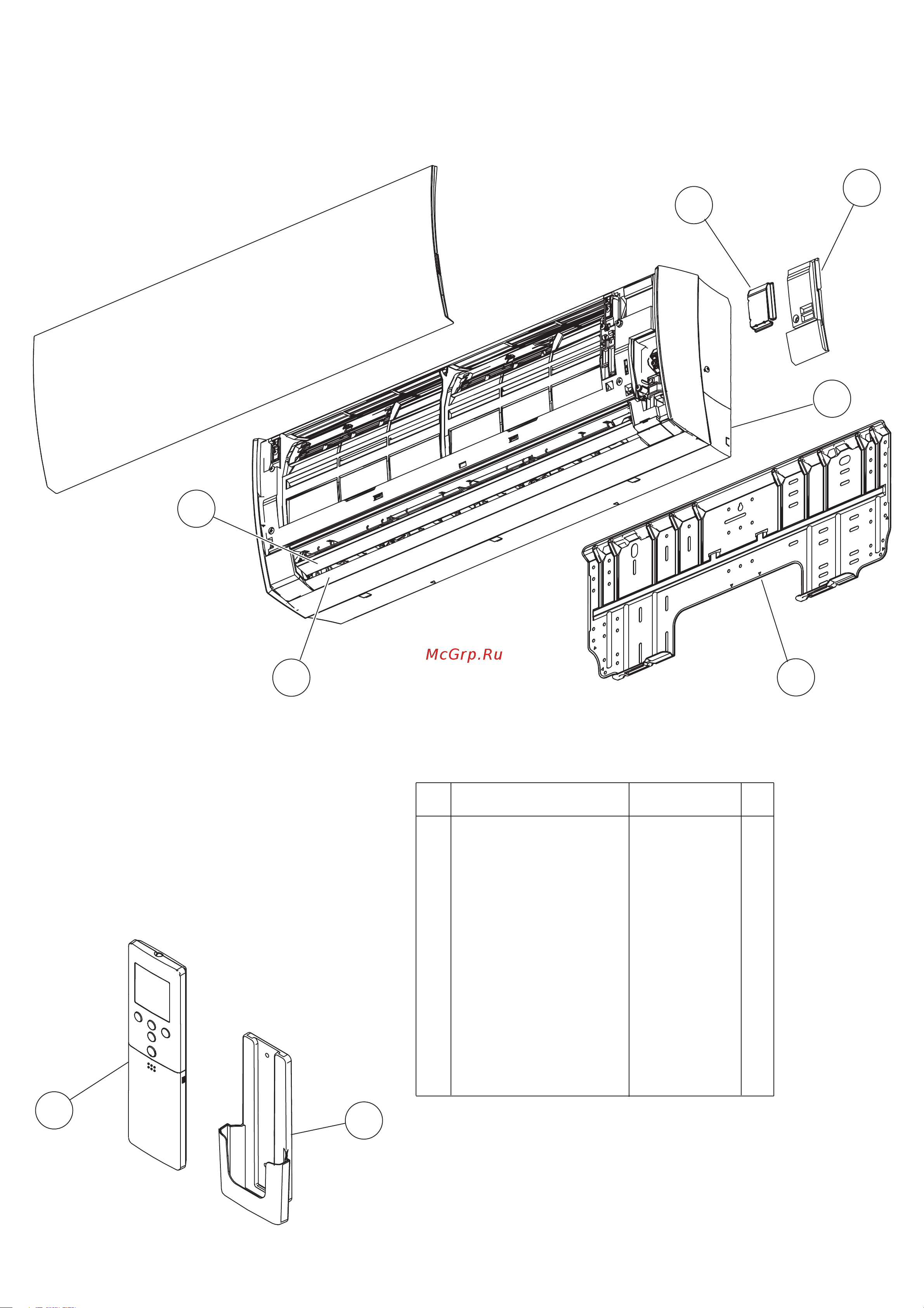

INDOOR UNIT
2011.03.08 12
5
2
6
4
3
Under Cover 9318879001
1 Bracket Panel 9318913002
7
Wire Cover 9318911008
8
Wire Shield 9318919004
-- Air Clean Filter Assy 9317250009
Remote Control 9319207018
Remote Control Holder 9318912005
Ref. Description Part number
Louver U 9318880007
Louver Z 9318881004
