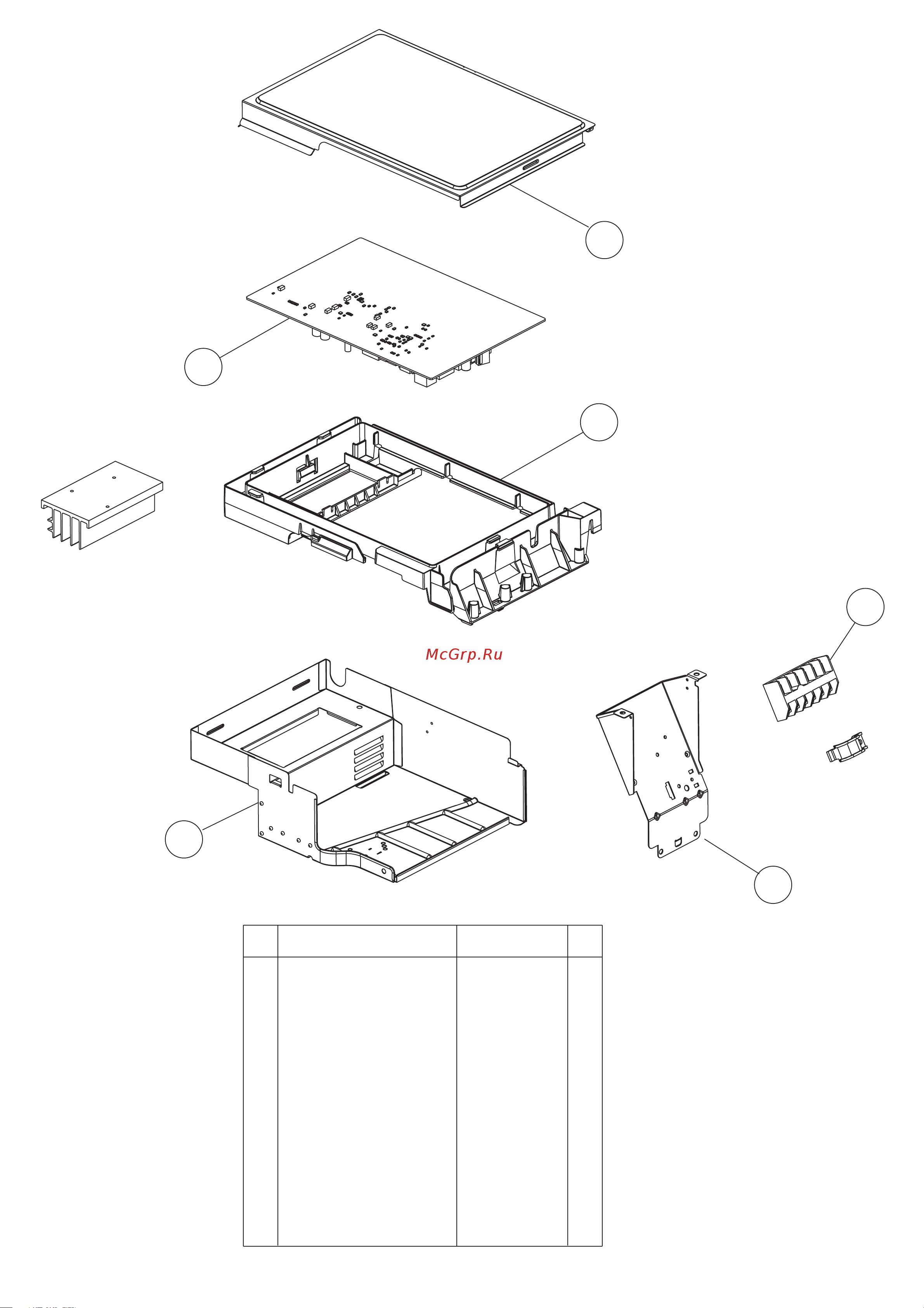

General-Fujitsu ASYG07LUCA [20/22] Outdoor unit
![General-Fujitsu ASYG07LUCA [20/22] Outdoor unit](/views2/1805390/page20/bg14.png)
43
44
42
41
45
46
OUTDOOR UNIT
2011.03.03 19
-- Outdoor Thermistor 9900565008
45 Terminal Bracket 9317816038
Terminal 990043502846
Controller PCB Assy (07)
-- Thermistor Assy 9900628000
41 Sealed Panel 9318181012
44 9332247008Inverter Case Assy
42 9708683058
Controller PCB Assy (09)
42 9708683065
43 PCB Holder 9318182002
Ref. Description Part number
