General-Fujitsu ASYG07LUCA [9/22] Outdoor pcb circuit diagram
![General-Fujitsu ASYG07LUCA [9/22] Outdoor pcb circuit diagram](/views2/1805390/page9/bg9.png)
BROWN or BLUE
YELLOW
WHITE
BLACK
RED
BLACK
BLACK
RED
BLUE
ORANGE
YELLOW
WHITE
RED
WHITE
BLACK
UL3271 AWG16 x 3
1
2
3
4
5
6
7
1
2
3
4
5
1
2
1
2
3
4
1
2
3
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
UL1015 AWG20 BLACK
UL1015 AWG20 WHITE
UL1015 AWG20 RED
UL1015 AWG14 BLACK
UL1015 AWG14 WHITE
UL1015 AWG16 GREEN
CN71
B04B-PL I RK-1
RED
CN70
B03B-PL I SK-1
WHITE
CN40
B05B-PL I SK-1
WHITE
CN800
B5 ( 7-2.3 ) B-XASK-1-A
WHITE
CN30
2-1747052-3 or 1747052-1
BLUE or WHITE
4-WAY VALVE
ELECTRIC
EXPANSION VALVE
DC FAN
MOTOR
COMPRESSOR
M
F M
M
L
N
SERIAL
TERMINAL
EARTH
POWER SOURCE
AC230V
50Hz
1
2
3
L
N
THERMISTOR
( PIPE TEMP. )
THERMISTOR
( DISCHARGE TEMP. )
THERMISTOR
( OUTDOOR TEMP. )
REACTOR
AOYG07,09,12LUC : 13mH, 8A
UL3271
AWG14
RED
UL3271
AWG14
WHITE
W10
B
W11
B
W101
B
W102
B
W4
B
W1
B
W2
B
W3
B
W9
B
W8
B
W7
B
U
V
W
WIRE W/TERMINAL ( CORE )
1015#22
GREEN
FRAME
EMI FILTER EMI FILTER
TO INDOOR UNIT
CONTROLLER PCB ASSEMBLY
AOYG07LUC : K10BO-1004HUE-C1
AOYG09LUC : K10BO-1005HUE-C1
INVERTER ASSEMBLY
AOYG07LUC : EZ-01011HUE
AOYG09LUC : EZ-01012HUE

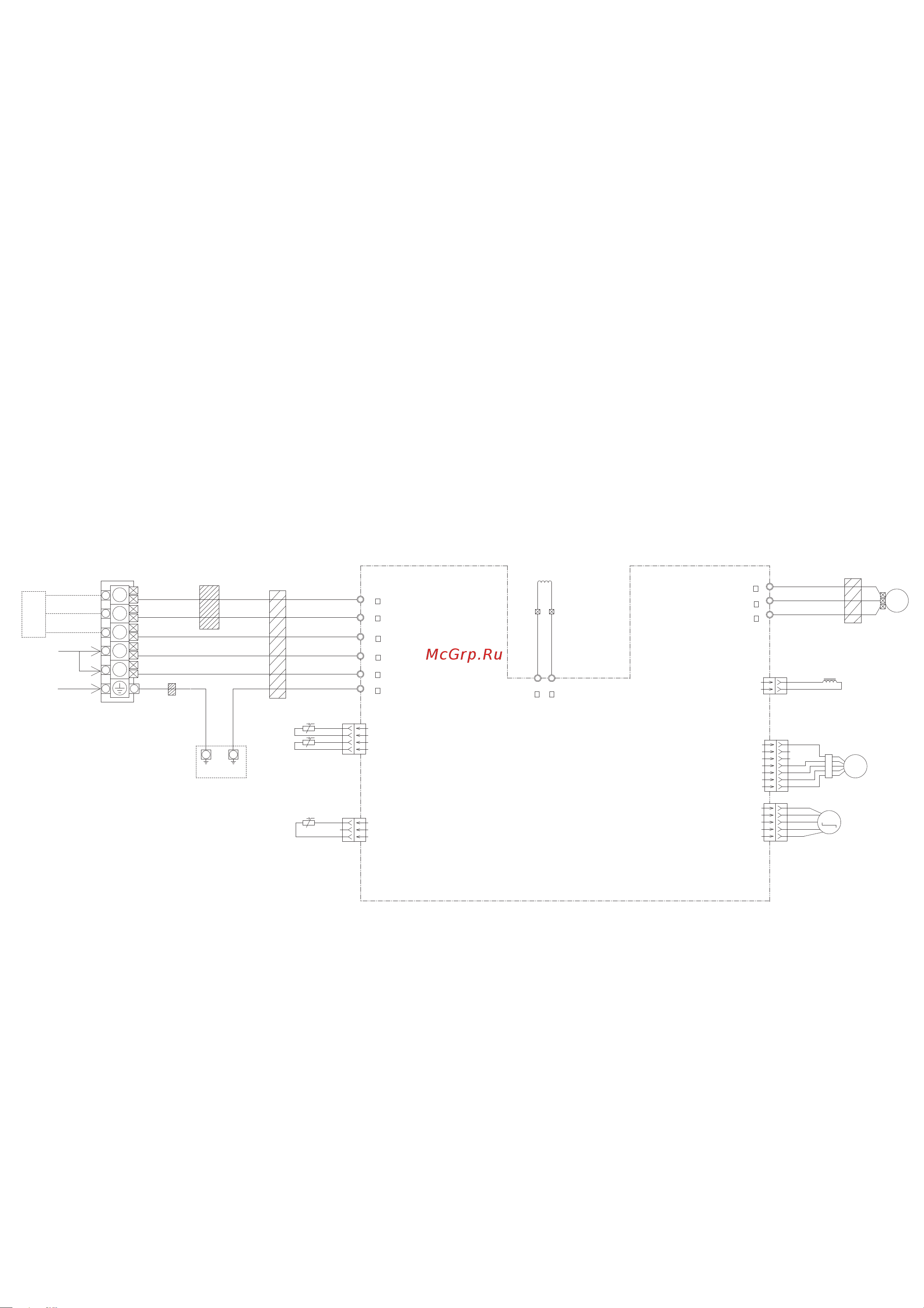

O U T D O O R P C B
C I R C U I T D I A G R A M
2011.04.11 8
EMI FILTER
AOYG09LUC only
AOYG14LUC : 15mH, 10A
