General-Fujitsu AOHR14LGC [12/20] Indoor unit front panel assy
![General-Fujitsu AOHR14LGC [12/20] Indoor unit front panel assy](/views2/1805592/page12/bgc.png)

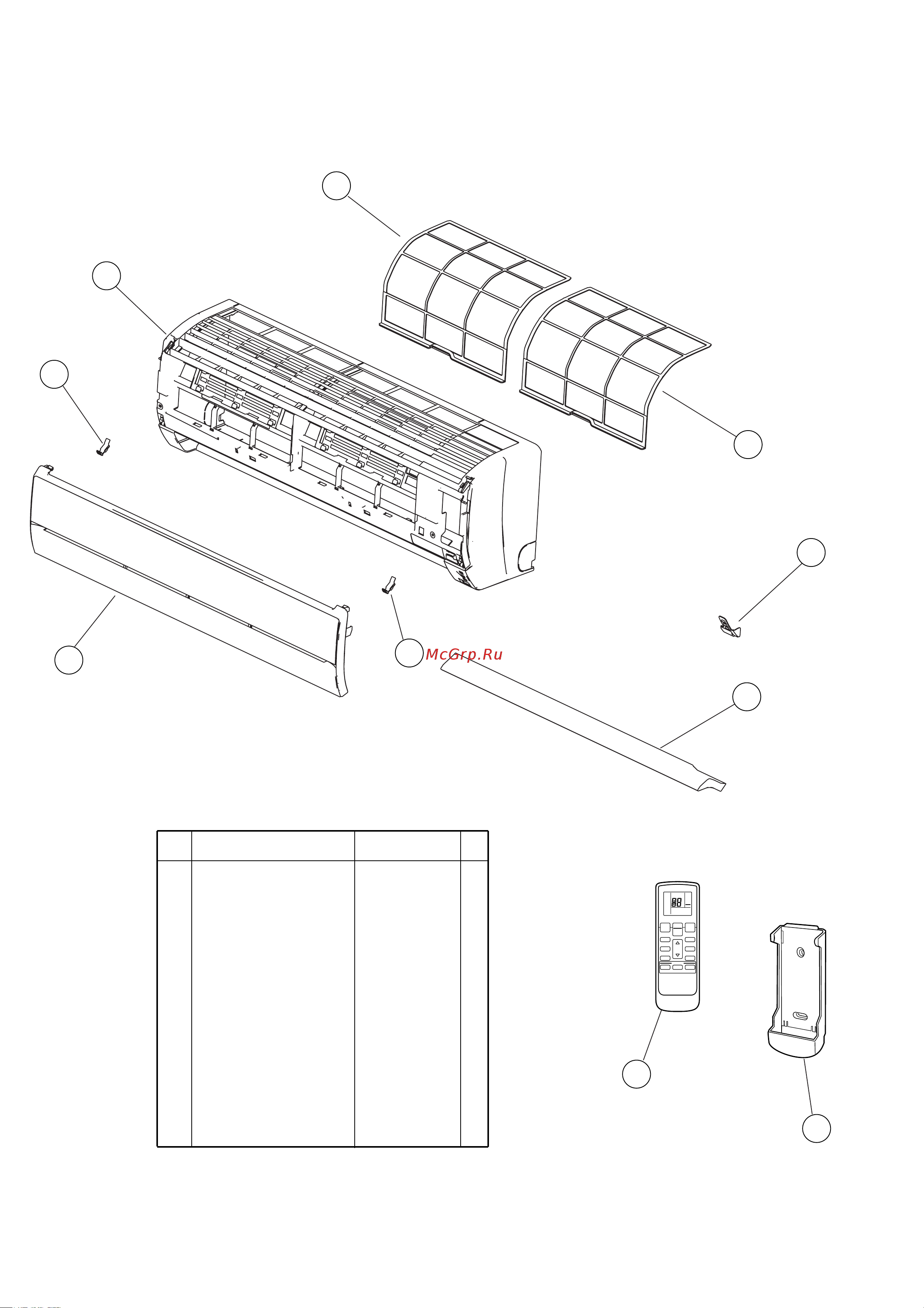

PARTS
1
2
5
6
7
8
3
3
4
4
INDOOR UNIT
Front panel assy
2008.04.25 11
4 Air Filter 9316562004
1 Front Panel 9316558014
5 Receiver Window 9316588004
3
6
Clamper (Grille) 9316906006
2 Intake Grille Assy 9317428057
Panel Cover 9316561007
-- Wire Cover 9316559004
-- Air Clean Filter Assy 9317250009
-- Wire Shield 9316584006
7 Remote Control 9316397026
8
Remote Control Holder
9305642045
