![General-Fujitsu AOHR14LGC [14/20] Indoor unit casing assy](/img/pdf.png)
General-Fujitsu AOHR14LGC [14/20] Indoor unit casing assy
![General-Fujitsu AOHR14LGC [14/20] Indoor unit casing assy](/views2/1805592/page14/bge.png)
39
27
29
29
28
30
31
34
37
24
38
32
25
21
22
26
40
35
23
33
36

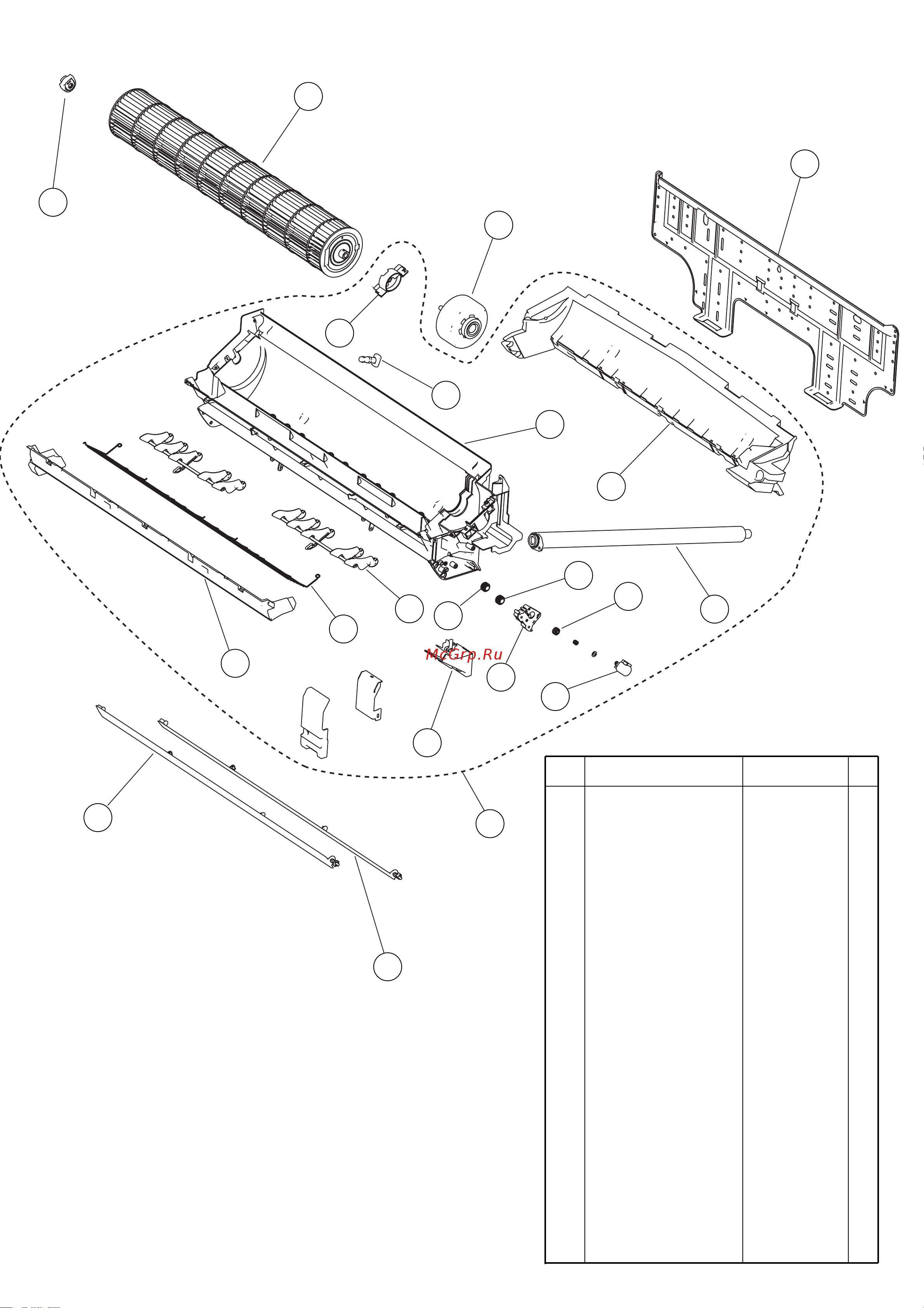

INDOOR UNIT
Casing assy
2008.04.25 13
24 Cable Guide 9316567009
25 Casing Cover B 9316569003
26 Casing Cover F 9316570009
27 R and L Louver B 9316961005
34 Fan Guard 9317182003
35 Fan Motor 9602704002
36 Crossflow Fan Assy 9316830004
37 Shaft Holder C 9306628017
38 Louver U 9316572003
39 Louver Z 9316573000
40 Bracket Panel 9316590007
21 Casing Assy 9316892026
22 Casing 9316563001
23 Motor Cover 9316568006
28 Louver Gear Holder 9316575004
29 Louver Gear 9316574007
30 Gear A 9309994003
31 Motor Step 9900139117
32 Drain Hose Assy 9316904002
33 Drain Cap 9316177017
