General-Fujitsu AOHR14LGC [15/20] Indoor unit control box
![General-Fujitsu AOHR14LGC [15/20] Indoor unit control box](/views2/1805592/page15/bgf.png)
43
48
44
42
41
46
47
45

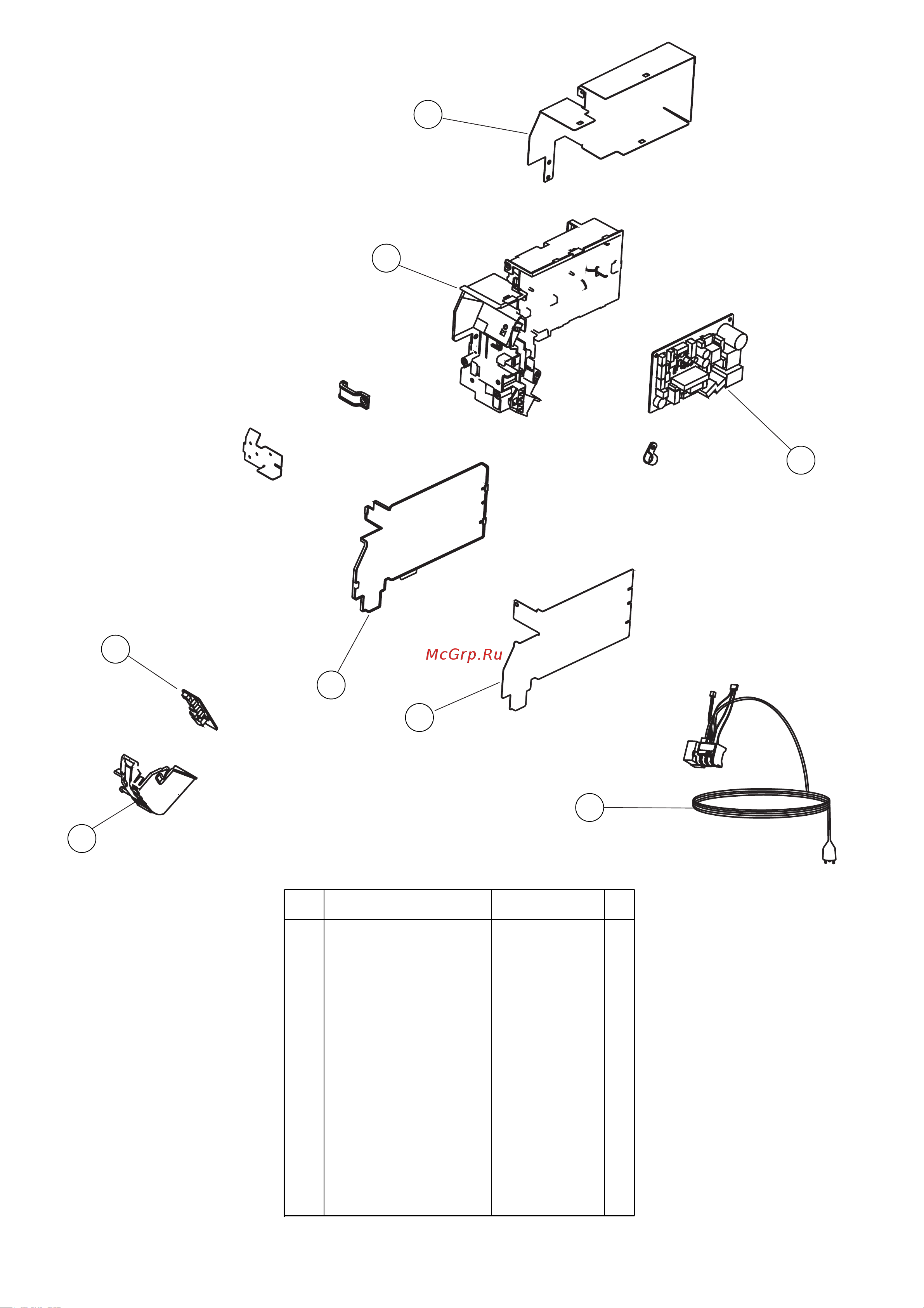

INDOOR UNIT
Control box
2008.05.08 14
47 Display PCB Assy 9707649017
46 Display Case 9316587007
48 Power Cord Assy 9900456009
45
Controller PCB Assy
9707645149
-- Thermistor Assy 9900459017
--
Room Thermistor Holder
9316895003
-- Earth Terminal 9316586000
41 Control Box 9316582002
42 Box Shield 9316580008
43 Control Cover 9316583009
44 Cover Shield 9316581005
Ref. Description Part number
