![Haier HSU-09LD03 [13/70] Indoor unit](/img/pdf.png)
Haier HSU-09LD03 [13/70] Indoor unit
![Haier HSU-09LD03 [13/70] Indoor unit](/views2/1806507/page13/bgd.png)
Description, dimension and function of main components and accessories
Description and function of main components and accessories
Содержание
- Air conditioner 1
- Content 1
- Engineering data 1
- Models 1
- Split type air conditioner 1
- Page 1 2
- Description of product model coding and series introduction 3
- Page 2 3
- C series introduction 4
- Comfortable wide angle airflow 4
- Convenience 4
- Description of product model coding and series introduction 4
- Energy efficient 4
- Page 3 4
- Quiet operation 4
- Standard operating conditions 4
- Wide variety of functions 4
- Z health air purifying 4
- Page 4 5
- Hitachi 6
- Kh134vfrc 6
- Specification 6
- Specifications 6
- X250x182mm 6
- X272x330mm 6
- X285x182mm 6
- X366x484mm 6
- Hitachi 7
- Kh134vfrc 7
- Specification 7
- Specifications 7
- X250x182mm 7
- X272x330mm 7
- X285x182mm 7
- X366x484mm 7
- P17s225ana 8
- Specification 8
- Specifications 8
- X250x182mm 8
- X272x330mm 8
- X285x182mm 8
- X366x484mm 8
- P16s225ana 9
- Specification 9
- Specifications 9
- X250x182mm 9
- X272x330mm 9
- X285x182mm 9
- X366x484mm 9
- R343al 55s 10
- Specification 10
- Specifications 10
- X250x182mm 10
- X272x330mm 10
- X285x182mm 10
- X366x484mm 10
- Qx 23b030 11
- Specification 11
- Specifications 11
- X250x182mm 11
- X272x330mm 11
- X285x182mm 11
- X366x484mm 11
- Air filter 13
- Description and function of main components and accessories 13
- Description dimension and function of main components and accessories 13
- Drain hose 13
- Emergency switch manual 13
- Indoor unit 13
- Inlet grille 13
- Operation mode indicator 13
- Outdoor unit 13
- Power indicator timer mode indicator 13
- Remote signal receiver 13
- Test running switch manual 13
- Vertical flap 13
- Net dimension for indoor unit 14
- Knock down drawings 16
- Knock down drawings for indoor unit 16
- Knock down drawings 23
- Hsu 09ld03 hsu 12ld03 24
- Knock down drawings 24
- Konck down drawings for out door unit models hsu 07ld03 24
- Ò³11 26
- Ò³10 28
- Ò³12 29
- Indoor unit 32
- Operation mode indicator 32
- Outdoor unit 32
- Parts and functions 32
- Confirmation indicator 33
- Load the battery 33
- Loading of the battery 33
- Operation 33
- Power failure resume please set and apply as necessary 33
- Put on the cover again 33
- Remote controller s operation 33
- Remove the battery cover 33
- Setting method 33
- To cancel 33
- Buttons and display of the remote controller 34
- Clock set 34
- Operation 34
- Parts and functions 34
- Auto run fan operation 35
- Operation 35
- Comfortable sleep 36
- In cool mode 36
- In heat mode 36
- Operation 36
- Power failure resume function 36
- Comfortable sleep 37
- In cool mode 37
- In heat mode 37
- Operation 37
- Power failure resume function 37
- 1 after unit start select your desired operation mode 38
- 2 press timer button to change timer mode 38
- 3 time setting for timer on 38
- 4 time confirming for timer on 38
- 5 time setting for timer off 38
- 6 time confirming for timer off 38
- Operation 38
- Timer on off 38
- To cancel timer mode 38
- 2 timer mode selection 39
- 3 timer setting 39
- 4 confirming your setting 39
- Operation 39
- Set clock correctly before starting timer operation referring to page 4 39
- Timer on off 39
- Timer operation 39
- To cancel timer mode 39
- Cool heat and dry operation 40
- Ilh i il ill 40
- Operation 40
- V i o q 40
- 5 air flow direction adjustment 41
- 6 unit stop 41
- Cautions 41
- Left and right air flow adjustment manual 41
- Operation 41
- Up and down use remote controller 41
- Before asking for service check the following first 43
- Trouble shooting 43
- Better use of air conditioner 44
- Maintenance 44
- Attach new air purifying filter 45
- Attach the standard air filter as 45
- Close the inlet grille 45
- Detach the air purifying filter 45
- Detach the standard air filter 45
- Its front side faces to the front 45
- Maintenance 45
- Open the inlet grille 45
- Brief introduction to electric control function 47
- Brief introduction to electric control function 48
- Maintenance 49
- Brief introduction to electric control function 50
- Brief introduction to electric control function 51
- Brief introduction to electric control function 52
- B c r s 53
- Compressor terminal 53
- Wiring diagram dr split unit dutdgqr 53
- Dotted line 54
- Removal of the socket connector 54
- Socket connector marked 54
- The lock catch and pull it backward 54
- Wiring diagram gf split unit indoor 54
- With x has lock catch when removing press 54
- Noise level test chart 58
- Noise level test chart and air velocity distribution 58
- Installation manual of room air conditioner 61
- Necessary tools for installation 61
- Check for installation and test run 62
- Check items for test run 62
- Cutting and flaring work of piping 62
- On drainage 62
- Power source installation 62
- Check for installation and test run 63
- Check items for test run 63
- Cutting and flaring work of piping 63
- On drainage 63
- Power source installation 63
- Outdoor unit 64
- Purging method 64
- Attaching drain elbow 65
- Connection 65
- Connection of pipes 65
- Nstallation of outdoor unit 65
- Outdoor unit 65
- Connecting the indoor outdoor electric cable 66
- Cwhen connecting the cable before installing the indoor unit2 66
- Indoor unit 66
- Removing the wiring cover 66
- When connecting the cable after installing the indoor unit 66
- Drawing of pipe 67
- Fixing the indoor unit body 67
- Indoor unit 67
- Installation of the indoor unit 67
- Left left rear piping 67
- Otherdirection piping 67
- Rear piping 67
- Fitting of the mounting plate and positioning of the wall hole 68
- Indoor unit 68
- Making a hole on the wall and fitting the piping hole cover 68
- Q when the mounting plate is fixed to side bar and lintel 2 68
- When the mounting plate is first fixed 68
- When the paper pattern is used j 68
- Ndoor unit 69
- Outdoor unit 69
- Power source 69
- Q fixing of outdoor unit j 69
- Selection of installation place 69
- Selection of pipe 69
Похожие устройства
- Haier HSU-09LD03 Руководство по эксплуатации
- Haier HSU-09RD03 Инструкция по эксплуатации
- Haier HSU-09RD03 Инструкция по монтажу
- Haier HSU-09RD03 Технические данные
- Haier HSU-09RD03 Руководство по эксплуатации
- Haier HSU-12RD03 Инструкция по эксплуатации
- Haier HSU-12RD03 Инструкция по монтажу
- Haier HSU-12RD03 Технические данные
- Haier HSU-12RD03 Руководство по эксплуатации
- Haier HSU-12LD03 Инструкция по монтажу
- Haier HSU-12LD03 Инструкция по эксплуатации
- Haier HSU-12LD03 Технические данные
- Haier HSU-12LD03 Руководство по эксплуатации
- Haier HSU-18CK03 Технические данные
- Haier HSU-18CK03 Инструкция по эксплуатации
- Haier HSU-18CK03 Руководство по эксплуатации
- Haier HSU-18HK03 Технические данные
- Haier HSU-18HK03 Инструкция по эксплуатации
- Haier HSU-18HK03 Руководство по эксплуатации
- Haier HSU-20CK03 Руководство по эксплуатации

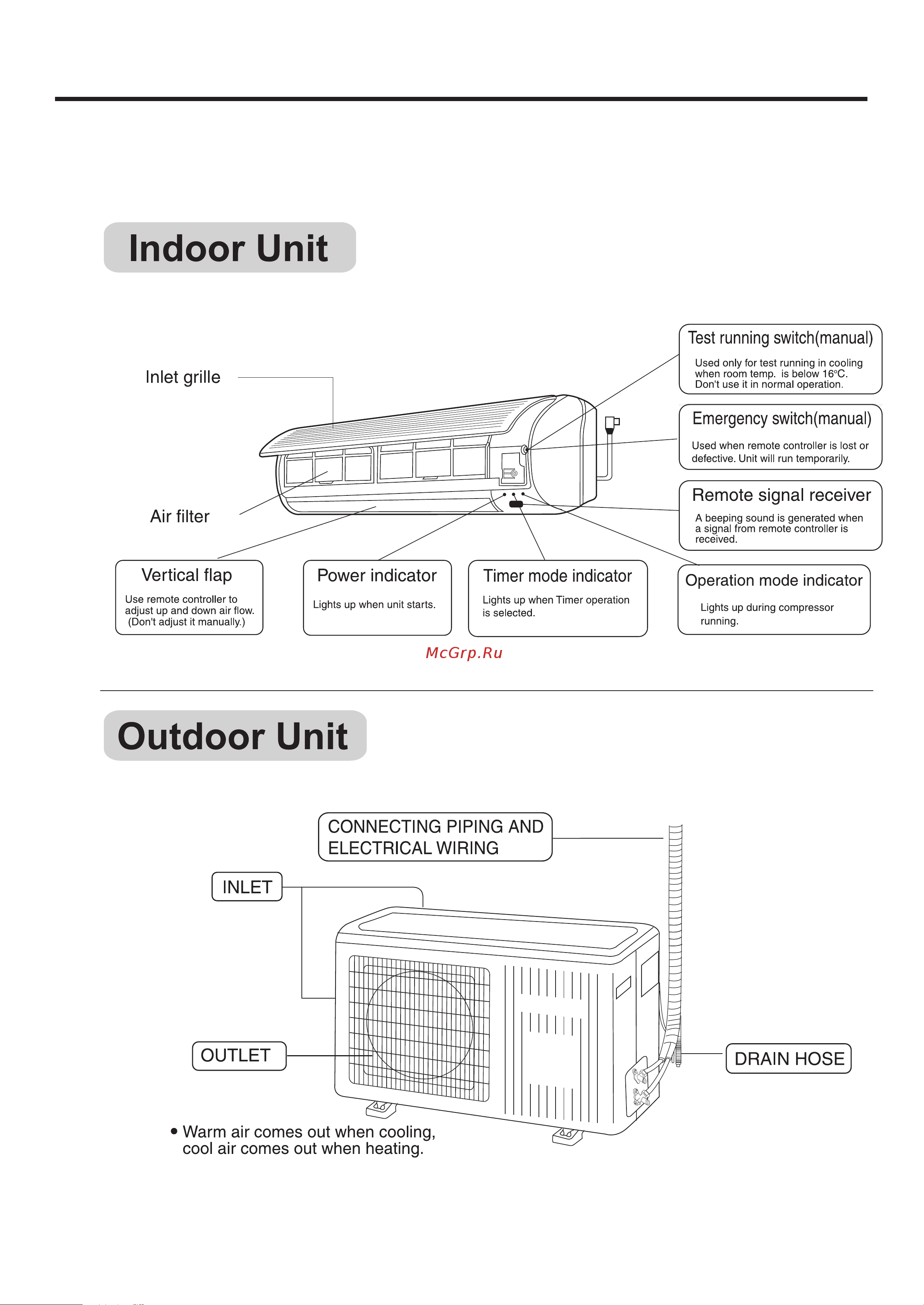

Description dimension and function of main components and accessories Description and function of main components and accessories Indoor Unit Test running switch manual Used only for test running in cooling when room temp is below 16 C Don t use it in normal operation Inlet grille Emergency switch manual Used when remote controller is lost or defective Unit will run temporarily Remote signal receiver Air filter Vertical flap Use remote controller to adjust up and down air flow Don t adjust it manually A beeping sound is generated when a signal from remote controller is received Power indicator Lights up when unit starts Timer mode indicator Lights up when Timer operation is selected Operation mode indicator Lights up during compressor running Outdoor Unit DRAIN HOSE
