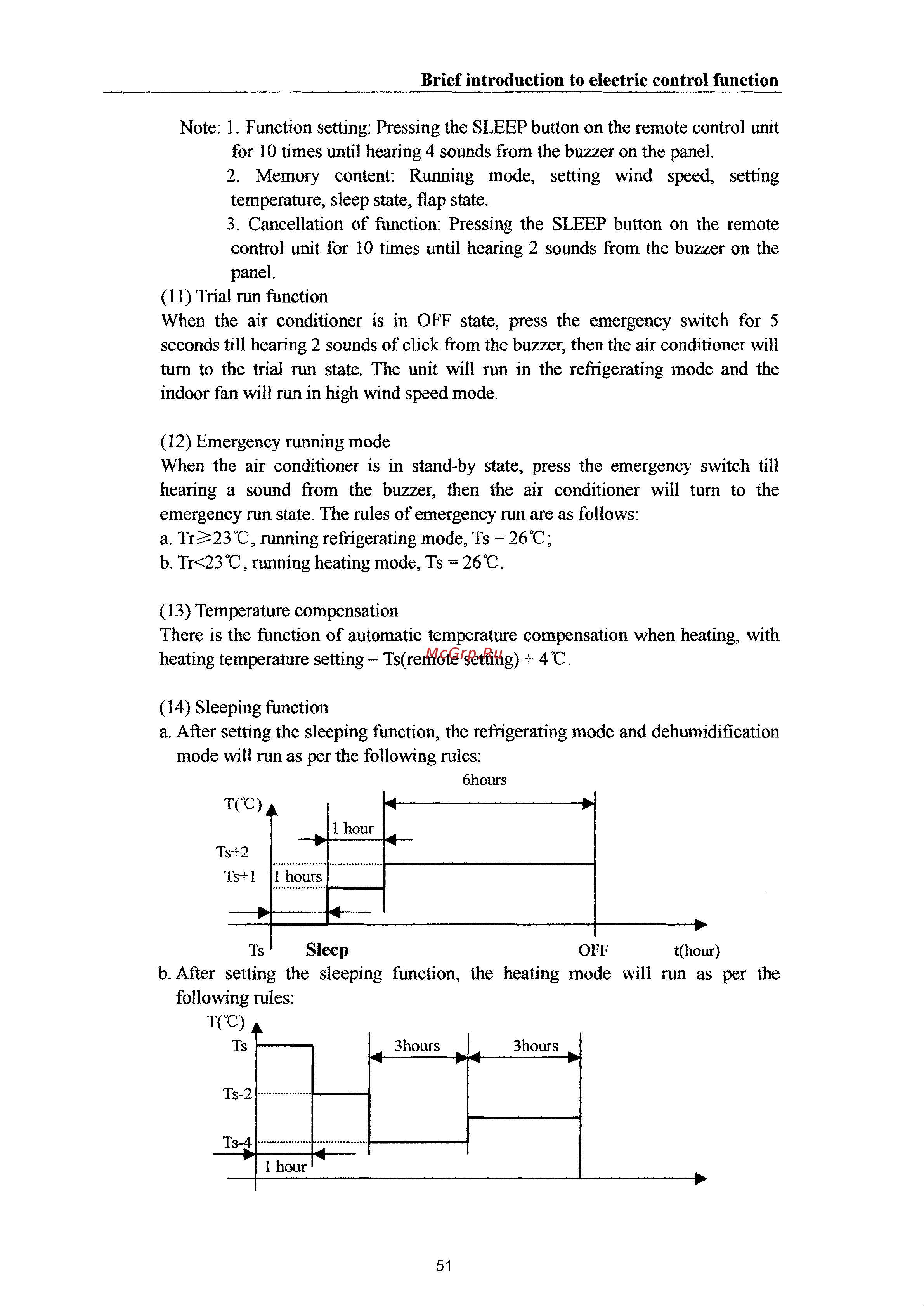

Brief introduction to electric control function Note 1 Function setting Pressing the SLEEP button on the remote control unit for 10 times until hearing 4 sounds from the buzzer on the panel 2 Memory content Running mode setting wind speed setting temperature sleep state flap state 3 Cancellation of function Pressing the SLEEP button on the remote control unit for 10 times until hearing 2 sounds from the buzzer on the panel 11 Trial run function When the air conditioner is in OFF state press the emergency switch for 5 seconds till hearing 2 sounds of click from the buzzer then the air conditioner will tum to the trial run state The unit will run in the refrigerating mode and the indoor fan will run in high wind speed mode 12 Emergency running mode When the air conditioner is in stand by state press the emergency switch till hearing a sound from the buzzer then the air conditioner will tum to the emergency run state The rules of emergency run are as follows a Tr 523O running refrigerating mode Ts 260 b Tr 23O running heating mode Ts 260 13 Temperature compensation There is the function of automatic temperature compensation when heating with heating temperature setting Ts remote setting 40 14 Sleeping function a After setting the sleeping function the refrigerating mode and dehumidification mode will run as per the following rules 6hours T C 1 hour Ts 2 Ts 1 1 hours Sleep Ts OFF b After setting the sleeping function the heating mode will run as per the following rules T C Ts 3hours 3hours Ts 2 Ts 4 1 hour 51 t hour
