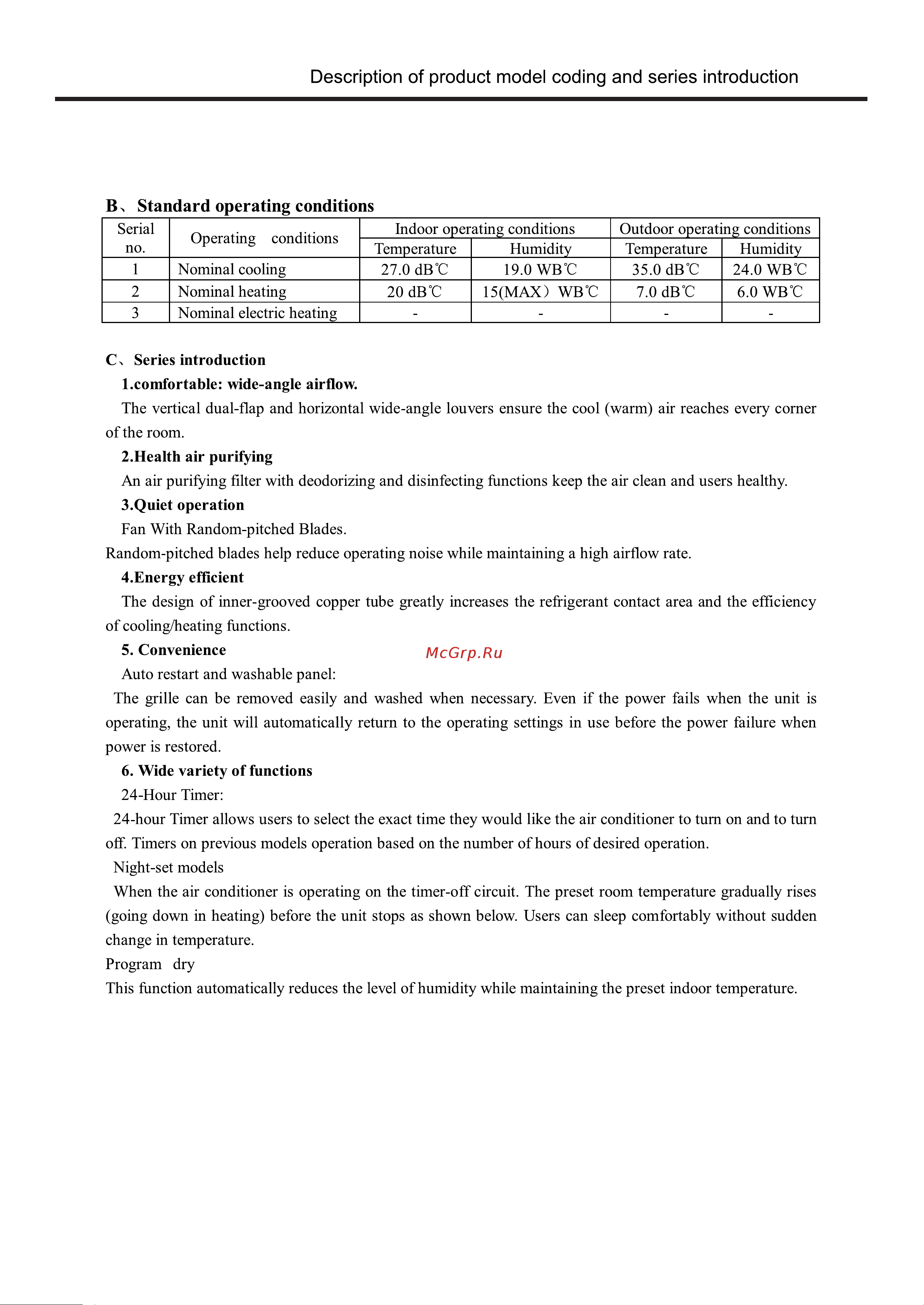

Description of product model coding and series introduction B Standard operating conditions Serial no Operating conditions Indoor operating conditions Temperature Outdoor operating conditions Humidity Temperature Humidity 1 Nominal cooling 27 0 dB C 19 0 WB C 35 0 dB C 24 0 WB C 2 Nominal heating 20 dB C 15 MAX WB C 7 0 dB C 6 0 WB C 3 Nominal electric heating C Series introduction 1 comfortable wide angle airflow The vertical dual flap and horizontal wide angle louvers ensure the cool warm air reaches every comer of the room Z Health air purifying An air purifying filter with deodorizing and disinfecting functions keep the air clean and users healthy 3 Quiet operation Fan With Random pitched Blades Random pitched blades help reduce operating noise while maintaining a high airflow rate 4 Energy efficient The design of inner grooved copper tube greatly increases the refrigerant contact area and the efficiency of cooling heating functions 5 Convenience Auto restart and washable panel The grille can be removed easily and washed when necessary Even if the power fails when the unit is operating the unit will automatically return to the operating settings in use before the power failure when power is restored 6 Wide variety of functions 24 Hour Timer 24 hour Timer allows users to select the exact time they would like the air conditioner to turn on and to turn off Timers on previous models operation based on the number of hours of desired operation Night set models When the air conditioner is operating on the timer off circuit The preset room temperature gradually rises going down in heating before the unit stops as shown below Users can sleep comfortably without sudden change in temperature Program dry This function automatically reduces the level of humidity while maintaining the preset indoor temperature 4
