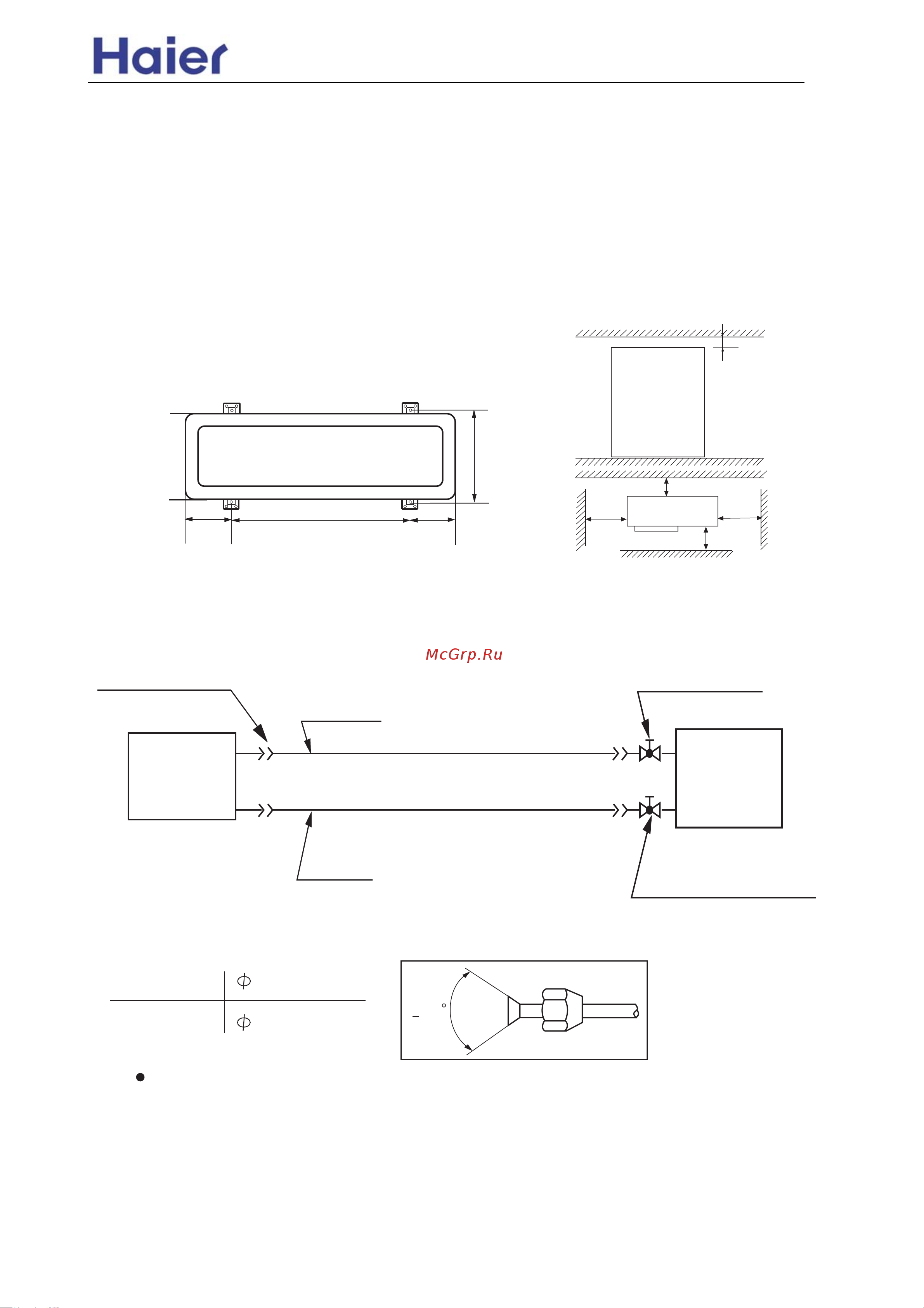

Installation Space
Installation where the area with strong winds.
Install the unit so that the air outlet section of the unit must NOT be faced
toward wind direction.
Piping size
Connect the flare nuts to the pipes, and then flare the pipes.
Gas pipe
15.88x1.0mm
Liquid pipe
9.52x0.8mm
90+0.5
Outline piping
Refrigerant piping
Outdoor
unit
Gas pipe
Liquid
pipe
Flare connection
Indoor
unit
3-way stop valve
2-way stop valve
Commercial Air Conditioner Model: HPU-42CV03
HPU-42HV03
over 30cm
over 10cm
over 10cm
over 15cm
over 60cm
Installation procedures
Display of whole unit
Installation of outdoor unit
190
380
190
580
Try to bring the packed unit to the installation place.
When it is inevitable to unpack the unit, be careful not to damage the unit. Wrap it with
nylon etc.
After unpacking, be sure to put it with the front side of the unit facing up.
Note: When delivering, don't hold plastic
parts like inlet and outlet grill etc.
Fixing of the unit
Fix outdoor unit using M10 bolt to concrete floor horizontally.
If installed on the wall or on top of a roof, bracket should be fixed securely to
resist earthquake or storms.
Use rubber pad during installation against unit vibration.
Installation dimension of outdoor unit(mm)
