5. Installation Instructions

5.1 Outdoor unit installation

Necessary Tools:

1.Screwdriver

2.Hacksaw

3.70mm diameter hole drill

4.Spanner(dia.17,27mm)

5.Spanner(dia.14,17,27mm)

6.Pipe cutter

7.Flaring tool

8.Knife

9.Nipper

10.Gas leakage detector

or soap water

11.Tape measure

12.Reamer

13.Refrigerant oil

Installation Position

●Place strong enough to support the unit weight, and will not cause vibration and noise.

●Place where discharged air and noise do not cause interference to the neighbors, and is sufficiently

ventilated.

●Place where is less affected by rain or direct sunlight and sea breeze.

●Place with enough space to ventilation

●The unit cannot be installed on an unspecified metal frame

●It shall not be less than 2.5m high from the ground to the unit if installed close to the street

●Easy for maintenance

Fixing of the unit

1.Position of the wall hole

The hole through the wall must be decided as per installation place and pipe direction. Please refer to the

installation drawings.

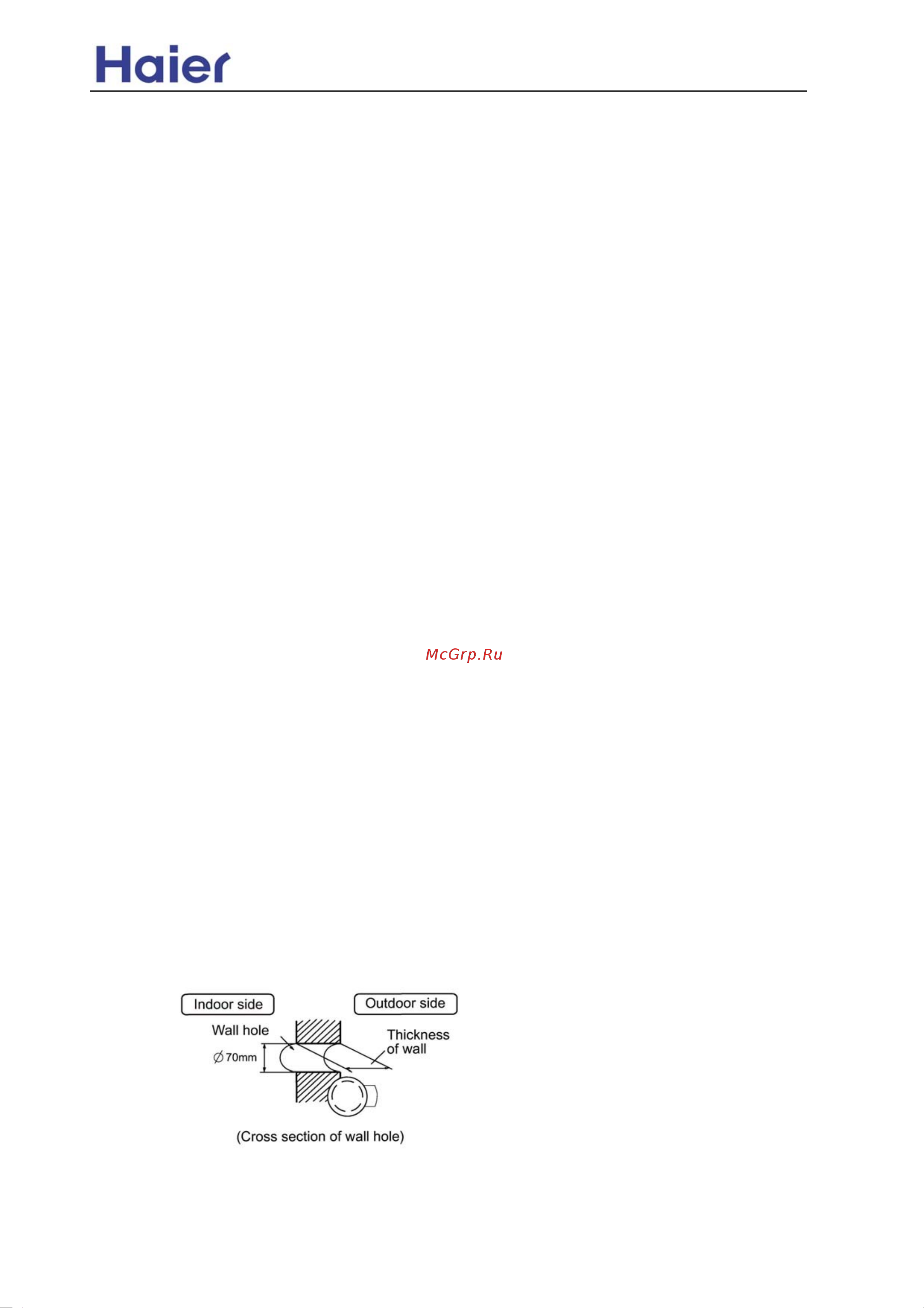

2. Making the wall hole

Drill a hole of 120*70mm with a little slope to the exterior through the wall as follows:

Commercial Air Conditioner Model: HPU-42CV03

HPU-42HV03
