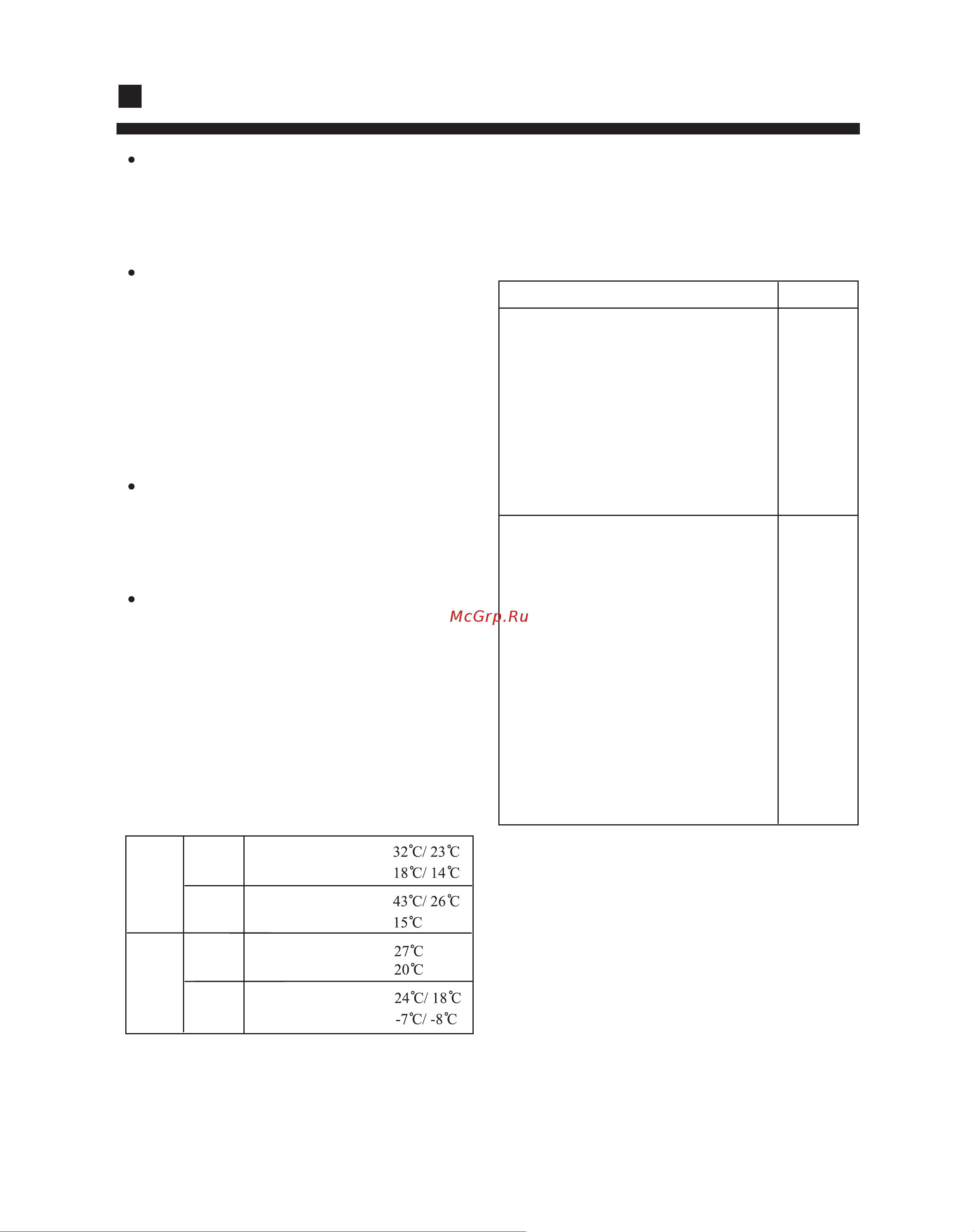

CAUTIONS
4. The wiring method should be in line with
the local wiring standard.
5. The power cable and connecting cable are
self-provided. The requirement of the power
cable:
The connecting cable should be
H05RN-
F 4G 0.75mm.
All the cables shall have got the European
authentication certificate.
6. The breaker of the air conditioner should
be all-pole switch; and the distance between
its two contacts should be no less 3mm. Such
means for disconnection must be
incorporation in the fixed wiring.
7. The waste battery shall be disposed
properly.
8. The indoor unit installation height is at
least 2.5m.
2
All electrical repairs must be carried out
by qualified electricians. Inadequate repairs
may result in a major source of danger for
the user of the air conditoiner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air conditioner's
tubes with sharp or pointed items, crushing
or twisting any tubes, or scraping the
coatings off the surfaces. If the refrigerant
spurts out and gets into eyes, it may result
in serious eye injuries.
Do not obstruct or cover the ventilation
grille of the air conditioner. Do not put
fingers or any other things into the
inlet/outlet and swing louver.
Do not allow children to play with the air
conditioner. In no case should children be
allowed to sit on the outdoor unit.
Specifications
The refrigerating circuit is leak-proof.
1. Applicable ambient temperature range:
The machine is adaptive in following
situation
Cooling
Heating
Indoor
Maximum:
Minimum:
D.B / W.B
D.B / W.B
D.B
Outdoor
Maximum:
Minimum:
D.B
D.B
Indoor
Maximum:
Minimum:
D.B
Outdoor
Maximum:
Minimum:
D.B / W.B
AB242ACAAA
AU242AHABA
(HBU-24H03)
AB242ACNAA
AU242AHNBA
(HBU-24CA03/R1)
AB242ACBAA
AU242AHBBA
(HBU-24HA03/R1)
AB284ACMAA
AU284AHMAA
(HBU-28C13)
AB42NACMCA
AU42NAIMBA
(HBU-42CD03)
AB42NACBBA
AU42NAIBBA
(HBU-42HC03/R1)
AB28NACBAA
AU28NAHBAA
(HBU-28HB03/R1)
AB28NACMAA
AU28NAHMAA
(HBU-28CD03)
AB36NACAAA
AU36NAIAAA
(HBU-36H03)
AB42NACACA
AU42NAIACA
(HBU-42HD03)
AB42NACNAA
AU42NAINAA
(HBU-42CA03/R1)
AB28NACNAA
AU28NAHNAA
(HBU-28CB03/R1)
AB36NACMAA
AU36NAIMCA
(HBU-36C03)
AB36NACBAA
AU36NAIBBA
(HBU-36HA03/R1)
AB36NACNAA
AU36NAINBA
(HBU-36CA03/R1)
Model
H07RN-F
5G 2.5mm
2
AB282ACACA
AU282AHADA
(HBU-28HD03)
AB282ACNAA
AU282AHNAA
(HBU-28CA03/R1)
AB282ACBBA
AU282AHBDA
(HBU-28HC03/R1)
H07RN-F
3G 4.0mm
2
2. If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agentor a similar qualified person.
3. If the fuse on PC board is broken please
change it with the type of T. 3.15A /250VAC.
D.B / W.B
