Haier HSU-09HEA03/(BP) [13/38] Wiring diagrams
![Haier HSU-09HEA03/(BP) [13/38] Wiring diagrams](/views2/1809670/page13/bgd.png)
HSU-09/12HEA03/(BP)

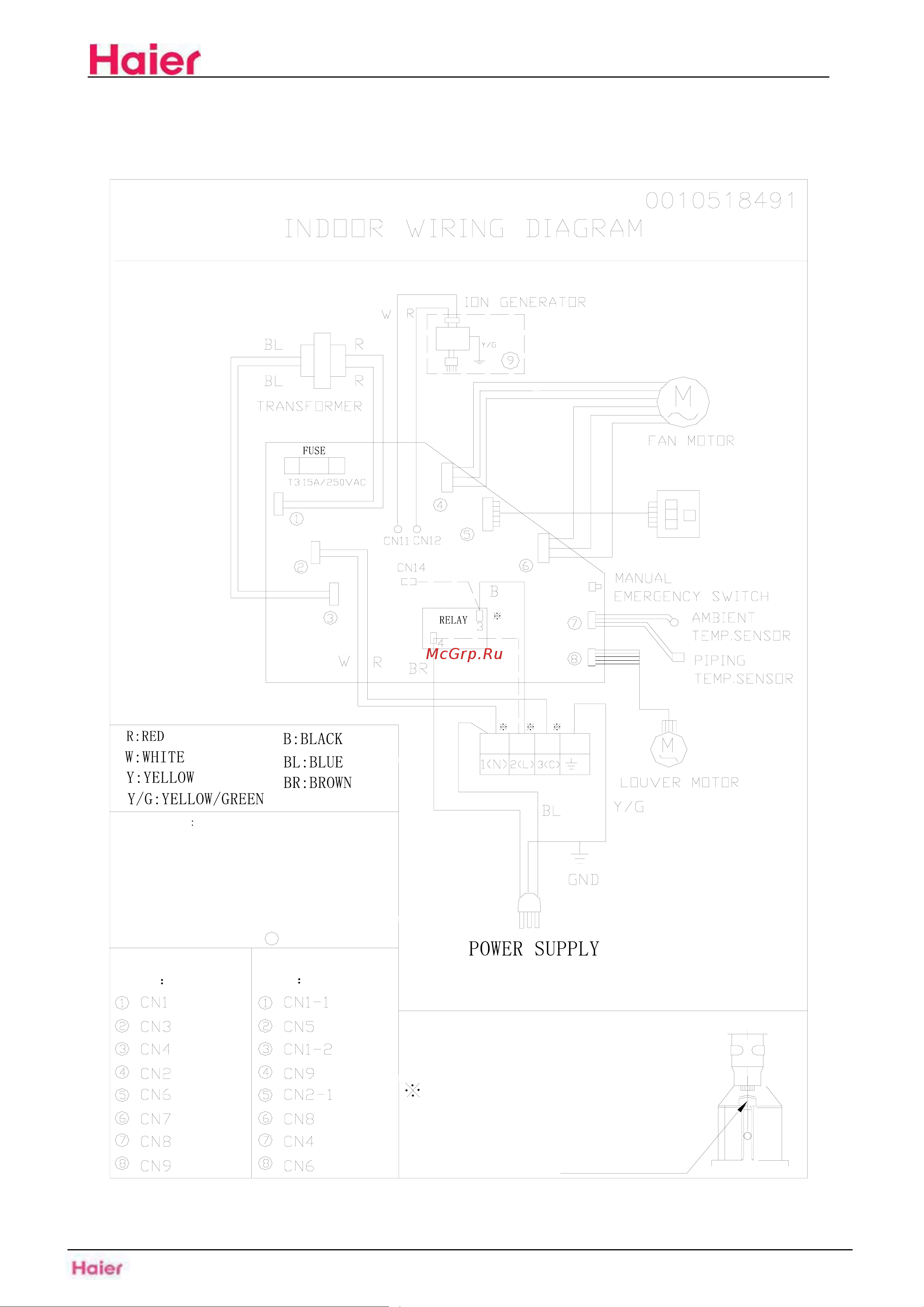

8.Wiring Diagrams
INDOORUNIT
For PCB without
relay
For PCB with
relay
Line 2
Line 1
9
ATTENTION
For PCB with relay, there is no
line.For PCB without insert pin relay,
LINE 1
connection wire symbolized by dotted
"2(L)"
connection wire
directly
block,at the same time,LINE 2
connect
directly to "CN14"
RECEIVER
DISPLAY
LOCK CATCH
REMOVAL OF THE SOCKET CONNECTOR
Socket connector marked with
has lock catch,when removing,
press the lock catch and pull
it backward
connected to
in the terminal
Dotted line frame
is optional.
Wiring diagrams
Domestic air conditioner
