Sc&t HE20E [2/3] Led instruction

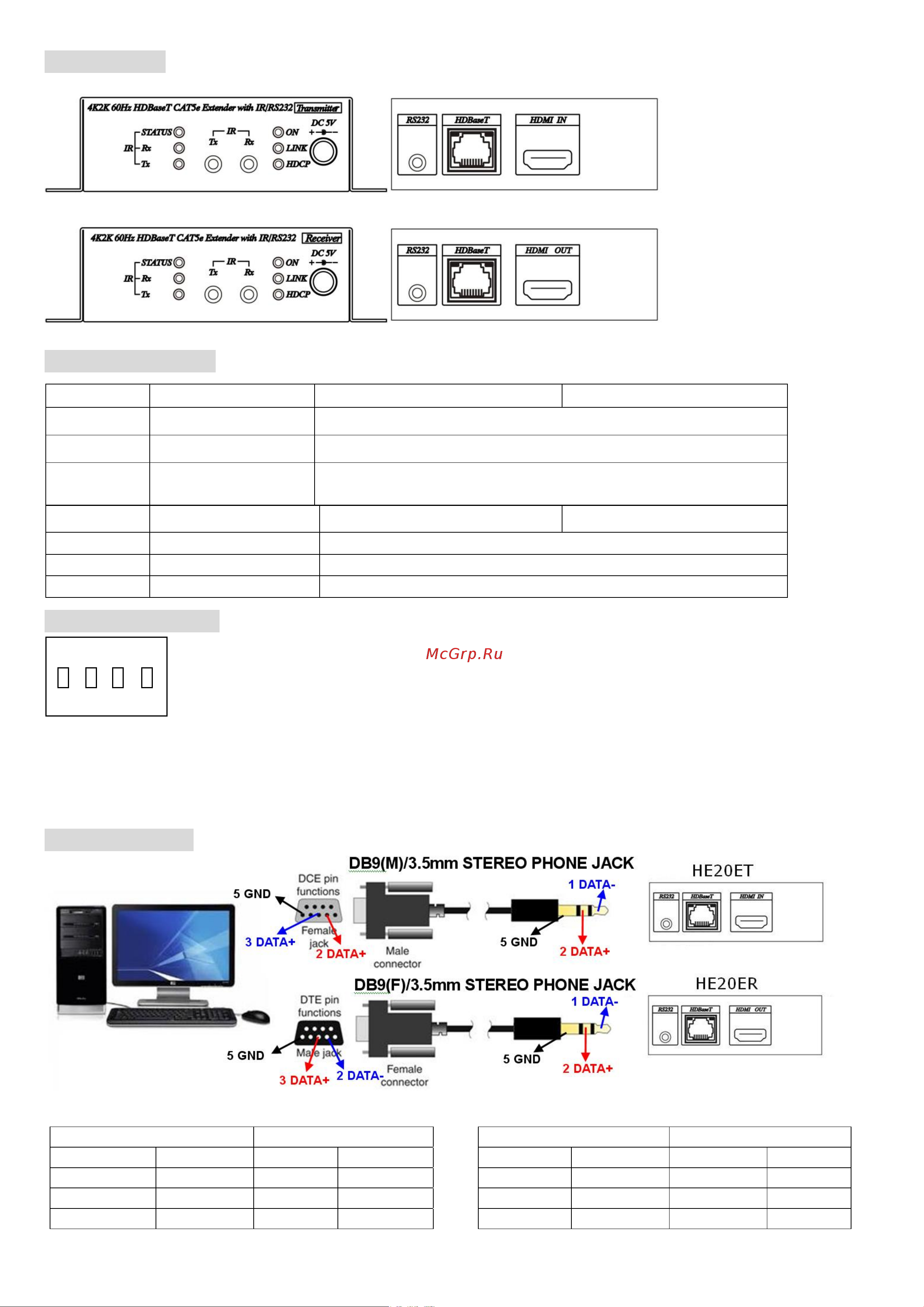

![Sc&t HE20E [2/3] Led instruction](/views2/1809741/page2/bg2.png)
2
Panel view:
HE20ET
HE20ER
LED Instruction:
Switch Function:
1. RS232 ON : Firmware Update , OFF : Normal
2. LINK MODE ON : Low Power , OFF : Long Reach
3. IR MODE ON : Polarity Reverse , OFF : Normal
4. IR RX TYPE ON : OEM , OFF : Reserve
RS232 Define:
DB9(M)/3.5mm STEREO PHONE JACK DB9(F)/3.5mm STEREO PHONE JACK
Color
Status
HE20ET
HE20ER
GREEN
ON
ON: Power on
BLUE
LINK
ON: HDBaseT Linking
RED
HDCP
OFF: HDMI unlink, ON: HDCP enable , Flash: HDCP
disable
Color
Status
HE20ET
HE20ER
GREEN
STATUS
ON: IR Polarity Reverse (third party IR system)
BLUE
IR RX
ON: Receiving IR signal
RED
IR TX
ON: Sending IR signal
RS232
3.5 mm Phone Jack
RS232
3.5 mm Phone Jack
Footprint
Define
Footprint
Define
Footprint
Define
Footprint
Define
Pin 2
DATA+
Pin 1
DATA+
Pin 2
DATA-
Pin 1
DATA-
Pin 3
DATA-
Pin 2
DATA-
Pin 3
DATA+
Pin 2
DATA+
Pin 5
GND
Pin 3
GND
Pin 5
GND
Pin 3
GND
ON
1 2 3 4
