Tension adjustment of the door spring

●

Connection of drain hoses

●

Tension adjustment

of the door spring

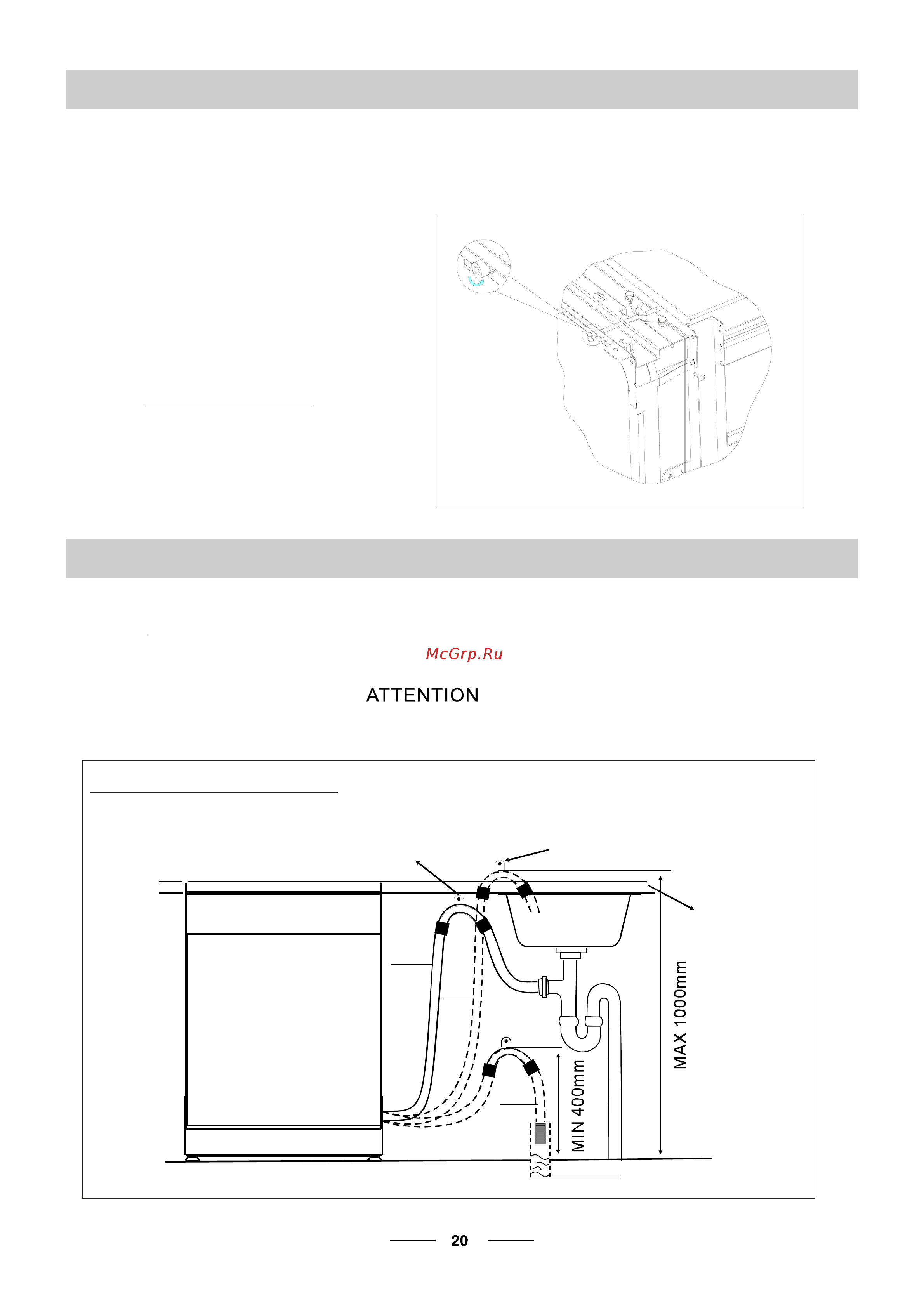

【】Figure5

The door springs are set at the factory to the proper tension for the outer door.

If a est het ic w ooden pane l a re i nstall ed, you w ill ha ve t o adj ust t he do or spr ing

tension. Rotate the adjusting screw to drive the adjustor to strain or relax the

steel cable(see figure 5).

relax

Adjust the door spring

tension until the door

remains balance in the

fully-opened position.

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it

runintothesink,makingsuretoavoidbendingorcrimpingit.Usethespeical

plastic support that comes with the appliance (figure 6).

to avoid the back flow of it. : The special plastic hose support must be

solidly fastened to the wall to prevent the drain hose from moving and allowing water

to spill outside the drain.

The top of the hose must be at

a height between 40 and 100cm. The free end of the hose must not be immersed in

water

Drain pipe connection

【】Figure6

φ 40mm

Counter

Front

Drain pipe

Drain hose hook

Close the drain hose hook to the c ounter

NOTE

The top of the hose

must be at a height

between

40 and 100cm.

The free end of the

hose must not be

immersed in water.
