- 7 -

7 Washing spray gun.

- Always wear safety gloves and shoes when using the washing spray gun. When using

possibly , ,

or anywhere where a spark may be struck.

flammable chemical products never direct the jet of the gun close to flames

towards any source of heat

1. Connect the washing spray gun to the compressor as explained in chapter 3.

2.Adjust working pressure to the value indicated for this accessory.

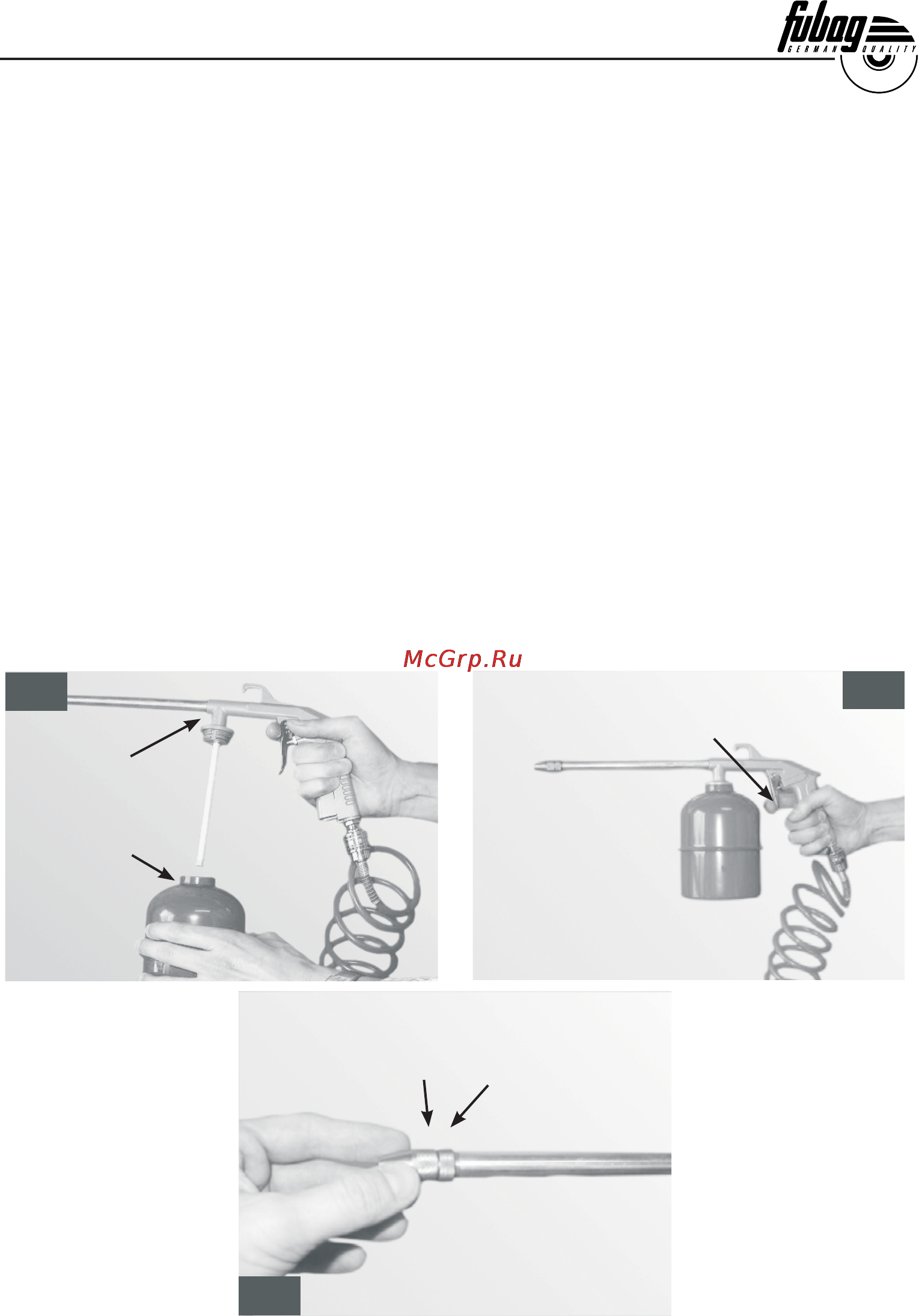

3. Unscrew cup A from the body of the gun B ( . ). Pour in the chemical product you intend to use

and refasten cupAto the body of the gun B ( . ).

4. To use the accessory, press lever C ( . ).

5. To adjust the jet, turn nozzle D which is secured by ring-nut E ( . ).

.,,.

fig 1

fig 2

fig 3

The material to be sprayed may have to be diluted The dilution formula should be obtained from

the Manufacturer If the product is too dense it may block the nozzle preventing use

- When filling the cup with the material used for washing keep this in a vertical position to avoid

spillage

- The washing spray gun is also very useful for spraying disinfectants insecticides and plant care

products
