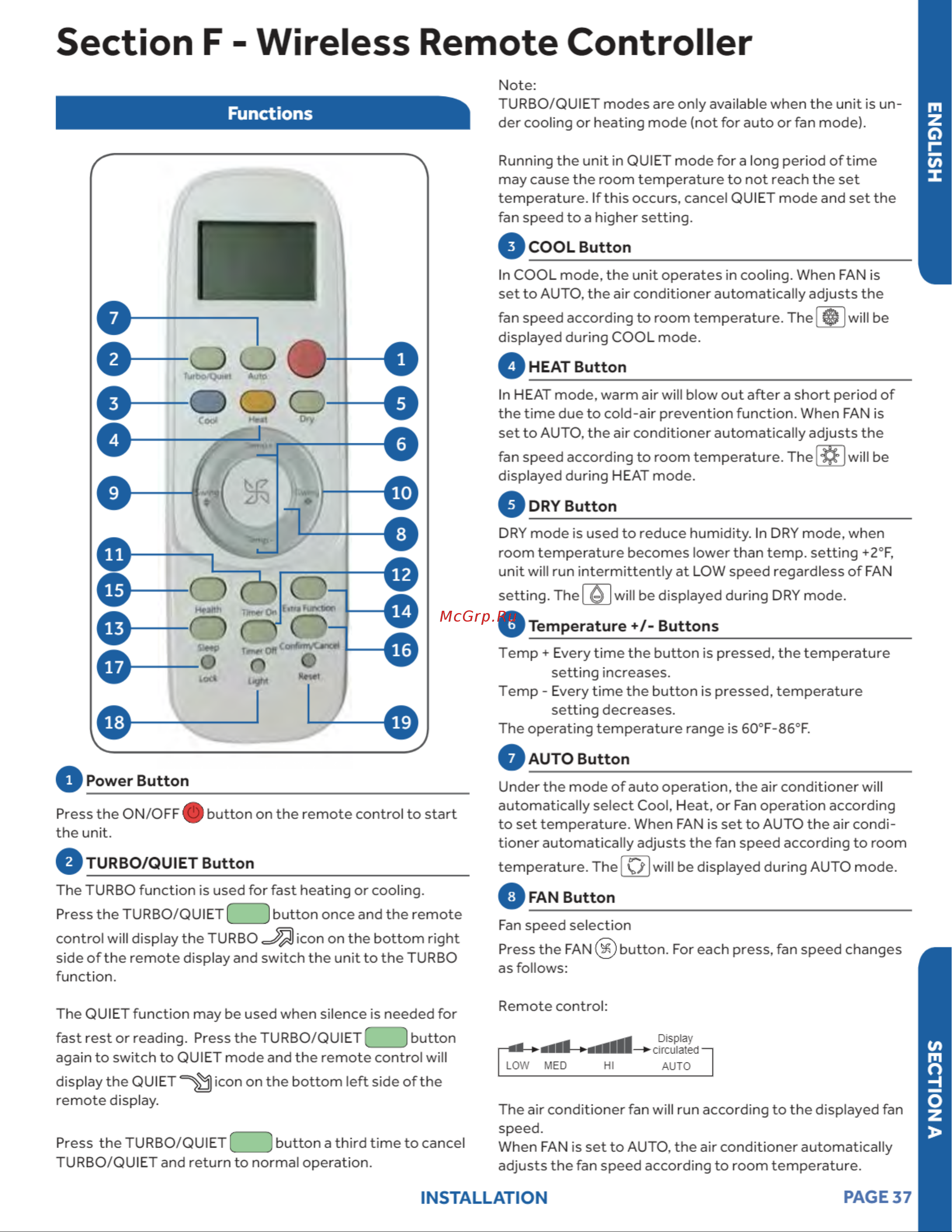

Section F Wireless Remote Controller Functions ENGLISH Note TURBO QUIET modes are only available when the unit is un der cooling or heating mode not for auto or fan mode Running the unit in QUIET mode for a long period of time may cause the room temperature to not reach the set temperature If this occurs cancel QUIET mode and set the fan speed to a higher setting COOL Button I In COOL mode the unit operates in cooling When FAN is set to AUTO the air conditioner automatically adjusts the fan speed according to room temperature The will be displayed during COOL mode Q HEAT Button In HEAT mode warm air will blow out after a short period of the time due to cold air prevention function When FAN is set to AUTO the air conditioner automatically adjusts the fan speed according to room temperature The will be displayed during HEAT mode DRY Button DRY mode is used to reduce humidity In DRY mode when room temperature becomes lower than temp setting 2 F unit will run intermittently at LOW speed regardless of FAN setting The will be displayed during DRY mode Temperature Buttons Temp Everytime the button is pressed the temperature setting increases Temp Everytime the button is pressed temperature setting decreases The operating temperature range is 6O F 86 F AUTO Button Under the mode of auto operation the air conditioner will automatically select Cool Heat or Fan operation according to set temperature When FAN is set to AUTO the air condi tioner automatically adjusts the fan speed according to room Press the ON OFF button on the remote control to start the unit QTURBO QUIET Button temperature The f The TURBO function is used for fast heating or cooling Press the TURBO QUIET will be displayed during AUTO mode FAN Button button once and the remote control will display the TURBO icon on the bottom right side of the remote display and switch the unit to the TURBO function The QUIET function may be used when silence is needed for display the QUIET icon on the bottom left side of the remote display Press the TURBO QUIET button a third time to cancel TURBO QUIET and return to normal operation Press the FAN S button For each press fan speed changes j as follows fl Remote control r circulated i Display LOW MED HI AUTO The air conditioner fan will run according to the displayed fan speed When FAN is set to AUTO the air conditioner automatically adjusts the fan speed according to room temperature INSTALLATION PAGE 37 SECTION A fast rest or reading Press the TURBO QUIET button again to switch to QUIET mode and the remote control will Fan speed selection
