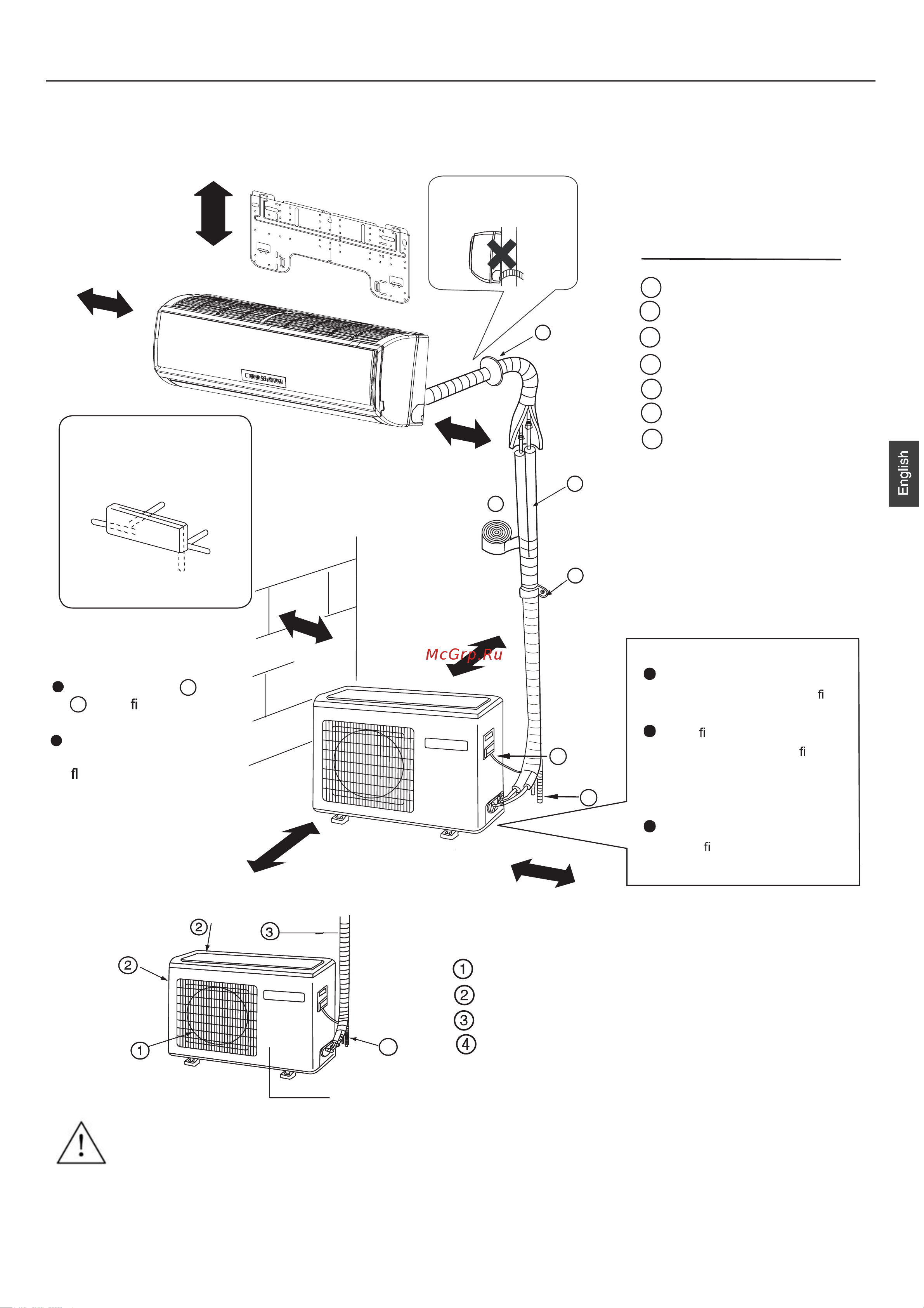

Indoor Outdoor Unit Installation Drawings The models adopt HFC free refrigerant R32 For installation of the indoor units refer to the installation manual which was provided with the units The diagram shows a wall mounted indoor unit Attention must be paid to the rising up of drain hose more than 15cm Optional parts for piping Non adhesive tape Adhesive tape C Saddle L S with screws more than 10cm Connecting electric cable for indoor and outdoor Drain hose Heating insulating material Arrangement of piping directions G Piping hole cover more than 10c m Fl Rear left Rear right Left Right Below more than 20cm more than 20cm Fixing of outdoor unit Fix the unit to concrete or block with bolts 10mm and nuts firmly The marks from A to in the figure are the parts numbers The distance between the indoor unit and the floor should be more than 2m and horizontally When fitting the unit to wall surface roof or rooftop fix a supporter surely with nails or wires in consideration of earthquake and strong wind If vibration may affect the AuuuuniWJ more than 60cm house fix the unit by attaching a vibration proof mat more than 25cm AIR OUTLET AIR INLET CONNECTING PIPING AND ELECTRICAL WIRING 4 DRAIN HOSE Compressor lnside of Unit If using the left side drain pipe make sure the hole is got through The above indoor and outdoor units picture is just for your reference Please be subject to the actual product purchased 12
