Haier 1U25S2SQ1FA [23/54] Select the place of installation satisfying the following conditions and at the same time obtain a consent from the client or user place where air circulates place free from heat radiation from other heat sources place where drain water may be discharged place where noise and hot air may not disturb the neighborhood place where there is not heavy snowfall in the winter time place where obstacles do not exist near the air inlet and air outlet place where the air outlet may not be exposed to a strong wind place surrounded at four sides are not suitable for installation a im or more of overhead space is needed for the unit avoid mounting guide louvers to the place where short circuit is a possibility when installing several units secure sufficient suction space to avoid short circuiting

Haier 1U25S2SQ1FA [23/54] Select the place of installation satisfying the following conditions and at the same time obtain a consent from the client or user place where air circulates place free from heat radiation from other heat sources place where drain water may be discharged place where noise and hot air may not disturb the neighborhood place where there is not heavy snowfall in the winter time place where obstacles do not exist near the air inlet and air outlet place where the air outlet may not be exposed to a strong wind place surrounded at four sides are not suitable for installation a im or more of overhead space is needed for the unit avoid mounting guide louvers to the place where short circuit is a possibility when installing several units secure sufficient suction space to avoid short circuiting



Model W D H L1 L2 L3
1U25S2SQ1FA 780 290 597 500 130/150 317
1U35S2SQ1FA 780 290 597 500 130/150 317
1U50S2SR1FA 890 353 697 628 130 355.5
1U71S2SR1FA 890 353 697 628 130 355.5
1U25BEFFRA 780 245 540 500 140 256
1U35BEFFRA 780 245 540 500 140 256
1U50JEFFRA 820 338 614 590 114.2 324
1U68REFFRA 890 353 697 628 130 355.5
1U25S2PJ1FA 820 338 614 590 114 324
1U35S2PJ1FA 820 338 614 590 114 324
1U25S2SM1FA 800 280 550 510 130 313
1U35S2SM1FA 800 280 550 510 130 313
1U50S2SJ2FA 820 338 614 590 114 324




Содержание

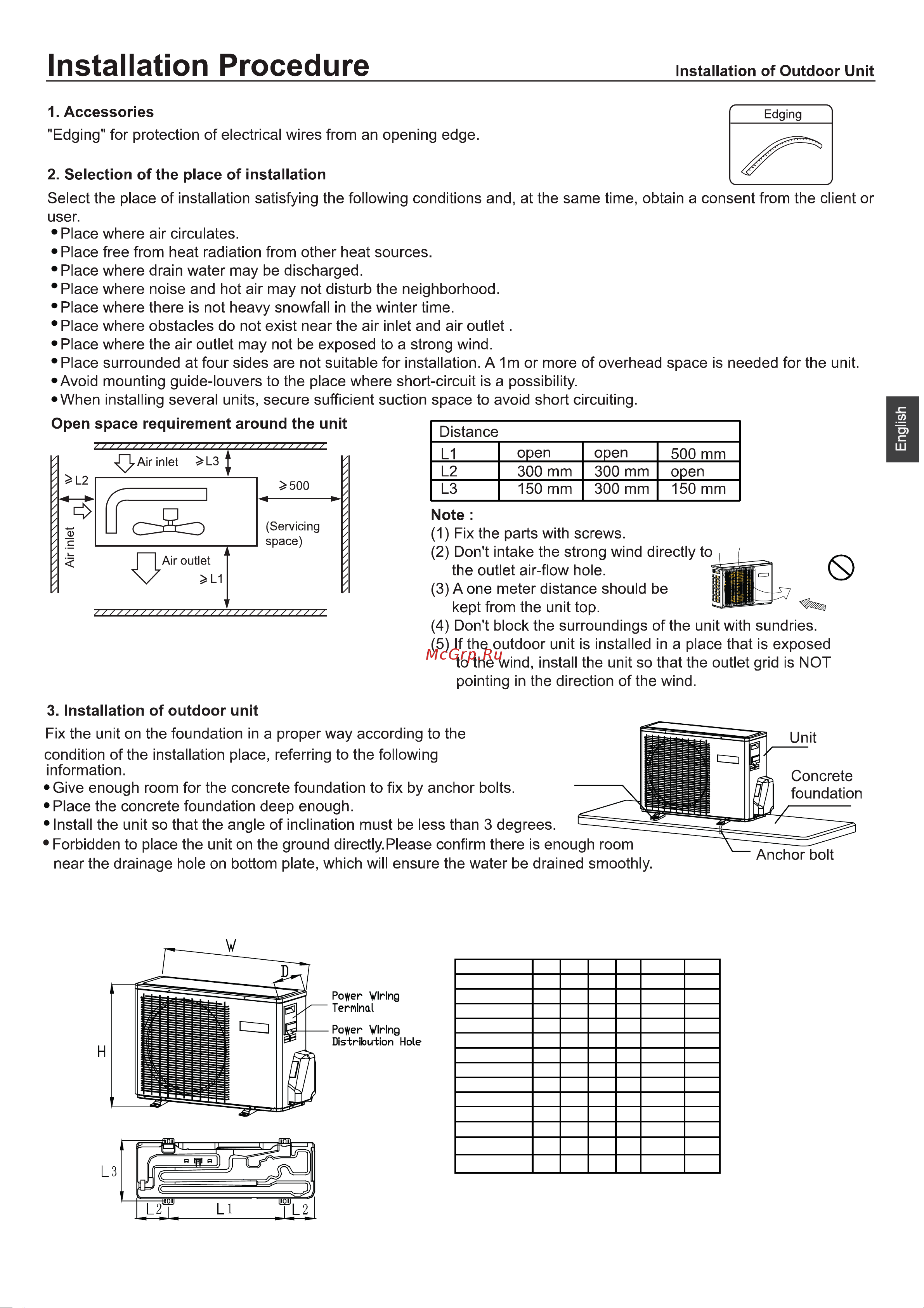

Installation Procedure Installation of Outdoor Unit 1 Accessories Edging for protection of electrical wires from an opening edge 2 Selection of the place of installation Open space requirement around the unit English Select the place of installation satisfying the following conditions and at the same time obtain a consent from the client or user Place where air circulates Place free from heat radiation from other heat sources Place where drain water may be discharged Place where noise and hot air may not disturb the neighborhood Place where there is not heavy snowfall in the winter time Place where obstacles do not exist near the air inlet and air outlet Place where the air outlet may not be exposed to a strong wind Place surrounded at four sides are not suitable for installation A Im or more of overhead space is needed for the unit Avoid mounting guide louvers to the place where short circuit is a possibility When installing several units secure sufficient suction space to avoid short circuiting Distance L1 L2 L3 open open 300 mm 150 mm 300 mm 300 mm 500 mm open 150 mm Note 1 Fix the parts with screws NO 2 Don t intake the strong wind directly to the outlet air flow hole Air outlet 3 A one meter distance should be Wind direction kept from the unit top 4 Don t block the surroundings of the unit with sundries 5 If the outdoor unit is installed in a place that is exposed to the wind install the unit so that the outlet grid is NOT pointing in the direction of the wind 3 Installation of outdoor unit Fix the unit on the foundation in a proper way according to the Unit condition of the installation place referring to the following information Give enough room for the concrete foundation to fix by anchor bolts Place the concrete foundation deep enough Install the unit so that the angle of inclination must be less than 3 degrees Cushion rubber Concrete foundation Forbidden to place the unit on the ground directly Please confirm there is enough room Anchor bolt near the drainage hole on bottom plate which will ensure the water be drained smoothly 4 lnstallation dimension Unit mm Model L1 L2 1U25S2SQ1FA W 780 D 290 H 597 500 130 150 L3 1U35S2SQ1FA 780 290 597 500 130 150 317 1U50S2SR1 FA 890 353 697 628 130 355 5 1U71S2SR1FA 890 353 697 628 130 355 5 1U25BEFFRA 780 245 540 500 140 256 1U35BEFFRA 780 245 540 500 140 256 1U50JEFFRA 820 338 614 590 114 2 324 1U68REFFRA 890 353 697 628 130 355 5 1U25S2PJ1FA 820 338 614 590 114 324 1U35S2PJ1FA 820 338 614 590 114 324 1U25S2SM1FA 800 280 550 510 130 313 1U35S2SM1FA 800 280 550 510 130 313 1U50S2SJ2FA 820 338 614 590 114 324 317 20
