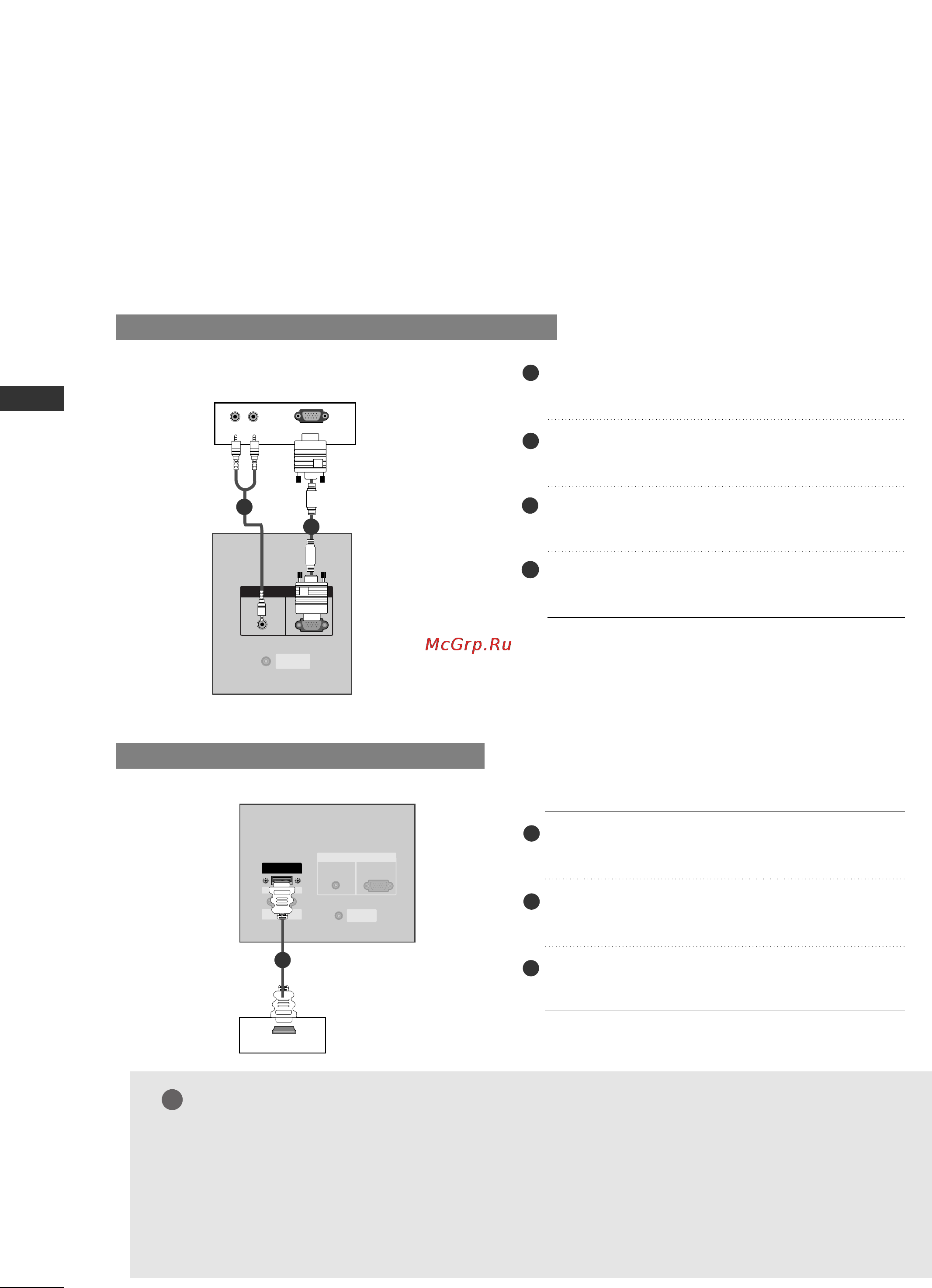

CONNECTIONS & SETUP
22
CONNECTIONS & SETUP
■
This set can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if
you do receive Digital signals from a digital set-top box or other digital external device, refer to the figure
as shown below.
STB(SET-TOP BOX) SETUP
When connecting with a D-sub 15 pin cable
Connect the RGB output of the digital set-top
box to the
RRGGBB IINN ((PPCC//DDTTVV))
jack on the set.
Connect the audio outputs of the set-top box
to the
AAUUDDIIOO ((RRGGBB//DDVVII))
jack on the set.
Turn on the digital set-top box. (Refer to the
owner’s manual for the digital set-top box.)
Select
RRGGBB
input source with using the
IINNPPUUTT
button on the remote control.
ANTENNA
IN
AV IN 4
L/MONO
R
AUDIO
VIDEO
(R) AUDIO (L)
RGB-DTV OUTPUT
ANTENNA
IN
( )
AUDIO
VIDEO
S-VIDEO
AV IN 3
AV 1
AV 2
( )
AUDIO
VIDEO
S-VIDEO
AV IN 3
( )
AUDIO
VIDEO
S-VIDEO
AV IN 3
COMPONENT IN
VIDEO
AUDIO
CONTROL IN
REMOTE
RGB IN
RGB
(PC/DTV)
AUDIO
(RGB/DVI)
DDiiggiittaall
SSeett--ttoopp
BBooxx
When connecting with a HDMI cable
Connect the HDMI output of the digital set-
top box to the
HHDDMMII//DDVVII IINN
jack on the set.
Select
HHDDMMII//DDVVII
input source with using the
IINNPPUUTT
button on the remote control.
Turn on the digital set-top box. (Refer to the
owner’s manual for the digital set-top box.)
DDiiggiittaall SSeett--ttoopp BBooxx
GG
Set can receive the video and audio signal simultaneously with using a HDMI cable.
GG
If the digital set-top box supports Auto HDMI function, output resolution of the digital set-top
box will be automatically set to 1280x720p.
GG
If the digital set-top box does not support Auto HDMI, you need to set the output resolution
appropriately. To get the best picture quality, adjust the output resolution of the digital set-top
box to 1280x720p.
ANTENNA
IN
AV IN 4
L/MONO
R
AUDIO
VIDEO
HDMI OUTPUT
ANTENNA
IN
( )
AUDIO
VIDEO
S-VIDEO
AV IN 3
AV 1
AV 2
( )
AUDIO
VIDEO
S-VIDEO
AV IN 3
( )
AUDIO
VIDEO
S-VIDEO
AV IN 3
HDMI/
DVI IN
RS-232C IN
(CONTROL
& SERVICE)
RGB IN
RGB
(PC/DTV)
AUDIO
(RGB/DVI)
CONTROL IN
REMOTE
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB
(PC/DTV)
NOTE
!
44
1
2
3
1
2
1
2
3
1
