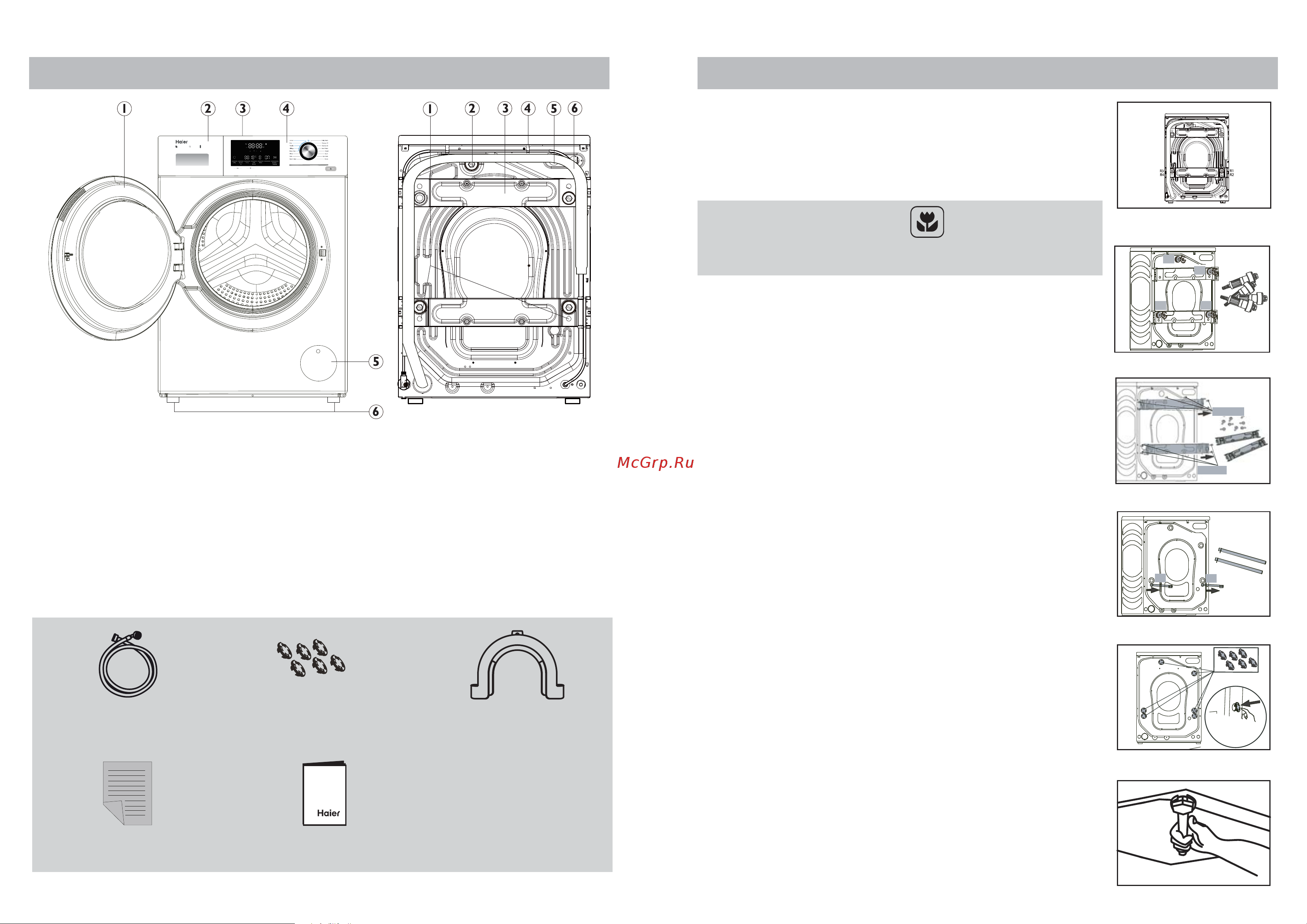

6
Installation
Production description
Preparation
Remove all packaging material including polystyrene
base. While opening the package, water drops may be
seen on plastic bag and porthole. This is normal as a
result from water tests and quality control in the factory.
Removing the transportation bolts
The transportation bolts are designed for clamping
antivibration components inside the appliance during
transportation.
1. Remove all 4 bolts (T1 -T4).
2. Remove screws (R1-R10 ) on the rear side and take out
reinforcements (S1 and S2) f rom the machine.
Keep the transportation bolts in a sa fe place for later
use. If the machine is to be moved to another location,
replace transportation bolts contrariwise to prevent
damage.
3. Pull out the 2 iron bars I1 and I2.
4. Fill the transportation bolt holes with blanking plugs.
T1
T4
T3
T2
I1
R5
R6
R7
R8
S1
S2
S2
R1-R4
S1
R5-R10
I1
I2
General information and tips:
Note: Packaging disposal:
Keep all packaging material out of children’s reach and
dispose them in an environmentally friendly manner.
5. Adjust all feet to achieve a complete level position.
This will minimi ze vibrations and thus noise during use.
It will also reduce wear and tear. We
recommend to
stable and flat as possible.
use a spirit level for adjustment. Floor should be as
1. Door
2. Detergent/Softener drawer
3. Worktop
4. Control panel
5. Pump filter cover
6. Adjustable feet
1. Iron bar
2. Transportation bolts
3. Rear wall reinforcement
4. Power cord
5. Water inlet valve
6. Drain hose
Accessories
Check the accessories and literature in accordance with this list.
Inlet hose
assembly
Warranty-card
6 blanking plugs
User manual
Drain hose
bracket
Steam
STEAM PLUS
DIRECT MOTION
12kg
