Haier HWF12D1W1 [5/13] Detergent drawer

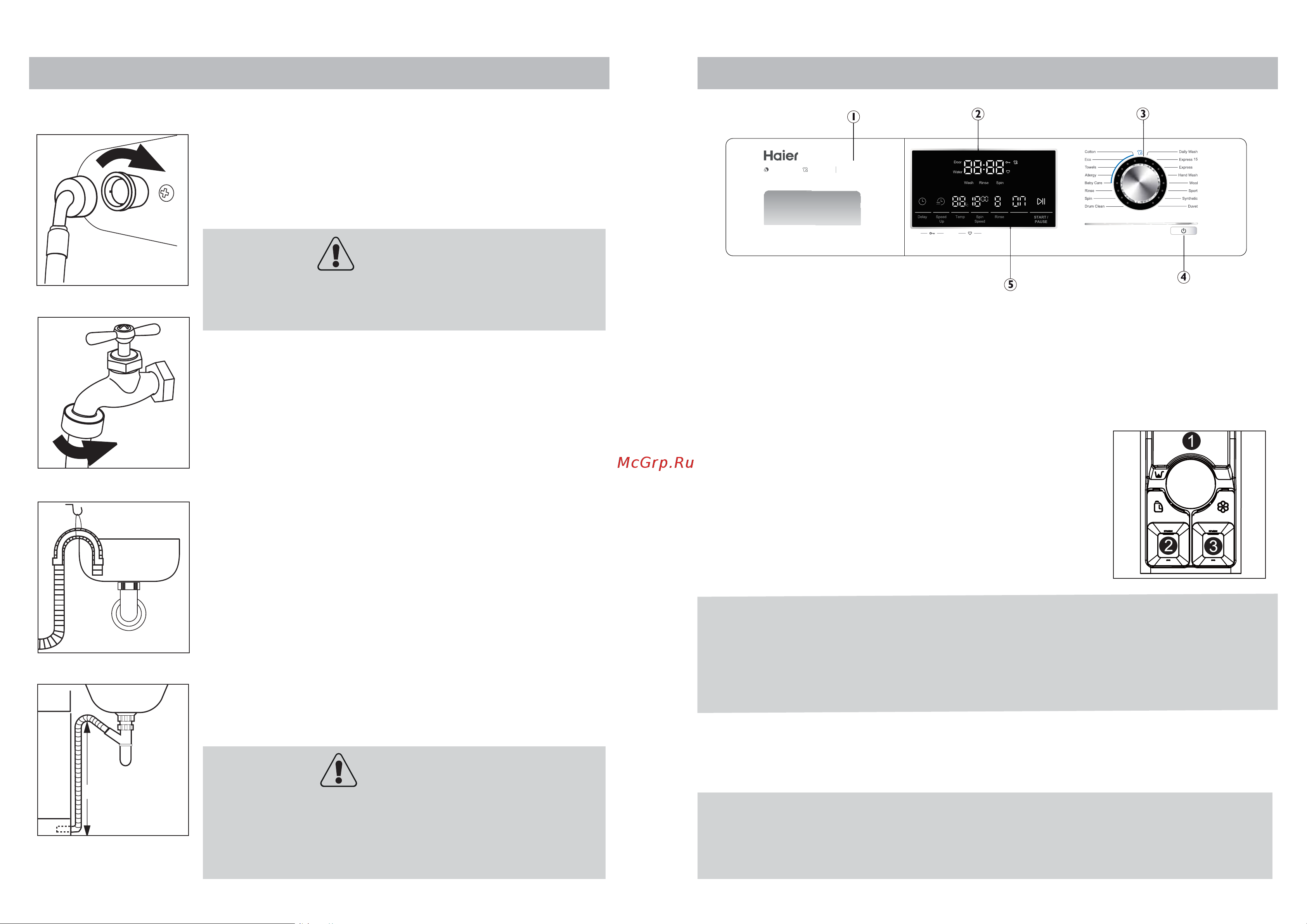

![Haier HWF12D1W1 [5/13] Detergent drawer](/views2/1813887/page5/bg5.png)
89
Installation
Control panel
1. Detergent/Softener drawer
2. Display
3. Programme selector
4. “On/Off” button
5. Function buttons (a-g)
a. Delay
b. Speed up
c. Temperature
d. Spin Speed
e. Rinse
f. Steam
g. Start/Pause
(a-g)
Open the drawer and you will see three compartments
Compartment 2: Detergent
Compartment 3: Softener, Conditioning agent etc.
Detergent drawer
The recommendation on the type of de tergents is
dependant on the various washing temperatures.
Please refer to the manual of de tergent.
Display
If the appliance is switched on, the display will illuminate and the current
status icons are visible. Refer to the following pages for details. If no buttons
or
the program selector is not touched the display will go dark after a short
while to save energy. If the program selector is turned, the display will
illuminate.
Programme selector
By turning the dial 1 of 16 programmes can be selected, related LED will light
up and its default settings will be displayed
“On/Off” button
Touch this button gently to switch on . The display will illuminate . Touch it
again for about 2 seconds to switch off. If no panel element or programme is
activated after a while, the machine will shut down automatically.
Compartment 1: Washing powder
Inlet hose
1. Connect inlet hose to the machine water inlet valve .
2. Connect inlet hose to a water tap.
3. Tighten inlet hose connections and turn on water
supply. Check for any water leaks. Stop all water
leaks before continuing with installation.
Warning!
Appliance is only qualified for cold water supply!
Use the hose-set supplied with the appliance. Old
hose-sets should not be reused.
Drain hose
Drainage could be installed in dif ferent ways.
Nevertheless, level of drain hose has to reach between
80-100 cm.
If possible always keep drain hose fixed to the clip at
the back of the applian ce.
Use the drain hose bracket to keep drain hose end retai-
ned and out of any water level.
Fix the bracket securely to avoid dropping due to oper-
ational movements.
1. Drain hose to sink
2. Drain hose to sink siphon
Connection has to be securely sealed and fixed to corr-
esponding adapter above the siphoning part!
80 - 100 cm
The drain hose should not be submerged in water and
should be securely fxed and leak-free. If the drain hose
is placed on the ground or if the pipe is at a height of
less than 80 cm, the washing machine will continuously
drain while being filled (self-siphoning).
Warning!
Steam
STEAM PLUS
DIRECT MOTION
12kg
30
